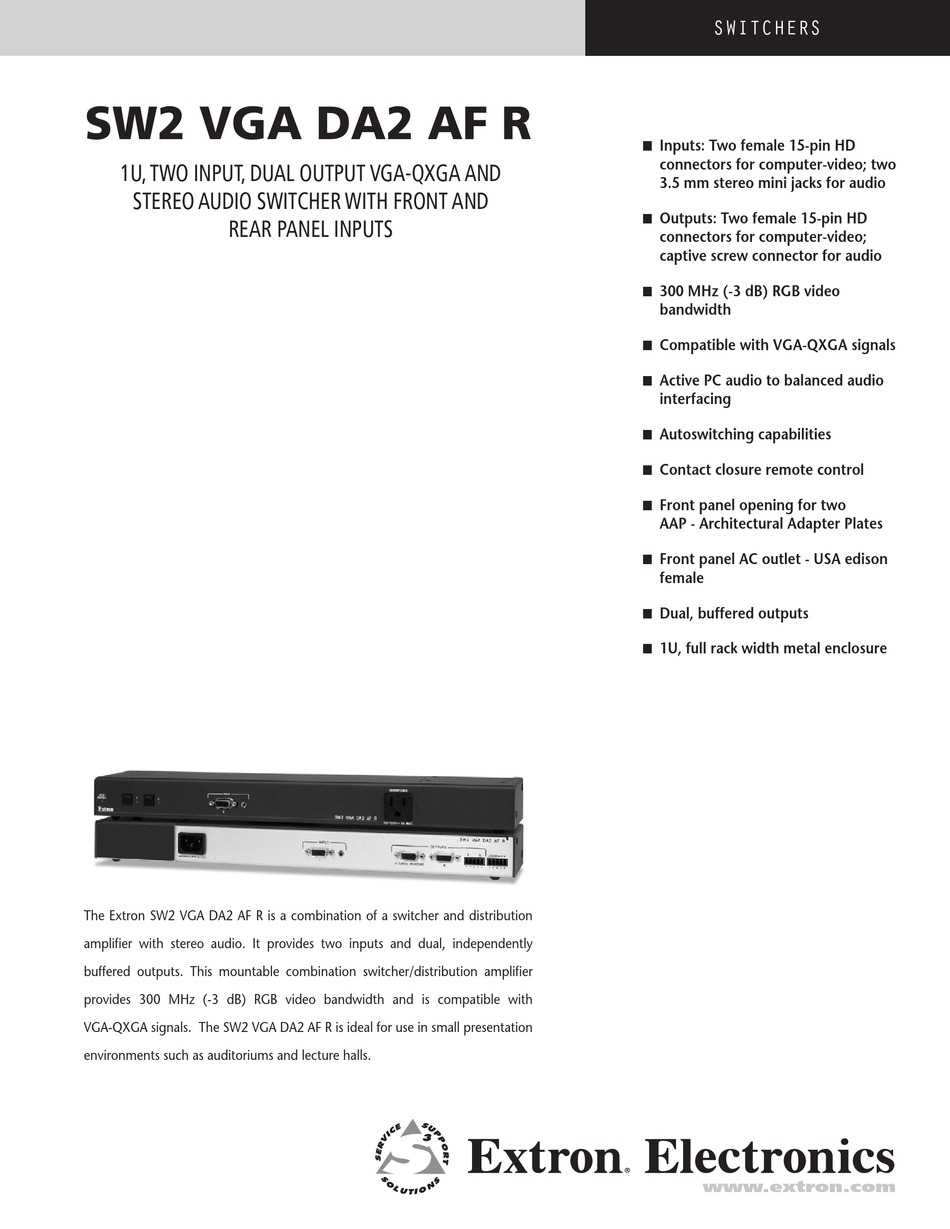

SW2 VGA DA2 AF R
1U, Two InpUT, DUal oUTpUT VGa-QXGa anD
STereo aUDIo SwITcher wITh FronT anD
rear panel InpUTS
The Extron SW2 VGA DA2 AF R is a combination of a switcher and distribution
amplifier with stereo audio. It provides two inputs and dual, independently
buffered outputs. This mountable combination switcher/distribution amplifier
provides 300 MHz (-3 dB) RGB video bandwidth and is compatible with
VGA-QXGA signals. The SW2 VGA DA2 AF R is ideal for use in small presentation
environments such as auditoriums and lecture halls.
SwitcherS
Inputs: Two female 15-pin HD
n
connectors for computer-video; two
3.5 mm stereo mini jacks for audio
Outputs: Two female 15-pin HD
n
connectors for computer-video;
captive screw connector for audio
300 MHz (-3 dB) RGB video
n
bandwidth
Compatible with VGA-QXGA signals
n
Active PC audio to balanced audio
n
interfacing
Autoswitching capabilities
n
Contact closure remote control
n
Front panel opening for two
n
AAP - Architectural Adapter Plates
Front panel AC outlet - USA edison
n
female
Dual, buffered outputs
n
1U, full rack width metal enclosure
n
www.extron.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics SW2 VGA DA2AF
Summary of Contents for Extron electronics SW2 VGA DA2AF
- Page 1 SW2 VGA DA2 AF R 1U, Two InpUT, DUal oUTpUT VGa-QXGa anD STereo aUDIo SwITcher wITh FronT anD rear panel InpUTS The Extron SW2 VGA DA2 AF R is a combination of a switcher and distribution amplifier with stereo audio. It provides two inputs and dual, independently buffered outputs.
-
Page 2: Specifications
DESCRIPTION The SW2 VGA DA2 AF R is a two-input, two output active switcher with stereo audio. It has both front and rear panel inputs as well as many other features, such as adaptable connectivity and mounting options and an internal international power supply with an unswitched, front panel A/C outlet, which make it an ideal one-box choice for professional presentation environments.
