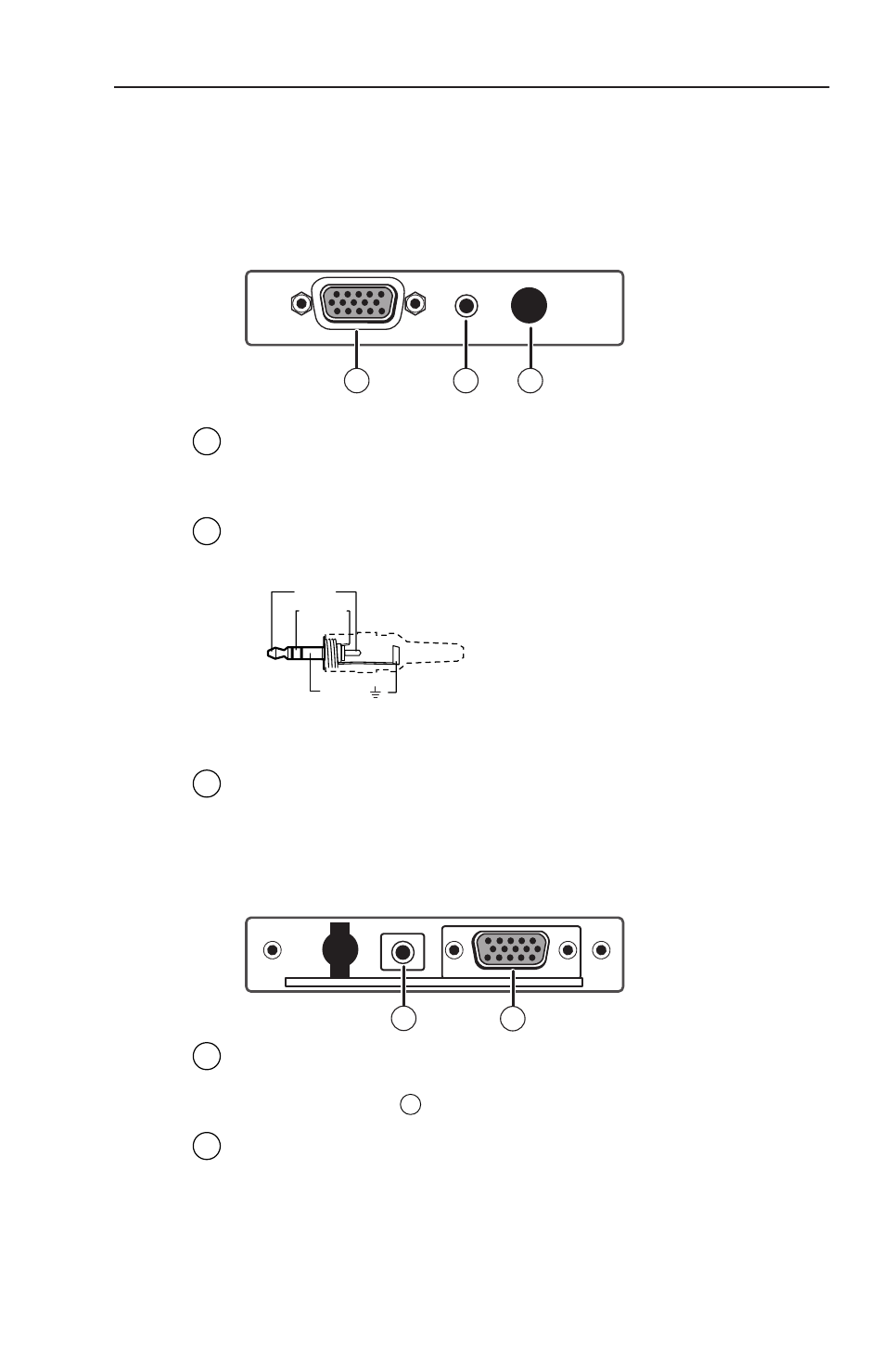

VSW I AAP interface

The VSW I AAP passive interface features a computer video
input and pass-through, an unbalanced stereo input and pass-
through, and an input select (Show Me) button.

Front panel features

Computer video input — Input VGA-UXGA, RGBHV, RGBS,
1
RGsB, RsGsBs, component video, or HDTV component video
through this 15-pin female VGA connector.
Audio input — Input unbalanced stereo audio through this
2
3.5 mm mini audio jack. See the wiring diagram below.
Tip (L)
Ring (R)
3.5 mm Stereo Plug Connector
(unbalanced)
Input select (Show Me) button — Pressing this button sends
3
a control signal to the connected switcher telling it to select the
current video and audio inputs. See the following section, "Rear
panel features".

Rear panel features

Audio pass-through — Output unbalanced stereo audio
1
through this 3.5 mm mini audio jack. See the previous section's
wiring diagram (
Computer video pass-through — Output VGA-UXGA,
2
RGBHV, RGBS, RGsB, RsGsBs, component video, or HDTV
component video through this 15-pin female VGA connector.
www.camboard.de Tel. 07131 911201
Fax 07131 911203
AUDIO
COMPUTER
1 2
Sleeve ( )
1
).
2
ce-info@camboard.de
VSW 2VGA A • Installation and Operation
SHOW ME
VSW I AAP
3
2
2-15
