Quick Start Guide — VSW 2VGA A

1inchQuarterRackVersaToolsShelf

To install and set up the Extron VSW 2VGA A switcher, follow these

steps and see the appropriate section of this manual for details:

Installation

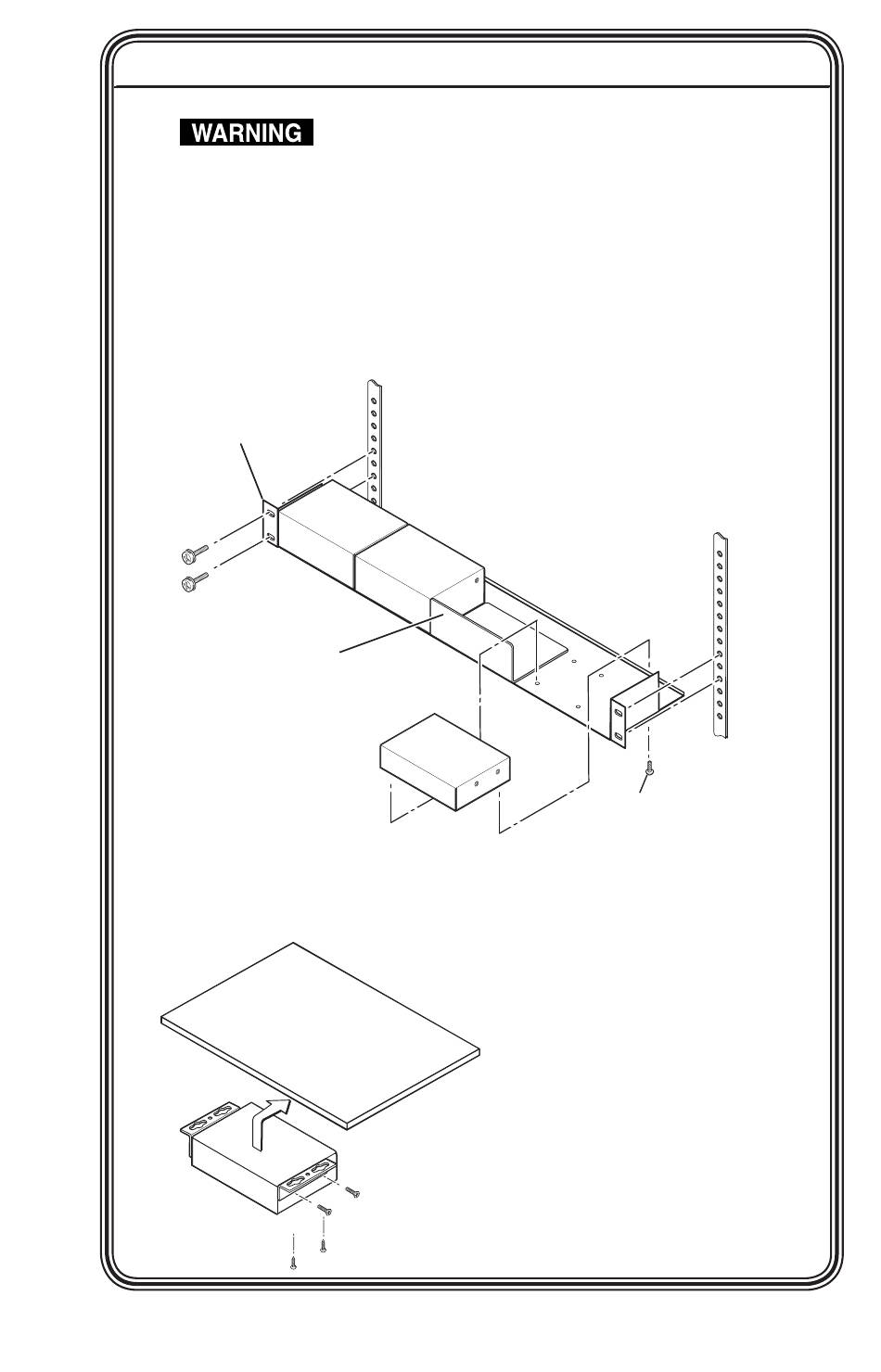

Mount the switcher (if applicable). The VSW 2VGA A can be

mounted in a rack shelf, under furniture, through furniture, or to a

projector mount. See chapter 2, Installation and Operation.

VersaTools Rack Shelf

1/4 Rack Width Front

False Faceplate

Use 2 mounting holes on

opposite corners.

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

Installation and service must be performed by authorized

personnel only.

Rack shelf mounting

Under-desk mounting

ce-info@camboard.de

VSW 2VGA A • Quick Start Guide

(2) 4-40 x 3/16"

Screws

QS-1
