3. Attach the switcher to the rack shelf using two 4-40 x 3/16"
machine screws. Insert the screws from the underside of
the shelf and securely fasten them into diagonally opposite
corners, as shown in figure 2-1.
VersaTools Rack Shelf
1/4 Rack Width Front
False Faceplate
Use 2 mounting holes on
opposite corners.

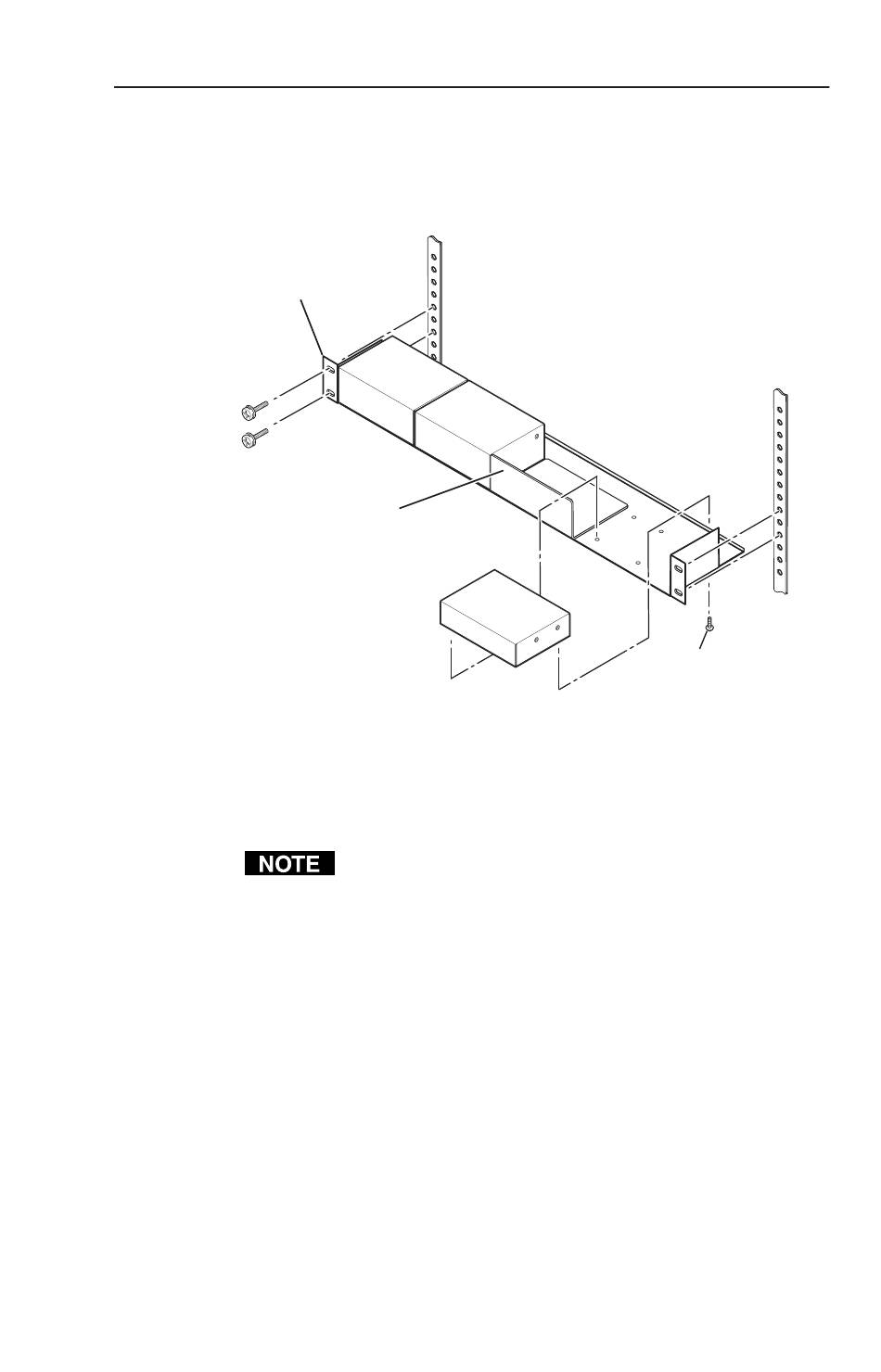

Figure 2-1 — Mounting the VSW 2VGA A on a
VersaTools rack shelf
www.camboard.de Tel. 07131 911201
Fax 07131 911203
1inchQuarterRackVersaToolsShelf
Since the switcher is 1.0" high, there will be a gap of
0.75" above the switcher.
ce-info@camboard.de
VSW 2VGA A • Installation and Operation
(2) 4-40 x 3/16"
Screws
2-3
