Drill holes in accordance with the measurements given.
1.
You must provide screws suitable for the surface on which you want to mount the FC 300. Retighten
2.
all four screws.
For installation of IP21/TYPE 1/IP4X top and bottom - see the Option Guide enclosed with the FC 300.
FC 300 IP20 allows side-by-side installation. Because of the need for cooling, there must be a minimum of
100 mm free air passage above and below the FC 300.

Electrical Installation

Connection to Mains and Earthing

NB!:
The plug connector for power can be
removed.
Make sure the FC 300 is properly earthed.
1.
Connect to earth connection (terminal 95). Use
screw from the accessory bag.
Place plug connector 91, 92, 93 from the
2.
accessory bag onto the terminals labelled MAINS
at the bottom of FC 300.
3. Connect mains wires to the mains plug
connector.
The earth connection cable cross section
must be at least 10 mm
wires terminated separately.
NB!:
Check that mains voltage corresponds to
the mains voltage of the FC 300 name
plate.
How to Install
2
or 2 rated mains

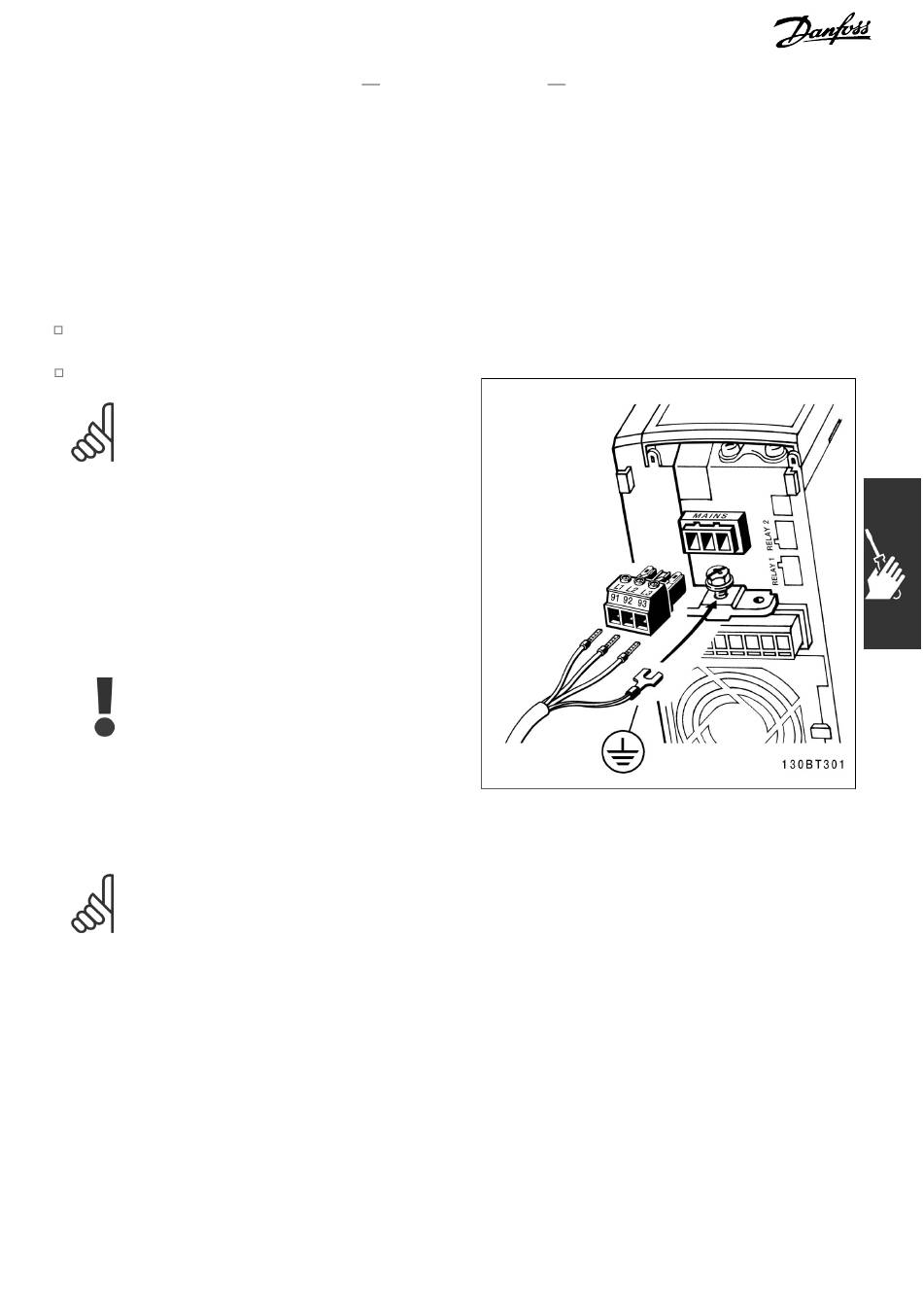

How to connect to mains and earthing.
MG.33.A2.02 - VLT is a registered Danfoss trademark
13
