INSTALLATION

CAUTION: To prevent electrostatic buildup and electrostatic damage to the
weigh system, install an electrostatic discharge strap to the truck chassis.
1

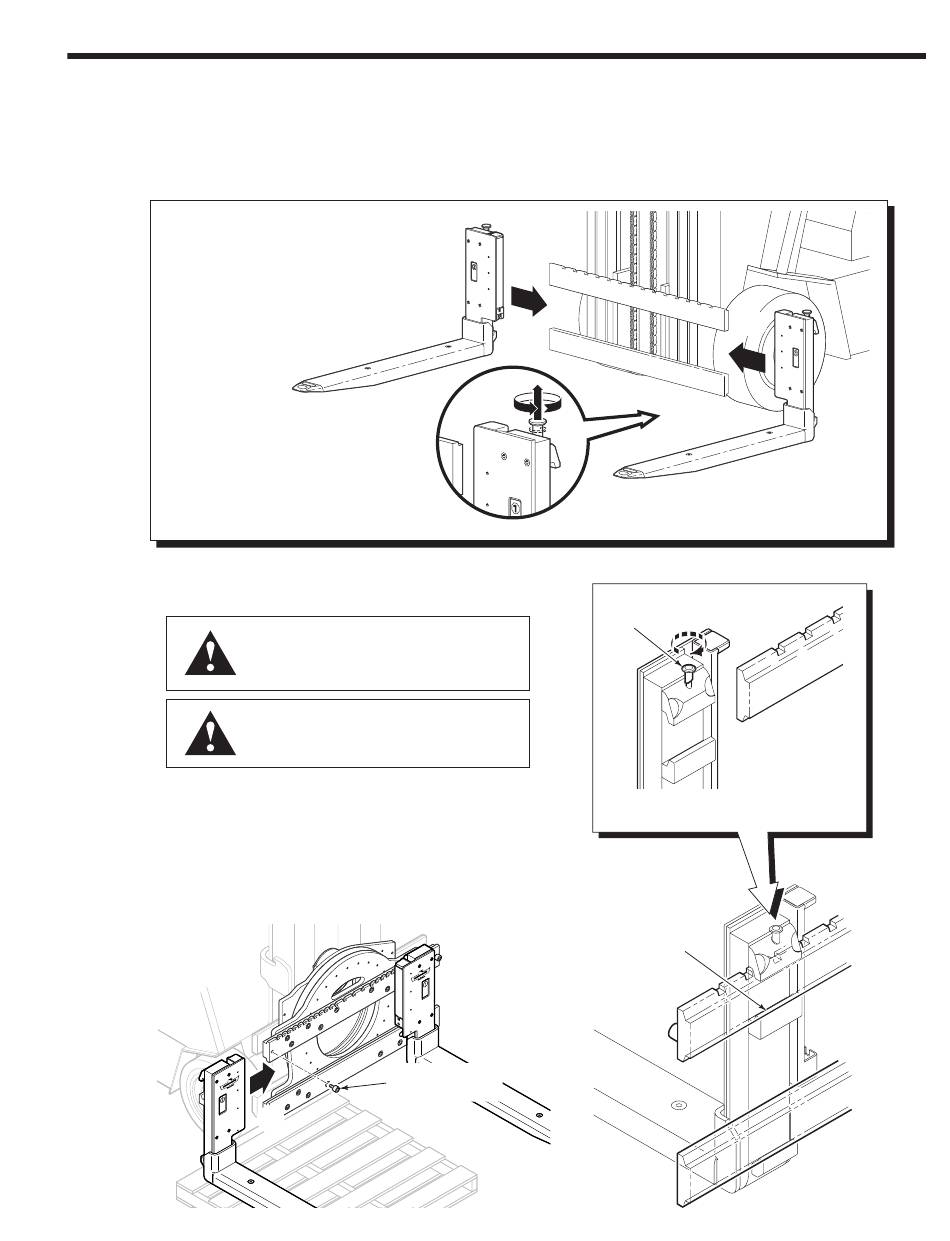

Install forks
STANDARD FORKS
IMPORTANT: Truck mast must be vertical.
A
Remove standard forks.
B
Unlock weigh forks.
C
Install weigh forks. Fork 1 must be
installed on the left (driver's view).
ROTATOR FORKS (with third hook)
Verify forks are rated for the loads being handled.
A
Rotate the carriage to the horizontal position. Remove
the fork keepers from the upper fork carriage bar.
B
Remove the standard rotator forks (if equipped).
C
Release the spring locks on top of the forks.
D
Slide the forks into position on the fork carriage bars.
NOTE: Sand or grind the hook tip, when the fork
middle hook fit is too tight.
8305557-R2
WARNING: Handle forks with care to
avoid pinching fingers or dropping on
feet.
WARNING: Forks require three hooks
on rotators. Weigh forks for rotators are
shipped with the middle hook installed.
A
Remove fork
keepers
D
C
B
IMPORTANT: Contact Cascade before
installing on fork positioner attachments.
Spring
Lock
Middle
Hook
FK0630.ai
C
FK0627.ai
C
Back (Driver's) View
FK0190.eps
