Cascade C Series User Manual page 10

INSTALLATION
7

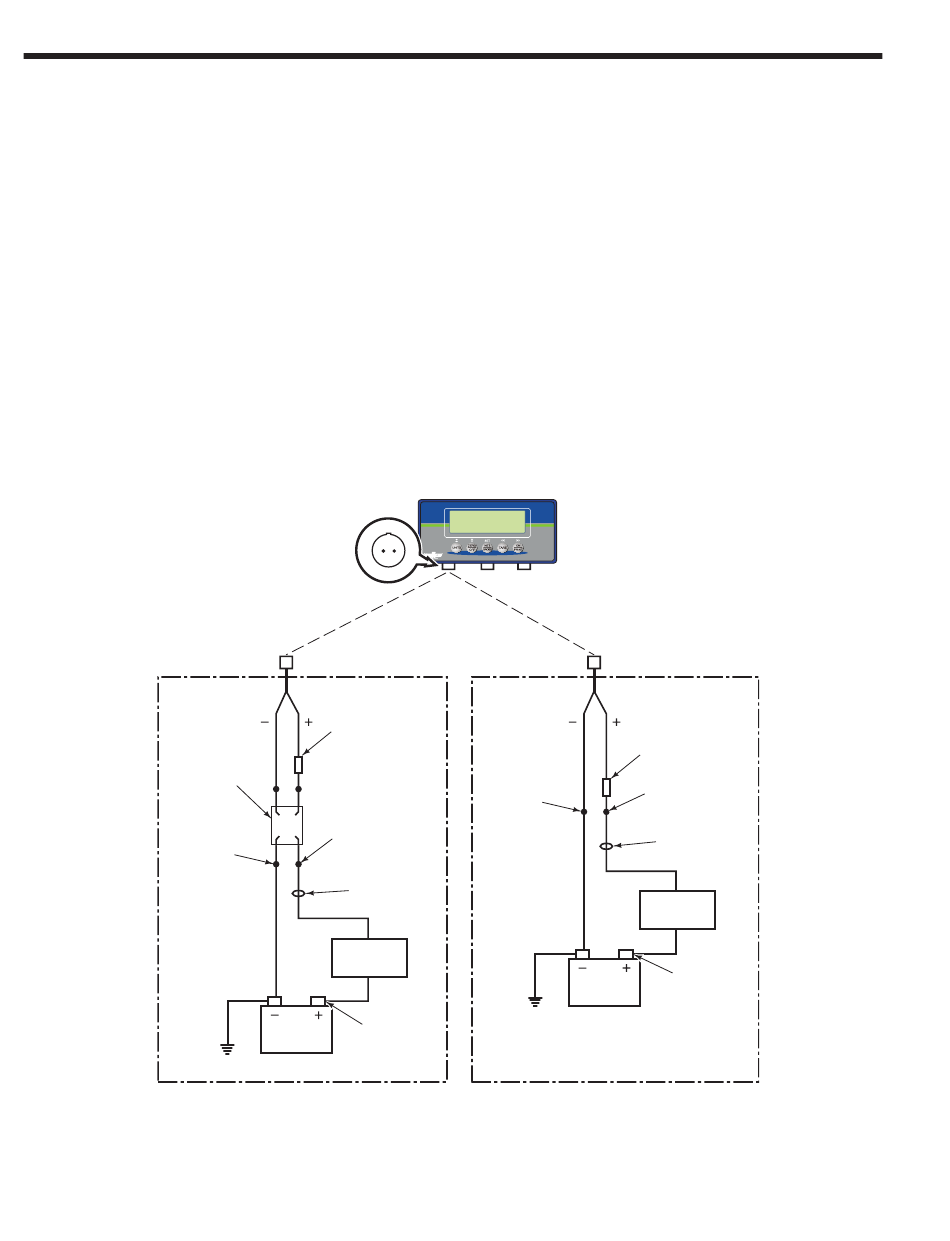

If equipped with a truck power option
indicator, connect indicator to truck
power.
A
Disconnect the cable from the negative battery
terminal or as directed by OEM truck manual.
B
Connect cable ends to the components, as shown.
12V Systems – Connect the fused positive wire to
a 12V switched power source. Connect the ground
wire.
24V-80V Systems – Mount the voltage converter
to truck. Connect the fused positive wire from the
converter to a 24V-80V switched power source.
Connect the ground wire. Check the cable routing
for pinch points and clearance.
Use wire ties as needed.
C
Connect the power cable to the indicator.
D
Connect battery cable(s) to their proper terminal(s).
24V-80V
Voltage
Converter
B
Connect
Negative
Ground
8
Indicator
Connector
Port
C
Fuse, 3.15A,
Cascade Part No.
6167147
B
Connect
Positive
Dedicated
(Unswitched)
Truck
Fuse Block
Truck
D
Battery
C
12V
Fuse, 3.15A,
Cascade
Part No. 6167147
B
Connect
Connect
Positive
Negative
Dedicated
(Unswitched)
Truck
Fuse Block
Truck
Battery
Ground
B
D
FK0548.eps
8305557-R2
