Cascade G Series User Manual

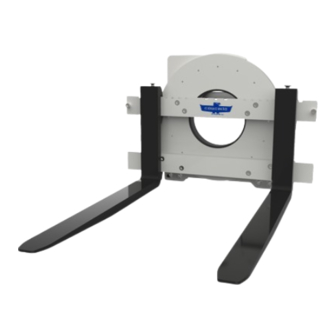

Fork positioner
Hide thumbs Also See for G Series:
Table of Contents

Advertisement

Quick Links

Download this manual
U
SER MANUAL
CONTENTS
2000-Hour Maintenance
CONTACTING CASCADE
G-Series
Fork Positioner
Models: 55G and 100G
back cover
Original Instructions
Manual 6047782-R2 EN
cascade
corporation
Cascade is a Registered Trademark of Cascade Corporation
Page
1
2
2
3
3
4
5
6
7
8
12
12
12
13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cascade G Series

Summary of Contents for Cascade G Series

  • Page 1: Table Of Contents

    SER MANUAL G-Series Fork Positioner Models: 55G and 100G Original Instructions Manual 6047782-R2 EN cascade  corporation Cascade is a Registered Trademark of Cascade Corporation CONTENTS Page INTRODUCTION Special Definitions OPERATION Safety Rules Industrial Lift Trucks Handling Loads Fork Position & Sideshift Operation...

  • Page 2: Introduction

    INTRODUCTION This User Manual is for the Cascade G-Series Fork Positioner. Contents include an Operation Guide, Installation Instructions and Periodic Maintenance. All specifications are shown in Metric units where applicable. IMPORTANT: The G-Series Fork Positioner is metric. Supply fittings adapted as required for application.

  • Page 3: Safety Rules

    OPERATION Safety Rules – Industrial Lift Trucks No riders No reaching through mast No standing under load GA0047.eps Tilt With load Raise 8 cm No load Traveling RAMPS Motor off, park, lower load empty No parking on ramp No turning on ramp Watch clearances GA0048.eps TRAFFIC...

  • Page 4: Handling Loads

    OPERATION Safety Rules – Handling Loads Top of load Limit sideshifting with raised load. should not extend above backrest. CAUTION: Do not put side loads on forks. LOAD WEIGHT Center load prior to traveling. Limit truck movement FP0174.eps with raised load. Load weight must not exceed combined truck/attachment capacity (see truck nameplate).

  • Page 5: Daily Inspection

    OPERATION Daily Inspection Check items shown each day. Report problems to your supervisor. See Service Manual for troubleshooting and repair procedures. Decals for legibility Upper Hook and Centering Tab for proper engagement Fasteners for tightness Fasteners for FP0905.eps tightness Forks for wear Cylinders and hoses Lower hooks for for leaks...

  • Page 6: Safe Operation And Maintenance

    SAFE OPERATION AND MAINTENANCE Industrial Trucks and Attachments A safe distance shall be maintained from the edge of ramps or WARNING: The safe operation and maintenance platforms while on any elevated dock or platform or freight car. of industrial trucks is regulated by Occupational Trucks shall not be used for opening or closing freight doors.

  • Page 7: Truck Requirements

    MIL-0-5606 or MIL-0-2104B. Use of synthetic or aqueous base hydraulic fluid is not recommended. If fire resistant hydraulic fluid is required, special seals must be used. Contact Cascade. ➁ Flow less than recommended will result in slow fork positioning speed.

  • Page 8: Hydraulic Supply

    7 mm minimum I.D. Sideshift function: No. 6 hoses and fittings with 7 mm minimum I.D. Refer to Cascade Hose & Cable Reel Selection Guide, Part No. 212199 to select the correct hose reel for the mast and truck. Fork Position A Mast Single Internal Reeving Fork Position &...

  • Page 9: Installation

    INSTALLATION Remove lower hooks Attach overhead hoist FP0857.eps WARNING: Make sure overhead Back View hoist has a rated capacity of at least 450 kg. Mount on truck carriage Sideshifting Model shown ITA Class II – 15-17 mm ITA Class III – 18-20 mm Engage locator tab with carriage center notch...
  • Page 10 INSTALLATION Flush supply hoses Install hoses Connect supply hoses to truck supply terminals and connect together using a union fitting as shown. Sideshift Left OPEN CLOSE Sideshift Right Operate auxiliary valve for 30 sec. (if equipped) Forks Forks (if equipped) Remove union fitting.
  • Page 11 Install backrest Lubrication Lube upper and lower fork bars with graphite dry lube in areas shown ('Slip Plate Aerosol', 'GraphoKote' or equivalent). Lube fork bars Cascade Backrest– Tighten to 195 Nm. For other backrests, see OEM recommendations. FP0889.eps FP2796.eps Cycle Fork Positioner functions •...
  • Page 12 INSTALLATION Adjust valve flow controls for equal fork movement (if required) Valve pressure adjustment NOTE: Attachment is Factory-adjusted for equal fork movement when operated at recommended pressure and flow rate. Open forks fully, then close. Look for unequal fork movement and note which cylinder is faster. On faster fork (one that bottoms first), loosen jam nut and screw flow control in (CW) 1/2-turn.

  • Page 13: Periodic Maintenance

    • Inspect fork hooks and carriage bars for wear. Front View NOTE: Cascade fork safety kit 3014162 available with wear calipers, inspection sheets and safety poster. Also available Cascade fork hook & carriage bar wear gauge 209560 (CL II) and 209561 (CL III). Cylinders Fork Carrier Bearing...

  • Page 14: Nameplate Icons

    ET NIMEPLAADILE IKOONID LV AR NOSAUKUMU, IKONAS SV NAMNSKYLTEN IKONER FI NIMIKYLTTI KUVAKKEET MT NAMEPLATE ICOANE TR BILGI ETIKETI SIMGELERI Cascade Corporation • www.cascorp.com • Icons & Patents: www.cascorp.com/support 6095754 FR PLAQUE ICÔNES NL NAAMBORD ICONEN ZH 铭牌图标 EN MODEL ES MODELO IS MÓDEL...
  • Page 15 KOMBINATIONEN GAFFELTRUCK OCH AGGREGAT SKA FÖLJAS. TR ARAÇ KAPASITESI VE DONANIM KOMBINASYONU, GÖSTERILEN DONANIM KAPASITESINDEN DÜŞÜK OLABILIR. ARAÇ BILGI ETIKETINE BAŞVURUN. ARAÇ KAPASITESI VE DONANIM KOMBINASYONU UYUMLU OLMALIDIR. ZH 叉车与叉车属具的综合承载能力可能小于显示的叉车属具承载能力。请参考叉车铭牌。 应符合叉车与叉车属具的综合承载能力。 © Cascade Corporation 2011 www.cascorp.com 04-2011 No. 6098046-R2 6047782-R2 EN...
  • Page 16 Cascade le l’Ufficio Assistenza Cascade più vicino. ser respondida de inmediato? Llame por plus proche. Visitate il nostro sito all’indirizzo teléfonoal servicio técnico de Cascade más Visiter le site Web www.cascorp.com. www.cascorp.com cercano. Visítenos en www.cascorp.com AMERICAS Cascade Corporation Cascade Canada Inc.
