MAST INSTALLATION
1.
Lubricate the bearing surfaces of the base and tilt cylinder
mounting brackets with chassis grease.
2 Lift the mast by a link chain wrapped twice around the
upper channel crossmembers. Positlon the mast into place
on the lift truck and secure the base mountings.
Prior to connecting the tilt cylinders to the mast, make sure
required to prevent the mast from "racking" during tilting.
Refer to your truck service manual for procedures.
IMPORTANT
TRIPLE LIFT
QUAD LIFT
OUTER
/UPRIGHT
>
HOSE
GUIDES
CYLINDER
- HOSE
c HOSE CLAMP
LIFT TRUCK
+ HOSEIFROM
TRUCK CONTROL
VALVE)

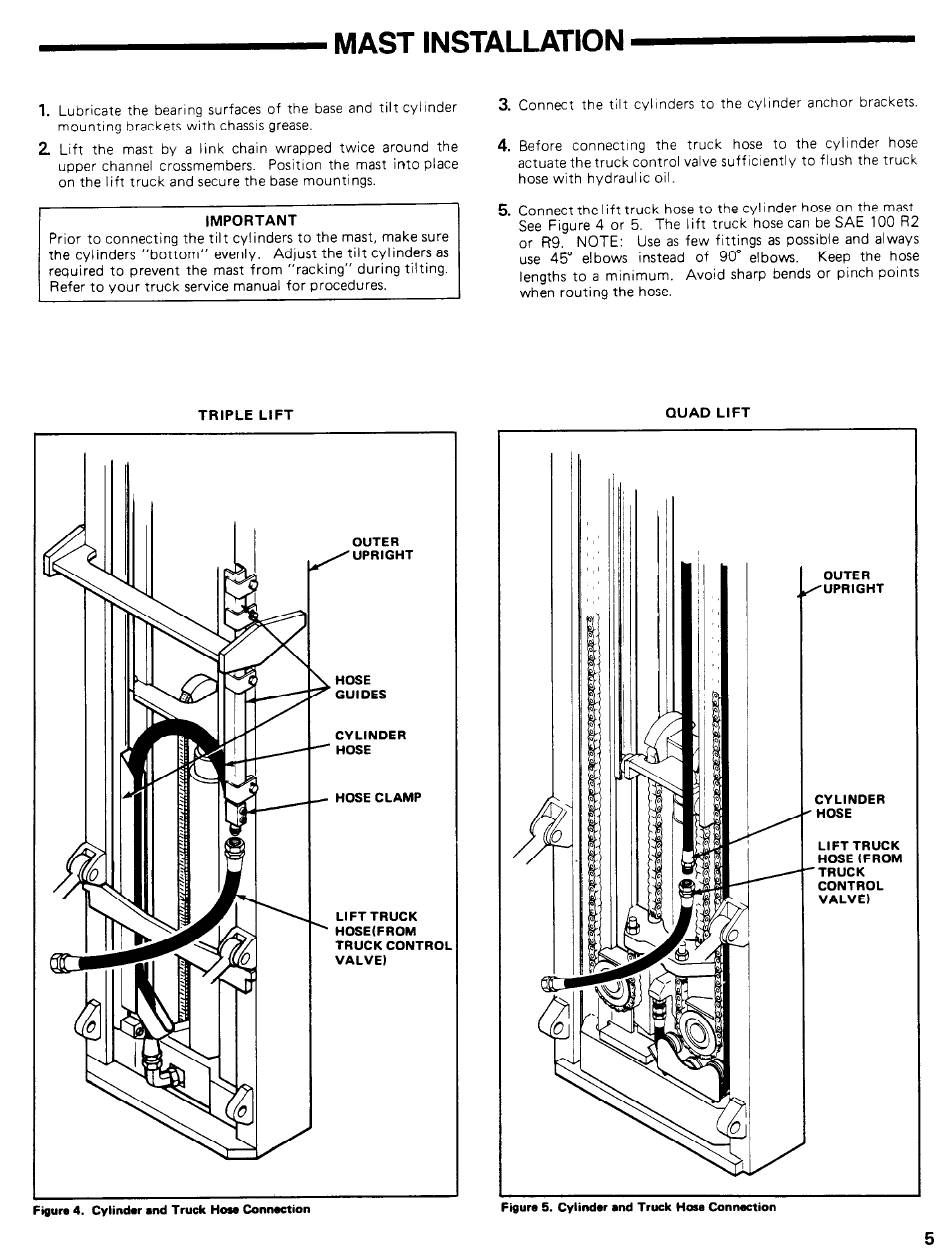

gura 4. Cyiindor and Truck Hose Connection
3.
4.
Connect the tilt cylinders to the cylinder anchor brackets.
Before connecting the truck hose to the cylinder hose
actuate the truck control valve sufficiently to flush the truck
hose with hydraulic oil.
Connect the lift truck hose to the cylinder hose on the mast.
See Figure 4 or 5. The lift truck hose can be SAE 100 R2
or R9. NOTE: Use as few fittings as possible and always
use 45" elbows instead of 90' elbows.
Keep the hose
lengths to a minimum. Avoid sharp bends or pinch points
when routing the hose.
5.
I
1 CYLINDER
I;
Id--
LIFT TRUCK
HOSE (FROM
TRUCK
CONTROL
VALVE)
5
