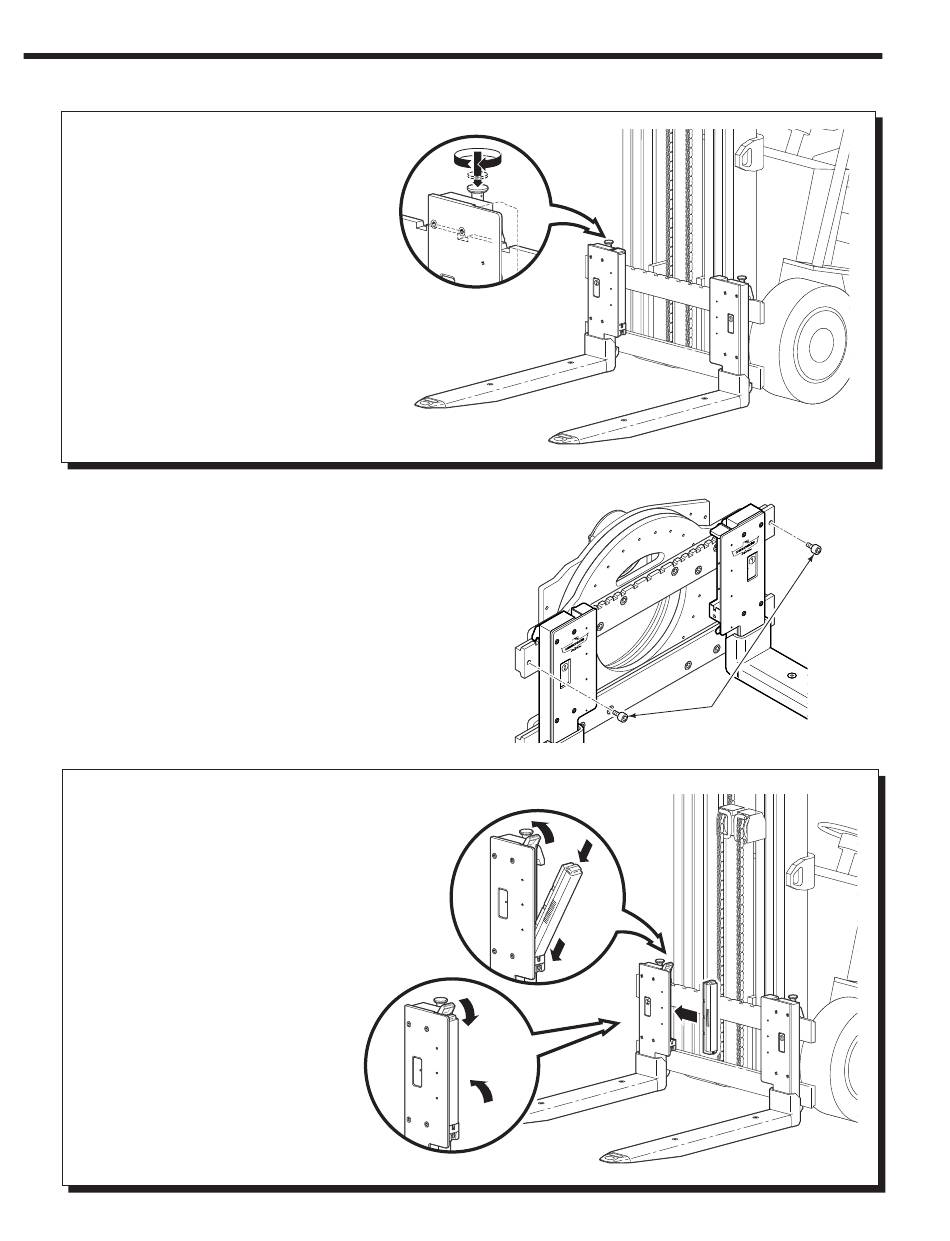

Weigh forks
Hide thumbs Also See for C Series:
Table of Contents

Advertisement

INSTALLATION
2
Lock Forks
NOTE: For rotators, shake forks to
verify the pin is fully engaged in the
fork bar notch.
CAUTION: Pin must engage notch.
3
If equipped, reinstall fork bar keepers
Refer to the attachment's installation instructions for
torque values.
4
Install battery packs
A
Lift up battery holder locking clip.
B
Position battery pack.
C
Click into the battery holders.
D
Secure the locking clips down.
6
FK0636.ai
A
B
D
C
FK0633.ai
Keepers
FK0637.ai
