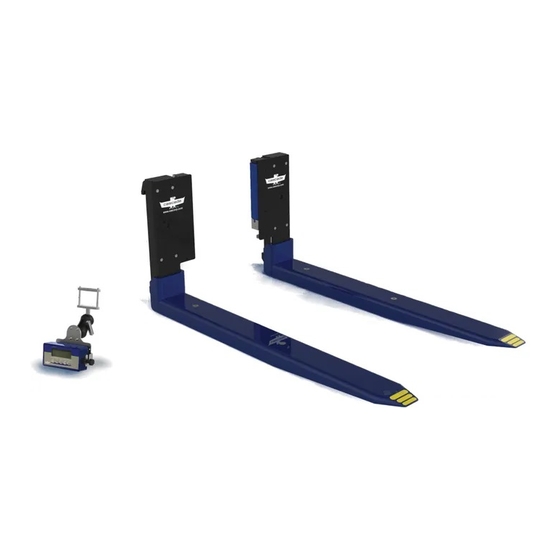

Cascade C Series Operator's Pocket Manual

Weigh forks
Hide thumbs Also See for C Series:
1
2

Advertisement

Quick Links

Download this manual

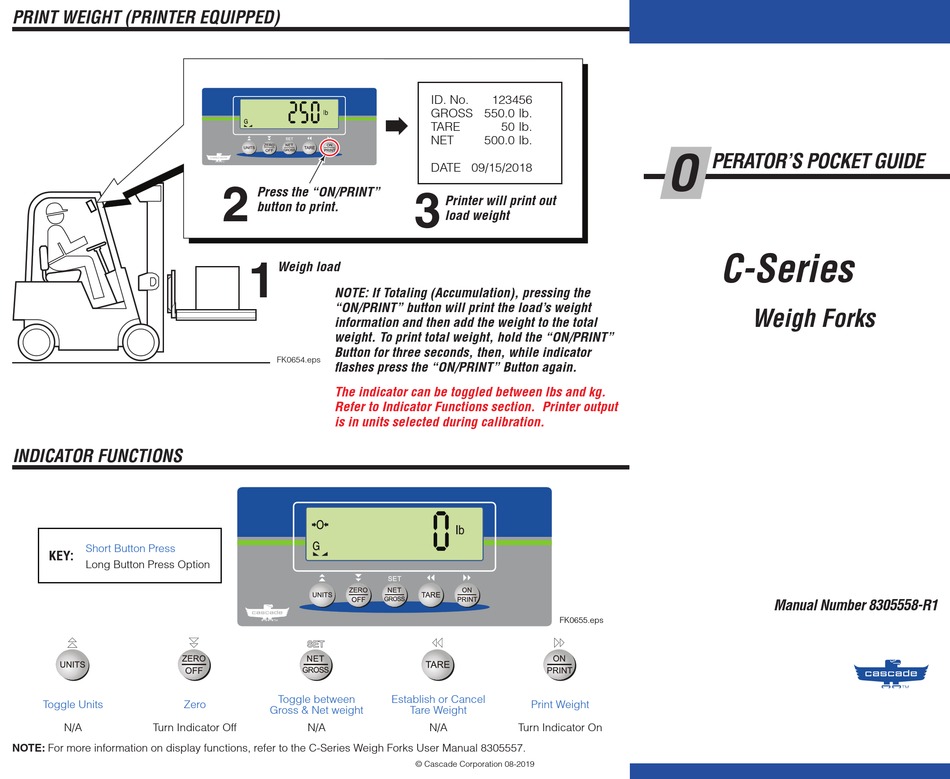

PRINT WEIGHT (PRINTER EQUIPPED)
INDICATOR FUNCTIONS
Short Button Press
KEY:
Long Button Press Option
Toggle Units
Zero
N/A
Turn Indicator Off
NOTE: For more information on display functions, refer to the C-Series Weigh Forks User Manual 8305557.
2
Press the "ON/PRINT"
button to print.
1
Weigh load
NOTE: If Totaling (Accumulation), pressing the
"ON/PRINT" button will print the load's weight
information and then add the weight to the total
weight. To print total weight, hold the "ON/PRINT"
Button for three seconds, then, while indicator
FK0654.eps
flashes press the "ON/PRINT" Button again.
The indicator can be toggled between lbs and kg.
Refer to Indicator Functions section. Printer output
is in units selected during calibration.
Toggle between
Establish or Cancel
Gross & Net weight
N/A
ID. No.
123456
GROSS 550.0 lb.
TARE
50 lb.
NET
500.0 lb.
DATE 09/15/2018
3
Printer will print out
load weight
FK0655.eps
Print Weight
Tare Weight
N/A
Turn Indicator On
© Cascade Corporation 08-2019
O
PERATOR'S POCKET GUIDE
C-Series
Weigh Forks
Manual Number 8305558-R1
c

Advertisement

loading
Need help?

Need help?

Do you have a question about the C Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cascade C Series

Summary of Contents for Cascade C Series

  • Page 1 Establish or Cancel Toggle Units Zero Print Weight Gross & Net weight Tare Weight Turn Indicator Off Turn Indicator On NOTE: For more information on display functions, refer to the C-Series Weigh Forks User Manual 8305557. © Cascade Corporation 08-2019...
  • Page 2 BASIC WEIGHING SAFETY RULES IMPORTANT: • At initial daily start up, allow 3-5 minutes for the forks to warm up before weighing loads. Press the “ON/PRINT” • The system will not weigh correctly if the front face or button. Wait 5 seconds. bottom of the forks touches the load and pallet.
