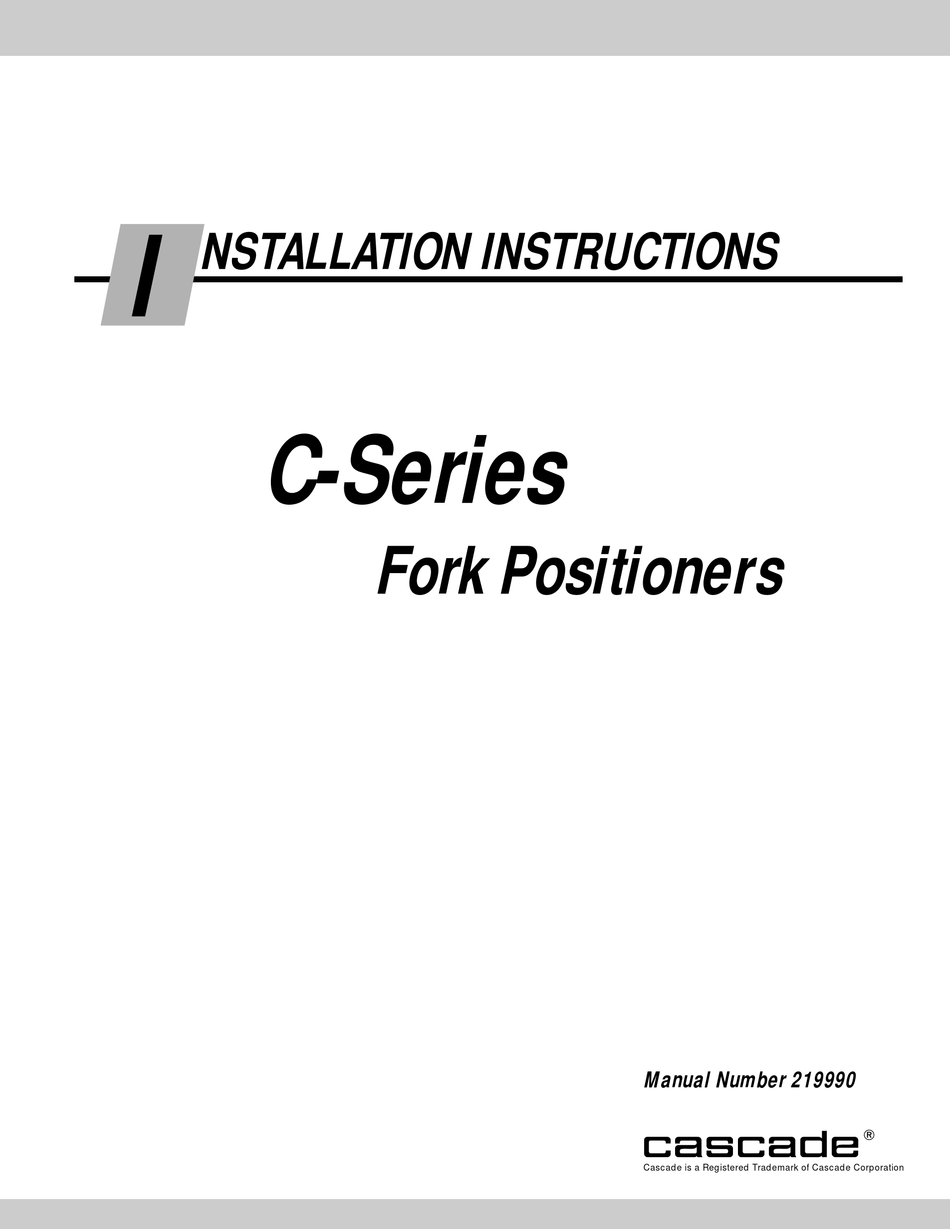

- Page 1 NSTALLATION INSTRUCTIONS C-Series Fork Positioners Manual Number 219990 cascade Cascade is a Registered Trademark of Cascade Corporation...
-
Page 2: Installation
C-Series Fork Positioners can be operated with any of the hydraulic supply arrangements shown below. Refer to Cascade Hose & Cable Reel Selection Guide , Part No. 212199, to select the correct hose reel for the mast and truck. Hose and fitting requirements are as follows: •... - Page 3 5606 or MIL-0-2104B. Use of synthetic or aqueous base hydraulic fluid is not recommended. If fire resistant hydraulic fluid is required, special seals must be used. Contact Cascade. Flow less than recommended can result in slow and unequal fork movement.
- Page 4 NSTALLATION Attach overhead hoist WARNING: Make sure overhead hoist has a rated capacity of at least Remove banding. 2000 lbs. (910 kg.) Attach hoist to top of backrest as shown and lift Attachment into vertical position on pallet. Use wood blocking as required to stabilize Attachment.
- Page 5 NSTALLATION Mount Fork Positioner on truck Center truck behind Attachment. Hang Attachment onto truck carriage. Engage upper mounting hooks. On sideshifting units, make sure upper bearings are in place and centering tab engages center notch on truck carriage. ITA Class II – 0.60–0.66 in. (15–17 mm) ITA Class III –...
- Page 6 NSTALLATION Prepare hoses Determine hose lengths required for hydraulic supply configuration of truck. Cut hoses to length and install end fittings or quick-disconnect kits. HOSE REELS HOSE REELS 55C – Sideshifting / Non-sideshifting 100, 120, 150C – Sideshifting / Non-sideshifting Spread Forks Close Forks FP0221.ill...
- Page 7 NSTALLATION Flush hydraulic supply hoses Connect hoses prepared in Step 5 to Attachment fittings Install hoses to hose terminals on carriage. Connect using union fittings. Operate auxiliary valves for 30 sec. Remove union fittings. FP0214.ill Install solenoid control knob – (Solenoid equipped units) PRESS BUTTON...
- Page 8 NSTALLATION Cycle Fork Positioner functions AUXILIARY VALVE FUNCTIONS • Spread forks and close forks several times. Check for compliance with ITA (ISO) Sideshift (if equipped) left and right. Check standards: for smoothness and equal movement. • Check for operation in accordance with ITA (ISO) standards.
- Page 9 ERIODIC MAINTENANCE WARNING: After completing any service procedure, always test each function through five complete cycles. First test with no load, then test with a load to make sure the attachment operates correctly before returning it to the job. 100-Hour Maintenance Every time the lift truck is serviced or every 100 hours of truck operation, whichever comes first, complete the following maintenance procedures on the Fork Positioner:...
- Page 10 Do you have questions you need answered right now? Call your nearest Cascade Service Department. Cascade Corporation Cascade Canada Inc. Cascade GmbH Cascade Finland U.S. Headquarters 5570 Timberlea Blvd. D-41199 Monchengladbach 01370 Vantas 2201 NE 201st Mississauga, Ontario Klosterhofweg 52...
