USING INDICATOR

Functions

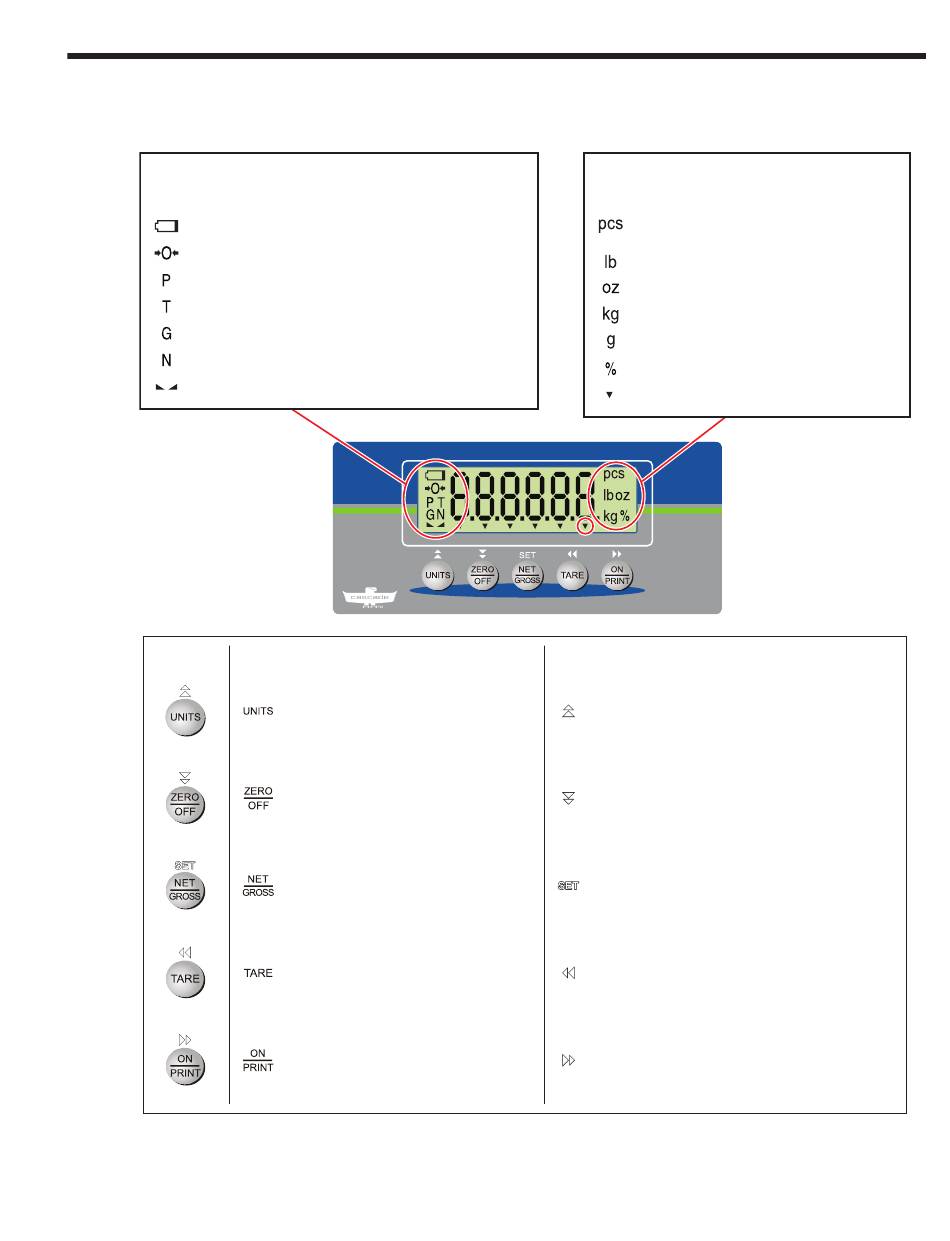

When the following appears:
Low Battery (indicator and fork batteries)
The scale is zeroed
The indicator is in PEAK HOLD mode
The indicator is showing tare weight
The indicator is showing gross weight
The indicator is showing net weight
The scale is at rest and is stable to read weight
Indicator
Button
8305557-R2
Left of Indicator Icons
Weighing Mode
Button Functions
Toggle units
ZERO – Manually zeroes the
indicator (conditions apply)
OFF – To turn off the indicator,
hold button for 5 seconds
Toggle between gross weight
and net weight. Refer to the note
below.
Establishes tare weight
(conditions apply) and also
cancels the current tare weight
ON – To power on the indicator,
hold button for 2 seconds
PRINT – Print weight information
(conditions apply)
Right of Indicator Icons
When the following icon appears:
Quantity displayed is the number of
items on the scale
Weight shown is in pounds
Weight shown is in ounces
Weight shown is in kilograms
Weight shown is in grams
Value shown is a percentage
Indicates load cell position or fork
Configuration Mode
Button Functions
Returns to Parameters, Configuration menu
or exits configuration mode
OR
Increase the value of the flashing digit
Enters Parameters or Parameter Settings
OR
Decrease the value of the flashing digit
Select value OR save value
Show next menu/parameter/setting
OR
Shift to the next digit on the left
Show previous menu/parameter/setting
OR
Shift to the next digit on the right
