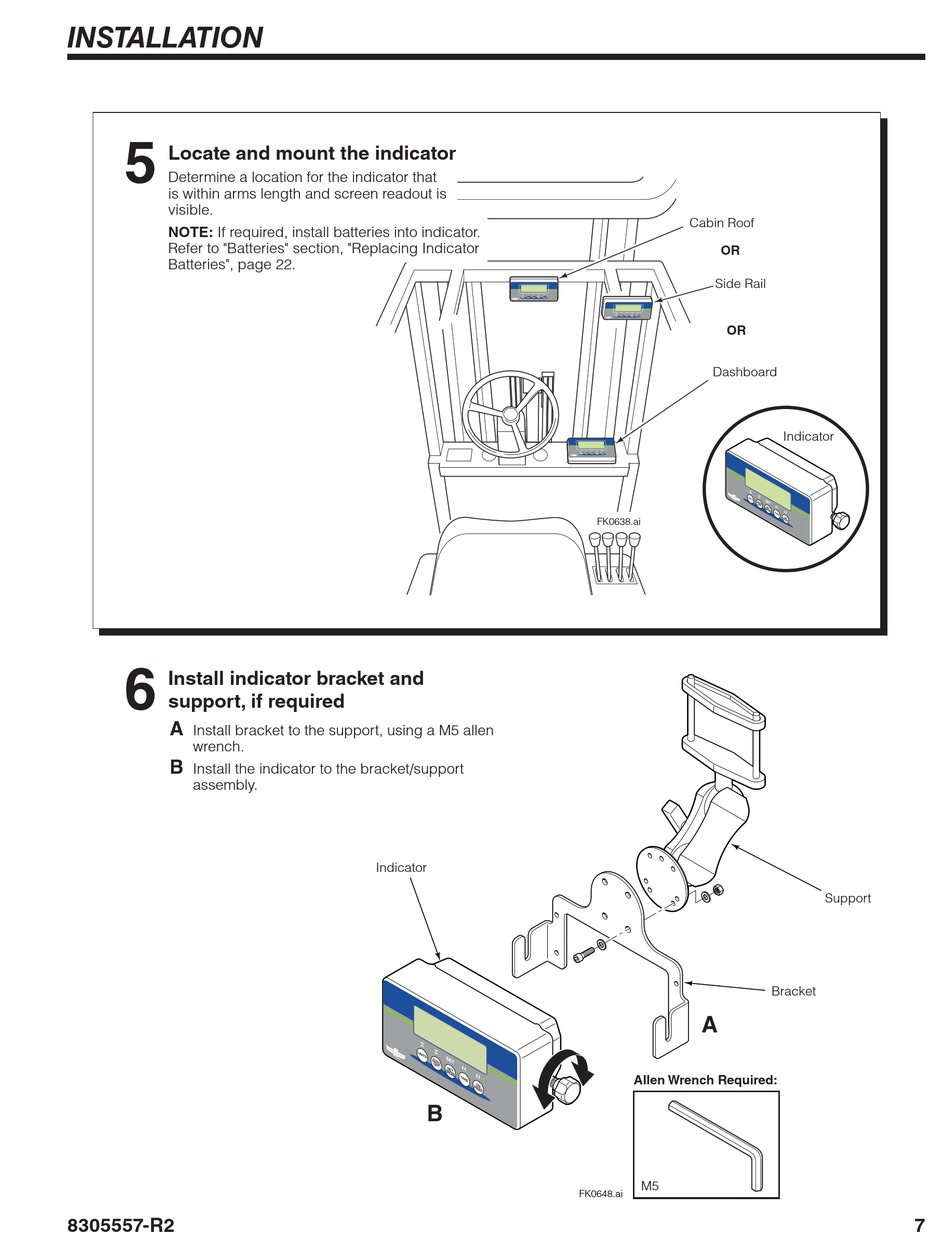

Cascade C Series User Manual page 9

INSTALLATION
5
Locate and mount the indicator
Determine a location for the indicator that
is within arms length and screen readout is
visible.
NOTE: If required, install batteries into indicator.
Refer to "Batteries" section, "Replacing Indicator
Batteries", page 22.
6
Install indicator bracket and
support, if required
A
Install bracket to the support, using a M5 allen
wrench.
B
Install the indicator to the bracket/support
assembly.
8305557-R2
Indicator
c
B
Cabin Roof
OR
Side Rail
OR
Dashboard
c
FK0638.ai
A
Allen Wrench Required:
M5
FK0648.ai
Indicator
Support
Bracket
7
