Pin Assignment

4.2
i
5.
Fig. 2
If the external teach input is not used:
1) You can order cut optical fibers separately as accessories, see Chap.
colorCONTROL MFA-1

Fiber Optics Adjustment

Loosen the union nut of the MFA-1 socket.
Use the knife included to cut the plastic optical fiber to the desired length.
Insert the end of the optical fiber into the socket until it stops, and screw it in.
Any optical fiber surface that is not as smooth as it should be or any incorrectly inserted optical fiber
may cause loss of intensity and range

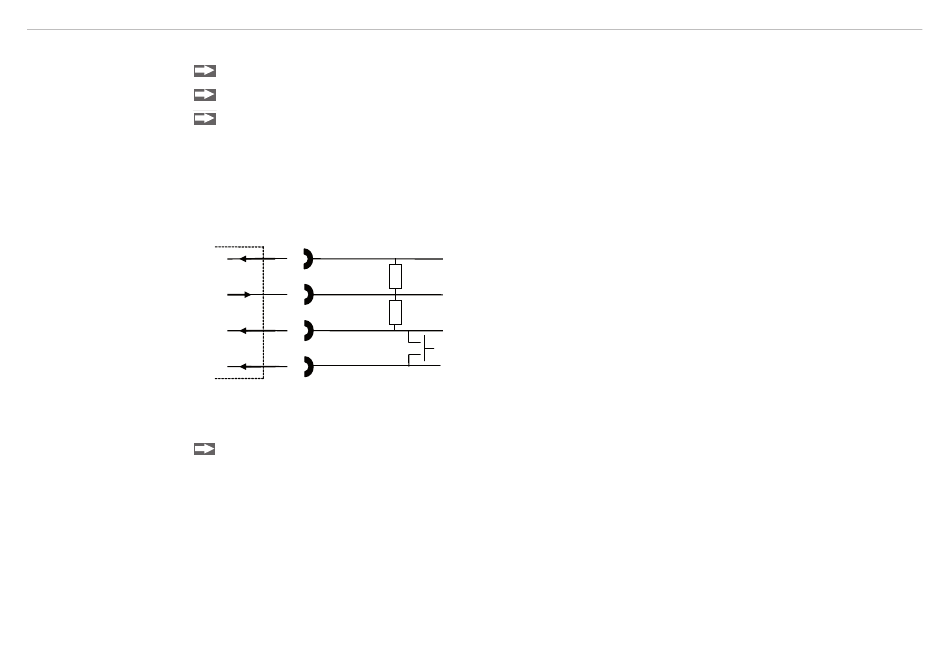

Pin Assignment
Pin assignment
Connect the white cable to the brown cable.
.
1
Brown(+10 - 30 VDC)
NPN
Black (output 100 mA max)
PNP
Blue (0 V)
White (External teach input)
10.
