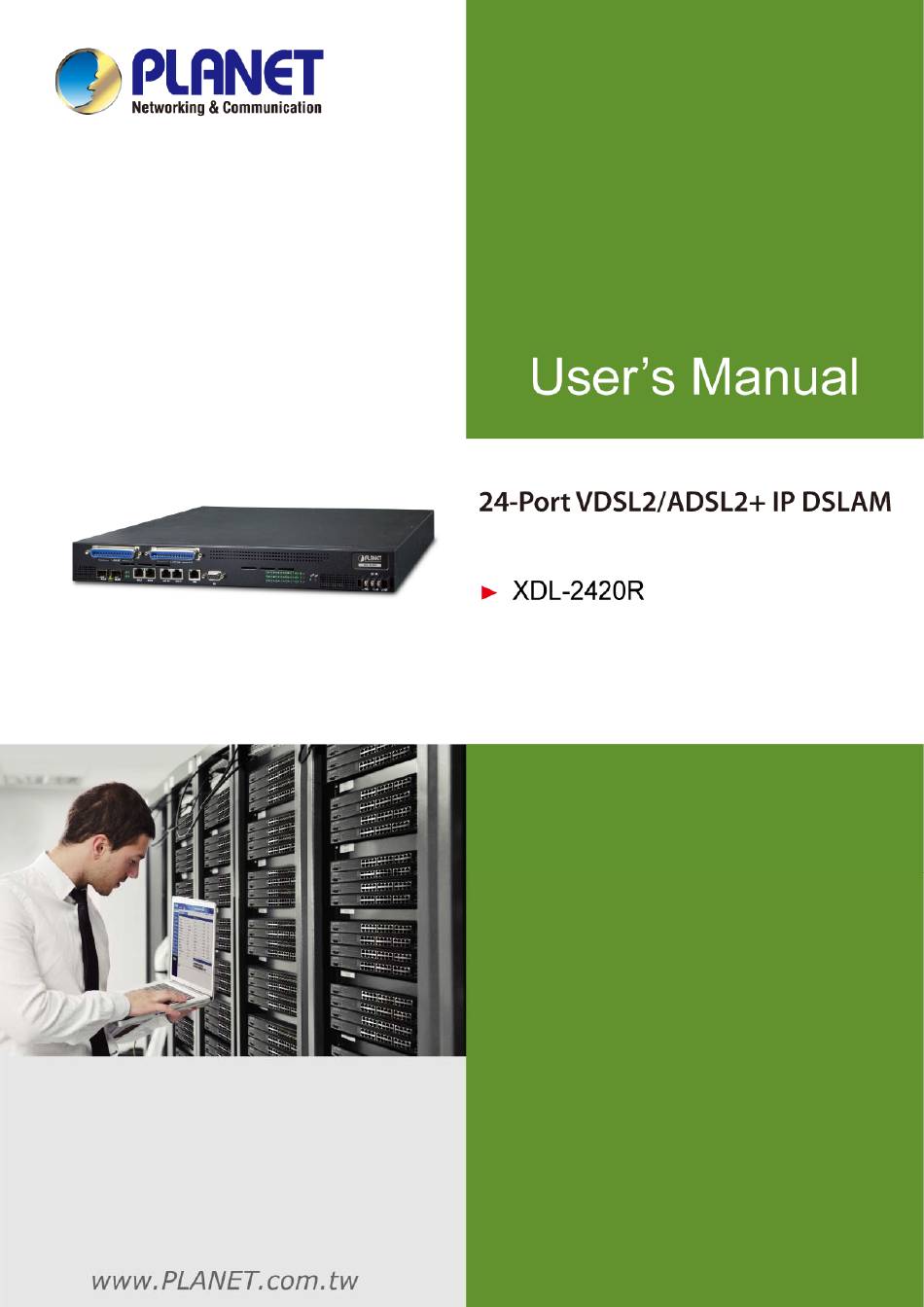

Planet XDL-2420R User Manual

24-port vdsl2 / adsl2+ ip dslam
Hide thumbs Also See for XDL-2420R:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XDL-2420R and is the answer not in the manual?

Questions and answers

Related Manuals for Planet XDL-2420R

Summary of Contents for Planet XDL-2420R

  • Page 2 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION........................6 1.1 Packet Contents ............................6 1.2 Product Description .............................6 1.3 How to Use This Manual ..........................8 1.4 Product Features............................9 1.5 Product Specifications ..........................11 2. INSTALLATION ........................13 2.1 Hardware Description ..........................13 2.1.1 DSLAM Front Panel.............................13 2.1.2 LED Indications ..............................15 2.1.3 DSLAM Rear Panel .............................16 2.2 Installing the DSLAM..........................16...
  • Page 4 4.2.10 IGMP Configuration ............................37 4.2.11 IGMP Channel Profile ............................40 4.2.12 PPPoE Configuration............................41 4.2.13 DHCP Configuration ............................42 4.2.14 xDSL Line Profile ...............................45 4.2.15 xDSL Alarm Profile.............................51 4.2.16 Setting VLAN Port Table ............................53 4.2.17 Access Control List Group ..........................58 4.2.18 Remark Mapping ...............................61 4.2.19 IGMP Channel Profile ............................62 .4.2.20 PBO Profile Apply .............................64 .4.2.21 Power Back Off Profile............................65...
  • Page 5 4.8 Administration ............................91 4.8.1 Version Information..............................91 4.8.2 System Information..............................91 4.8.3 Modify Date and Time............................92 4.8.4 Temperature Threshold............................93 4.8.5 Save Configuration ..............................94 4.8.6 System Reboot ..............................94 4.8.7 Location Information ............................95 4.8.8 Line Identifier ...............................97 4.8.9 Backup and Restore ............................98 4.8.10 User Management .............................99 4.8.11 Out-of-Band Management ..........................100 4.8.12 Remote Management ............................101 4.8.13 Trap Server..............................103...

  • Page 6: Introduction

    PLANET XDL-2420R is a telecom-level high performance IP-DSLAM (Digital Subscriber Line Access Multiplexer) with 24-Port VDSL2 / ADSL2+ and 2 Gigabit TP / SFP combo interfaces, and AC and DC Redundant Power System. The XDL-2420R is fully compliant with ITU-T G.993.2 VDSL2 standard band plan up to 30a profiles. It offers maximum download and upload line rate up to 100/100Mbps on the existing twisted pair lines.
  • Page 7 SELT doesn’t require a technician or any equipment at the subscriber site. The XDL-2420R is equipped with one 100~240V AC unit and one -48V DC power supply unit. Dual power systems offer more power deploy flexibility, and the -48V DC power supply implemented makes the XDL-2420R IP DSLAM as a telecom level device that can be located at the electronic room.

  • Page 8: How To Use This Manual

    1.3 How to Use This Manual This User’s Manual is structured as follows: Section 2, INSTALLATION The section explains the functions of the IP DSLAM and how to physically install the IP DSLAM. Section 3, DSLAM MANAGEMENT The section contains the information about the software function of the IP DSLAM. Section 4, WEB CONFIGURATION The section explains how to manage the IP DSLAM by Web interface.

  • Page 9: Product Features

    Built-in POTS splitter for each VDSL / ADSL port  Compatible with PLANET’s VDSL2 CPE devices: VC-231, VC-234, VDR-300NU  Compatible with PLANET’s ADSL2/2+ router: ADN-4101, ADE-3400, ADE-3410, ADE-4400, VDR-300NU  Auto-speed function for DSL link (by distance and cable quality) ...
  • Page 10  8 queues priority for all xDSL ports  SP-Priority / WRR-Weight QoS  ToS to VLAN priority remark mapping  Multicast  IGMP v2 Snooping  IGMP Fast Leave  Security  8 groups Layer2 / 3 / 4 Access Control List ...

  • Page 11: Product Specifications

    1.5 Product Specifications XDL-2420R Product Hardware Specifications 24-Port VDSL2 / ADSL2+ Line via 1 RJ21 (Telco-50) connector DSL Interface 24-Port POTS/Telephone via 1 RJ21 (Telco-50) connectors 2 10/100/1000Mbps RJ45 auto-negotiation, auto MDI/MDI-X 1000Mbps Copper Ports 2 1000BASE-SX/LX/BX, shared with GE1 and GE2 port SFP/mini-GBIC Slots 8.8Gbps / non-blocking maximum...
  • Page 12 Selectable rate limit control Selectable target SNR (signal to noise ratio) mode xDSL Features POTS voices pass-through Compliant with ETSI TS 101 952-1-1 option A for European POTS Splitter The splitter is passive element. Layer 2 Functions Web browser, Telnet Management Interface IGMP v2, Fast Leave IGMP Snooping...

  • Page 13: Installation

    There are 24 VDSL2 / ADSL 2+ ports and 24 POTS ports with 2 Telco-50 / RJ21 type connectors on the front panel of XDL-2420R. Each port has a built-in POTS splitter that helps the voice of telephone and data of network applications transmit over the same wire without interruption.
  • Page 14 The payload rate is about 9% less than the line rate due to framing overhead. AWG 26 (0.4mm) cable can also be used but the distance is 20% to 40% shorter than the above table. Each terminated bridge tap may reduce the xDSL link distance by 90m.The quality of the cable, the size of the cable bundles, and the cross talk within the bundle can also affect the overall reach.

  • Page 15: Led Indications

    The front panel LEDs indicates instant status of power and system status, fan status, port links and activity. It helps monitor troubleshoot when needed. Figure 2-2 shows the LED indications of the DSLAM. XDL-2420R LED Indication Figure 2-2: DSLAM LED on Front Panel DSLAMP LED Indication Table ■ System...

  • Page 16: Dslam Rear Panel

    2.1.3 DSLAM Rear Panel The rear panel of the DSLAM indicates an AC inlet power socket, which accepts input power from 100 to 240V AC, 50-60Hz. Figure 2-3 shows the rear panel of the DSLAM. DSLAMP Rear Panel Figure 2-3: Rear Panel of DSLAM ■...
  • Page 17 Figure 2-4 shows how to attach brackets to one side of the DSLAM. Figure 2-4: Attach Brackets to the DSLAM. You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect screws would invalidate the warranty. Step3: Secure the brackets tightly.

  • Page 18: Installing The Sfp Transceiver

    Figure 2-6: Plug-in the SFP Transceiver  Approved PLANET SFP Transceivers PLANET DSLAM supports both single mode and multi-mode SFP transceiver. The following list of approved PLANET SFP transceivers is correct at the time of publication: Gigabit SFP Transceiver Modules ...
  • Page 19  module-60km (-40~75℃) It is recommended to use PLANET SFP transceiver on the DSLAM. If you insert an un-supported SFP transceiver into the DSLAM, the DSLAM will not recognize it. In the installation steps below, this Manual uses Gigabit SFP transceiver as an example.
  • Page 20 Before we connect DSLAM to the other network device, we have to make sure both sides of the SFP transceivers are with the same media type, for example: 1000BASE-SX to 1000BASE-SX, 1000Bas-LX to 1000BASE-LX. Check whether the fiber-optic cable type matches with the SFP transceiver requirement. ...

  • Page 21: Wiring For Dsl Ports

    2.2.3 Wiring for DSL Ports The DSL port of XDL-2420R uses one RJ21 (Telco-50) connector to connect to a patch panel and then link up to 24 DSL CPEs which can be just directly connected to the remote CPEs through structured or unstructured wiring, such as the existing telephone lines.

  • Page 22: Dslam Management

    Figure 2-9: Connect RJ21 (Telco-50) cable to XDL-2420R 3. DSLAM MANAGEMENT This chapter explains the methods that you can use to configure management access to the DSLAM. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system.

  • Page 23: Web Management

    3.2 Web Management The DSLAM offers out-of-band management features that allow users to manage the DSLAM from anywhere on the network through a standard browser such as Firefox or Microsoft Internet Explorer. After you set up your IP address for the DSLAM, you can access the DSLAM's Web interface applications directly from your Web browser by entering the IP address of the DSLAM.

  • Page 24: Web Configuration

    4. WEB CONFIGURATION The DSLAM can be configured through an Ethernet connection, making sure the manager PC must be set on the same IP subnet address with the DSLAM. For example, the default IP address of the DSLAM is 192.168.0.100, then the manager PC should be set at 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.
  • Page 25 Figure 4-1-2: Login Screen Default User Name: admin Default Password: admin After entering the username and password, the main screen appears as shown in Figure 4-1-3. Figure 4-1-3: Web Main Page - 25 -...
  • Page 26 Now, you can use the Web management interface to continue the DSLAM management or manage the DSLAM by Web interface. The DSLAM menu on the left of the web page lets you access all the commands and statistics the DSLAM provides. It is recommended to use Internet Explore 9.0 or above to access DSLAM.

  • Page 27: Main Web Page

    4.1 Main Web Page The DSLAM provides a Web-based browser interface for configuring and managing it. This interface allows you to access the DSLAM using the Web browser of your choice. This chapter describes how to use the DSLAM’s Web browser interface to configure and manage it.

  • Page 28: Provision

    4.2.2 xDSL Line Activate This section is for you to activate and indicate xDSL port. By default, xDSL is disabled. User has to activate the port to enable xDSL device to chain with XDL-2420R. The screen in Figure 4-2-2 appears.

  • Page 29: Apply Xdsl Line Profile

    The Page includes the following fields: Object Description  Start Port Allows user to set up port range.  End Port Allows user to set up port range.  Config Value Enable: Enables xDSL port. Disable: Disables xDSL port. Button : Save configuration.

  • Page 30: Apply Xdsl Alarm Profile

    The Page includes the following fields: Object Description  Start Port Allows user to set up port range.  End Port Allows user to set up port range.  Line Profile Name Allows user to indicate a created xDSL line profile name. Default setting is LINE-DEFAULT.

  • Page 31: Vlan Ethernet Type

    Object Description  Start Port Allows user to set up port range.  End Port Allows user to set up port range.  Alarm Profile Name Allows user to indicate a created alarm profile name. Default setting is LINE-DEFAULT. Button : Save configuration.

  • Page 32: Dlf/Broadcast Rate Limit

    : Click to reset IP address to default setting. 4.2.6 DLF/Broadcast Rate Limit Destination Lookup Failure -- The Destination Lookup Failure (DLF) setting is concerned with comparing the destination MAC address of a packet received by the switch to the forwarding database. When the switch receives a packet, it scans the forwarding database and looks for a match to the destination MAC address in the received packet.

  • Page 33: Uplink Application Mode

    4.2.7 Uplink Application Mode This section introduces how to configure uplink Interface about system side connectivity for two GE/FE ports with 1:1 redundancy (active/standby), link aggregation (static trunk), or daisy chain. The screen in Figure 4-2-7 appears. Figure 4-2-7: Uplink Application Mode Page Screenshot The page includes the following fields: Object Description...
  • Page 34 Figure 4-2-8: Uplink Application Mode of Redundancy Figure 4-2-9: Uplink Application Mode of Aggregation Figure 4-2-10: Uplink Application Mode of Daisy - 34 -...

  • Page 35: Access Control List

    4.2.8 Access Control List This section introduces how to configure ACL group profile application to xDSL port. Before you apply new ACL profile to xDSL port, you have to create a new ACL profile from Access Control List Group page as default setting is ACL-DEFAULT. When you create a new ACL profile, you can find a new profile is going to appear under ACL Group option, and then you can select it to apply the port to whatever you want.

  • Page 36: Qos Configuration

    4.2.9 QoS Configuration This section introduces how to configure QoS and apply to xDSL port. QoS configuration status is shown on the same page, Please rotate your web page to the bottom. The screen in Figure 4-2-12 appears. Figure 4-2-12: QoS Configuration Page Screenshot The page includes the following fields: Object Description...

  • Page 37: Igmp Configuration

    : Save configuration. 4.2.10 IGMP Configuration This section introduces how to configure IGMP. The XDL-2420R supports IGMP v2 snooping only, so please make sure your multicast source and the other network devices both support IGMP version2. Please note that XDL-2420R doesn’t support IGMP Querier feature, so user must use it to co-work a switch that supported IGMPv2 Querier feature.
  • Page 38 Please make sure that when multicast stream input to GE#1 and GE#2 ports, it should be tagged VID then IGMP Snooping is going to control the multicast stream and to avoid it flooding to CPE side. Also XDL-2420R should be enabled VLAN feature.
  • Page 39 [Port1 VLAN Configuration] [Port2 VLAN Configuration] - 39 -...

  • Page 40: Igmp Channel Profile

    4.2.11 IGMP Channel Profile This section introduces how to configure IGMP channel profile and apply to xDSL port. Before you apply the new IGMP channel profile, you have to create a new IGMP channel profile from the IGMP Channel Profile page. The screen in Figure 4-2-14 appears.

  • Page 41: Pppoe Configuration

    4.2.12 PPPoE Configuration This section introduces how to configure PPPoE configuration. The screen in Figure 4-2-15 appears. Figure 4-2-15: PPPoE Configuration Page Screenshot The Page includes the following fields: Object Description  PPPoE Service Allows user to enable or disable PPPoE service. ...

  • Page 42: Dhcp Configuration

    This section introduces how to configure DHCP option82 configuration. The XDL-2420R is going to insert specific option82 information into a DHCP discover packet when a DHCP request goes through the XDL-2420R and forwards to DHCP server. The DHCP option82 message will be removed when IP address is allocated and is transferred to DHCP client. Please note that DHCP server also needs to support DHCP option82 feature and user has to set up DHCP option 82 policies to DHCP server to allocate IP address according to the option82 policy.
  • Page 43 VLAN ID (Default VID would be applied if no ${Vid} VLAN ID of the bridge port VLAN ID has been set.) This feature must co-worked with VLAN then the option82 message will be attached to DHCP discover packet and output from XDL-2420R. [DHCP Configuration Example] - 43 -...
  • Page 44 [Port1 Configuration Example] [Port2 Configuration Example] - 44 -...

  • Page 45: Xdsl Line Profile

    4.2.14 xDSL Line Profile This section introduces how to configure xDSL Line Profile. xDSL Line Profile contains parameters for configuring VDSL and ADSL lines. As a managed node can handle a large number of CPE, (e.g., hundreds or perhaps thousands of lines), provisioning every parameter on every CPE may become burdensome.
  • Page 46 - 46 -...
  • Page 47 - 47 -...
  • Page 48 Figure 4-2-17: xDSL Line Profile Page Screenshot The page includes the following fields: Object Description  List Profile xDSL profile name selection. If you want to add a new xDSL profile, please click the drop-down list and select “Add New” option to change profile and and keep the profile configuration, after pressing the “Set”...
  • Page 49 BP B8-10 998ADE17-M2x-NUS0-M BP B8-11 998ADE17-M2x-A BP B8-12 998ADE17-M2x-B BP B8-13 998E30-M2x-NUS0 BP B8-14 998E30-M2x-NUS0-M BP B8-15 998ADE30-M2x-NUS0-M BP B8-16 998ADE30-M2x-NUS0-A  [VDSL] Annex C Band Plans POTS-138B, POTS-276B, POTS-138CO, TCM-ISDN Default: POTS-138B  [ADSL] Transmode ADSL transaction modes are listed as follows. Default: 1 Auto G.992.1 Annex A G.992.1 Annex B...
  • Page 50 Default: 4ms  [Dnstream] Min INP Allows user to configure downstream minimum INP from 0.5 symbols to 16 symbols. (INP means impulse noise immunity) Default: 0.5 symbols.  [Dnstream] Min INP8 Allows user to configure downstream minimum INP8 from 0.5 symbols to 16 symbols.

  • Page 51: Xdsl Alarm Profile

    4.2.15 xDSL Alarm Profile This section introduces how to configure xDSL Alarm Profile. The XDL-2420R offers 15Min and 1 Day threshold for user setting flexibility. It means if this threshold value has been reached or exceeded within 15 minutes or 1 day, then it will alarm. This profile could be applied to Apply xDSL Alarm Profile configuration page.
  • Page 52 The page includes the following fields: Object Description  List Profile xDSL alarm profile name selection. If you want to add a new xDSL profile, please click the drop-down list and select “Add New” option to change profile and keep the profile configuration, after pressing the “Set” button. A new profile name will be shown on the profile list.

  • Page 53: Setting Vlan Port Table

    Button : Save configuration. : Click to reset IP address to default setting. : Click to delete current xDSL profile. : Click to delete all xDSL profiles. 4.2.16 Setting VLAN Port Table This section introduces how to configure VLAN Port table and user can customize their VLAN application. The screen in Figure 4-2-19 appears.
  • Page 54 Figure 4-2-19: Set VLAN Port Table Page Screenshot The page includes the following fields: Object Description  xDSL Port Allows user to indicate which xDSL port is going to configure VLAN tagged. Default: 1.  Index Allows user to set configuration index. It offers 8 indexes configuration totally. Default: 1.
  • Page 55  CVLAN ID (4095=IGNORE) Allows user to indicate a VID to be replaced to egress packet. Default: 4095.  CVLAN Priority Allows user to indicate priority of CVLAN (Customer VLAN) Default: 0  CVLAN Accept Allows user to indicate a VID to accept ingress packet of the same VID tagged. (4095=IGNORE) Button : Save configuration.
  • Page 56 Figure 4-2-20: Example of setting Untagged packet in and Single Tagged packet out Figure 4-2-21: Example of setting Untagged packet in and Double Tagged packet out - 56 -...
  • Page 57 Figure 4-2-22: Example of setting Single Tagged packet in and Single Tagged packet out Figure 4-2-23: Example of setting Single Tagged packet in and Double Tagged packet out - 57 -...

  • Page 58: Access Control List Group

    4.2.17 Access Control List Group This section introduces how to configure access control list group. The screen in Figure 4-2-24 appears. Figure 4-2-24: Access Control List Group Page Screenshot - 58 -...
  • Page 59 The current column is used to show the active IP configuration. Object Description  Group Name Allows user to change ACL group name. Default: ACL-DEFAULT  Index Allows user to change group index and it offers 8 indexes totally. It means ACL sub-index for each group name. Each ACL group can be configured 1~128 sub-indexes.
  • Page 60  Protocol Type Allows user to indicate protocol type number. User has to translate the protocol number from Hexadecimal To Decimal. Protocol Number Protocol Name Decimal (Hexadecimal) 0x01 ICMP 0x02 IGMP 0x06 0x11  Service Type Allows user to indicate service type. Default: CoS None / Cos / ToS / DSCP / Precedence ...

  • Page 61: Remark Mapping

    4.2.18 Remark Mapping This section introduces how to configure remark mapping. The screen in Figure 4-2-25 appears. Figure 4-2-25: Remark Mapping Page Screenshot The page includes the following fields: Object Description  Remark Action Allows user to indicate remark action type. Default: ToS to SVLAN Priority TOS to SVLAN Priority TOS to CVLAN Priority SVLAN Priority to TOS...

  • Page 62: Igmp Channel Profile

    4.2.19 IGMP Channel Profile This section introduces how to configure IGMP Channel Profile. The screen in Figure 4-2-26 appears. Figure 4-2-26: Remark Mapping Page Screenshot The page includes the following fields: Object Description  Profile Name (5~20 chars) Allows user to change profile name for creating or modifying profile. Please note that the default profile cannot be changed, and rename the default profile name directly for creating new profile.
  • Page 63 Deny: Refuse the access for IGMP packets Default: Permit  Channel IP Allows user to indicate multicast group IP to be assigned. Default: 224.0.0.0  End Channel IP Allows user to indicate available multicast group IP which begins from “channel IP”...

  • Page 64: Pbo Profile Apply

    .4.2.20 PBO Profile Apply This section introduces how to configure “PBO Profile”. This page is for you to apply PBO profile to DSL port only. If you would like to change PBO profile setting, please go visit the power back off profile page and make a new profile first. The screen in Figure 4-2-27 appears.

  • Page 65: Power Back Off Profile

    .4.2.21 Power Back Off Profile This section introduces how to configure power back off profile. The screen in Figure 4-2-28 appears. Figure 4-2-28: Power Back Off Profile Page Screenshot - 65 -...
  • Page 66 The page includes the following fields: Object Description  Profile Name Allows user to input new profile name for creating a new profile. Default is PBO-DEFAULT. Please note that default profile cannot be changed.  DPBO EPsd Allows user to select different ADSL modes from DPBO exchange PSD. There are ADSL mode, ADSL2+ mode, VDSL2 mode and custom.
  • Page 67 value. The cable model is in terms of three scalars xdsl2LConfProfDpboEsCableModelA (DPBOESCMA), xdsl2LConfProfDpboEsCableModelB (DPBOESCMB), and xdsl2LConfProfDpboEsCableModelC (DPBOESCMC), that are used to estimate the frequency dependent loss of E-side cables calculated from the xdsl2LConfProfDpboEsEL (DPBOESEL) parameter. Possible values shall be coded as unsigned integers representing a scalar value from -1 (coded as 0) to 1.5 (coded as 640) in steps of 2^-8.
  • Page 68 xdsl2LConfProfUpboPsdB to 0 is a special configuration to disable UPBO in the respective upstream band.  UPBO U0 band Psd B This configuration parameter defines the 'b' reference parameter of the UPBO  UPBO U1 band Psd B reference PSD used to compute the upstream power back-off for the upstream ...

  • Page 69: Alarm

    4.3 Alarm 4.3.1 List Current Alarms This section introduces how to configure List Current Alarms for displaying present data of the current alarm event. The screen Figure 4-3-1 appears. Figure 4-3-1: List Current Alarms Page Screenshot The page includes the following fields: Object Description ...

  • Page 70: Clear Alarm History

    4.3.3 Clear Alarm History User just needs to click “Clear Alarm History” link from menu tree. The screen in Figure 4-3-3 appears. Figure 4-3-3: Clear Alarm History Page Screenshot 4.3.4 Operate Alarm Cut Off The operate alarm cut off is for you to cut off audio alarm sound if 4 external alarm output has been triggered.

  • Page 71: Modify Alarm Severity

    As built-in alarm output assignment to “ALARM OUT” port is as following table. For example, if user set “FAN_Fail_Alarm” severity to “Minor” then “External Alarm OUT3” will be triggered when XDL-2420R fan has stopped. If user set “FAN_Fail_Alarm” severity to “Critical” then “External Alarm OUT1” will be triggered when XDL-2420R fan has stopped.
  • Page 72 Figure 4-3-5: Modify Alarm Severity Page Screenshot The page includes the following fields: Object Description  Fan_Fail Alarm Allows user to set fan failure alarm type to critical, major and minor, event or info.  High_Temperature_Alarm Allows user to set high temperature alarm type to critical, major and minor, event or info.
  • Page 73  NE_ES_15Min_Threshold Allows user to set NE_ES_15Min_Threshold type to critical, major and minor, event or info.  NE_SES_15Min_Threshold Allows user to set NE_SES_15Min_Threshold type to critical, major and minor, event or info.  NE_UAS_15Min_Threshold Allows user to set NE_UAS_15Min_Threshold type to critical, major and minor, event or info.
  • Page 74 LPR_FE: A far end Loss of power - LPR-FE failure is declared after the occurrence of a far end LPR primitive followed by 2.5 +- 0.5 s of contiguous near end LOS defected. A far end LPR failure is cleared after 10 +- 0.5 s of no near end LOS defected. It means Error Seconds.

  • Page 75: Modify Alarm Reporting

    4.3.6 Modify Alarm Reporting This section introduces how to configure modify alarm reporting. The screen in Figure 4-3-6 appears Figure 4-3-6: Modify Alarm Reporting Page Screenshot - 75 -...
  • Page 76 The Page includes the following fields: Object Description  Fan_Fail Alarm Allows user to set sending out fan fail alarm report to trap server. Yes: Sent out alarm report to trap server when a specific alarm occurred. No: Don’t send out report to trap server when a specific alarm occurred. ...
  • Page 77 No: Don’t send out report to trap server when a specific alarm occurred.  NE_UAS_15Min_Threshold Allows user to set sending out NE 15 minutes unavailable seconds threshold alarm report to trap server. Yes: Sent out alarm report to trap server when a specific alarm occurred. No: Don’t send out report to trap server when a specific alarm occurred.

  • Page 78: External Alarm State

    4.3.7 External Alarm State This section shows you external alarm state table. If an alarm is triggered, the state will be shown “ON” and the alarm group wire will be opened. As “Normal” state, the alarm group wire will be closed. The screen in Figure 4-3-7 appears Figure 4-3-7: External Alarm State Page Screenshot...

  • Page 79: Alarm In And Alarm Out Port Pin Assignment

    4.3.8 Alarm IN and ALARM OUT Port Pin Assignment One “ALARM IN” port offers 4 alarm input groups and a pair pin for one alarm input group. Same group and pin assignment method for “ALARM OUT” port. ALARM IN / ALARM OUT PIN Assignment: Connects alarm input 1 to 4 groups via RJ45 jack.

  • Page 80: Status

    4.4 Status 4.4.1 xDSL Line Status This section is to show you xDSL lines status. The screen in Figure 4-4-1 appears. Figure 4-4-1: xDSL Line Status Page Screenshot The page includes the following fields: Object Description  Select Port Allows user to select xDSL port to show the port status. 4.4.2 Forward Table This section is to show you MAC address forwarding table through GE port.

  • Page 81: Led Status

    Figure 4-4-2: Forward Table Page Screenshot The page includes the following fields: Object Description  Select Port Allows user to select xDSL port to show the port status. 4.4.3 LED Status This section is to show you all xDSL LEDs and system LED status. The screen in Figure 4-4-3 appears.

  • Page 82: Statistic

    4.5 Statistic 4.5.1 xDSL Statistics This section is to show you per xDSL port statistics. The screen in Figure 4-5-1 appears. Figure 4-5-1: xDSL Line Status Page Screenshot The page includes the following fields: Object Description  Select Port Allows user to select xDSL port to show the port statistics. - 82 -...

  • Page 83: Igmp Group Table

    4.5.2 IGMP Group Table This section is to show you IGMP Group Table statistics. The screen in Figure 4-5-2 appears. Figure 4-5-2: IGMP Group Table Page Screenshot The page includes the following fields: Object Description  Select Port Allows user to select xDSL port to show the port statistics. 4.5.3 IGMP Snooping Table This section is to show you IGMP Snooping Table statistics.

  • Page 84: Xdsl Port Bandwidth

    4.5.3 xDSL Port Bandwidth This section is to show you per xDSL port bandwidth statistics. The screen in Figure 4-5-4 appears. Figure 4-5-4: IGMP Snooping Table Page Screenshot The page includes the following fields: Object Description  Select Port Allows user to select xDSL port to show the port statistics. - 84 -...

  • Page 85: Pm (Performance)

    4.6 PM (Performance) This chapter is to show you xDSL line performance statistics per 15 minutes, 1 hour and 1 day. 4.6.1 xDSL 15 Min PM This section is to show you per 15 minutes xDSL port performance statistics. The screen in Figure 4-6-1 appears.

  • Page 86: Xdsl 1 Hour Pm

    4.6.2 xDSL 1 Hour PM This section is to show you per 1 hour xDSL port performance statistics. The screen in Figure 4-6-2 appears. Figure 4-6-2: xDSL 1 hour Performance Page Screenshot The page includes the following fields: Object Description ...

  • Page 87: Xdsl 1 Day Pm

    4.6.2 xDSL 1 Day PM This section is to show you per 1 day xDSL port performance statistics. The screen in Figure 4-6-3 appears. Figure 4-6-3: xDSL 1 Day Performance Page Screenshot The page includes the following fields: Object Description ...

  • Page 88: Test

    4.7 Test This chapter introduces you about how to make single-ended loop testing (SELT) and XDL-2420R lamp testing. 4.7.1 SELT Single Port The single-ended loop testing (SELT), like metallic testing from POTS world, is an automated way of testing a DSL loop from one end to the line, either from the central office (CO) or, less likely from the subscriber’s end.

  • Page 89: Selt Result

    4.7.2 SELT Result This section is to show you single-ended loop test result. The screen in Figure 4-7-2 appears. Figure 4-7-2: SELT Result Page Screenshot The page includes the following fields: Object Description  Select Port Allows user to select xDSL port to show the port statistics. - 89 -...

  • Page 90: Lamp Test

    4.7.3 Lamp Test The lamp test is for you to check whether lamps on the XDL-2420R are good or bad. It doesn’t have the configuration page, so you just need to click it from the menu tree. The screen in Figure 4-7-3 appears.

  • Page 91: Administration

    4.8 Administration 4.8.1 Version Information This section is to show you about software version, hardware version, serial number of this device and MAC address information. The screen in Figure 4-8-1 appears. Figure 4-8-1: Version Information Page Screenshot 4.8.2 System Information This section is to show you about system information.

  • Page 92: Modify Date And Time

    4.8.3 Modify Date and Time This section is to introduce you about how to configure date and time configuration. Because the XDL-2420R has no battery inside and also it doesn’t support NTP server, it cannot keep date and time for a long time; however, it can keep date and time information for about 3 days.

  • Page 93: Temperature Threshold

    The page includes the following fields: Object Description  Current Show you the current date and time.  Year Allows user to configure year. It could be set from 1900 to 2200.  Month Allows user to configure month. It could be set from 1 to 12. ...

  • Page 94: Save Configuration

    The page includes the following fields: Object Description  Temperature Threshold Allows user to set temperature threshold. If the system temperature has reached or exceeded the threshold value, it will alarm. Button : Save configuration. : Click to undo any changes made locally and revert to previously saved values. : Click to reset IP address to default setting.

  • Page 95: Location Information

    The page includes the following fields: Object Description  Reboot with Allows user to set 4 reboot types. None: system reboots only. Save Configuration: System save configuration first, then reboot. Factory Default: System reboots and makes factory default reset. Factory Default without Network: System reboot is set to factory default. Button : Save configuration.
  • Page 96 The page includes the following fields: Object Description  Project ID Allows user to set project name. (1~20 characters)  Site ID Allows user to set site name. (1~20 characters)  Rack Allows user to set rack name. (1~20 characters) ...

  • Page 97: Line Identifier

    4.8.8 Line Identifier This section is to introduce you about how to configure line identifier. The screen in Figure 4-8-8 appears. Figure 4-8-8: Line Identifier Page Screenshot The page includes the following fields: Object Description  Select Port Allows user to indicate xDSL port for identifying. ...

  • Page 98: Backup And Restore

    Allow user to different action types. Backup Database: It means backing up all configurations. Restore Database All: It means restoring configuration to the XDL-2420R. Restore Database without Network: It means restoring configuration to this device except network setting. Backup System Log: Allows user to back up system log.

  • Page 99: User Management

    4.8.10 User Management This section is to introduce you about how to configure user management. This feature allows user to add user account only. The screen in Figure 4-8-10 appears. Figure 4-8-10: User Management Page Screenshot The page includes the following fields: Object Description ...

  • Page 100: Out-Of-Band Management

    4.8.11 Out-of-Band Management This section is to introduce you about how to configure out-of-band management. This network configuration page is for you to connect to EMS port and manage this device. You can’t manage this device from GE port or alarm IN/OUT port. The screen in Figure 4-8-11 appears.

  • Page 101: Remote Management

    For security reason, user may need to change standard TCP port number from 80 (for HTTP service) or 161 (for SNMP service) to the other port. The SNMP MIBs support XDL-2420R private MIB only and it offers user to monitor VDSL line status.
  • Page 102 Button : Save configuration. : Click to undo any changes made locally and revert to previously saved values. : Click to reset IP address to default setting. - 102 -...

  • Page 103: Trap Server

    4.8.13 Trap Server This section is to introduce you about how to configure SNMP trap server address and community name. This feature offers 5 trap server configuration groups for user to distribute SNMP trap message to different locations. The screen in Figure 4-8-13 appears.
  • Page 104 The page includes the following fields: Object Description  Trap Server IP 1 Allows user to set the 1 SNMP trap server IP address.  Trap Server Community 1 Allows user to set the 1 SNMP trap server community name. ...

  • Page 105: Troubleshooting

    5.2 Some station cannot be accessed to each other via GE2 port Solution: Please login to the XDL-2420R and click “Uplink Application Mode” and set “Mode” to “Daisy” then GE1 and GE2 could be switching. 5.3 xDSL Performance is bad Solution: Try to change VDSL or ADSL band plan or profile for xDSL device.

  • Page 106: Dslam Does Not Power Up

    5.6 DSLAM does not power up Solution: AC/DC power cord is not inserted or faulty Check whether the AC/DC power cord/DC cable wire is inserted correctly Replace the power cord if the cord is inserted correctly; check whether the AC/DC power source is working by connecting a different device in place of the DSLAM.
  • Page 107 [Setp2] Please click “Setting” button from “Browsing history”. - 107 -...
  • Page 108 [Step3] Changing option from “Automatically” to “Every time I visit the webpage” and then click “OK” button. Re-open the web browser. - 108 -...

  • Page 109: Appendix

    6. Appendix 6.1 RJ21 xDSL Connector Port Mapping The female RJ21 subscriber connectors are located on the front of the XDL-2420R. Table 6-1 indicates xDSL (LINE) and Phone (POTS) connectors correspond to ports on xDSL. Figure 6-1 RJ21 Connector Table 6-1 RJ21 Connector Pin Assignment...

  • Page 110: Standard Telco Color Chart

    6.2 Standard Telco Color Chart Table 6-2 indicates the reference colors that are used for the IP-DSLAM system cables. Table 6-2 RJ21 Cable Color Chart Mapping Table Wire Wire Wire Wire Color Color Color Color WHT/BLU WHT/BLU GRN/BLK GRN/BLK BLU/WHT BLU/WHT BLK/BRN BLK/BRN...

  • Page 111: Pin-Outs Of Local Console Db-9 Connector

    6.3 Pin-outs of Local Console DB-9 Connector Female DB-9 connector on the XDL-2420R system is used for console management, a female DB-9 connector is used to connect PC’s COM port. Table 6-3 indicates the pin assignment of female DB-9 local console interface.
