VLT AQUA High Power Operation Instructions

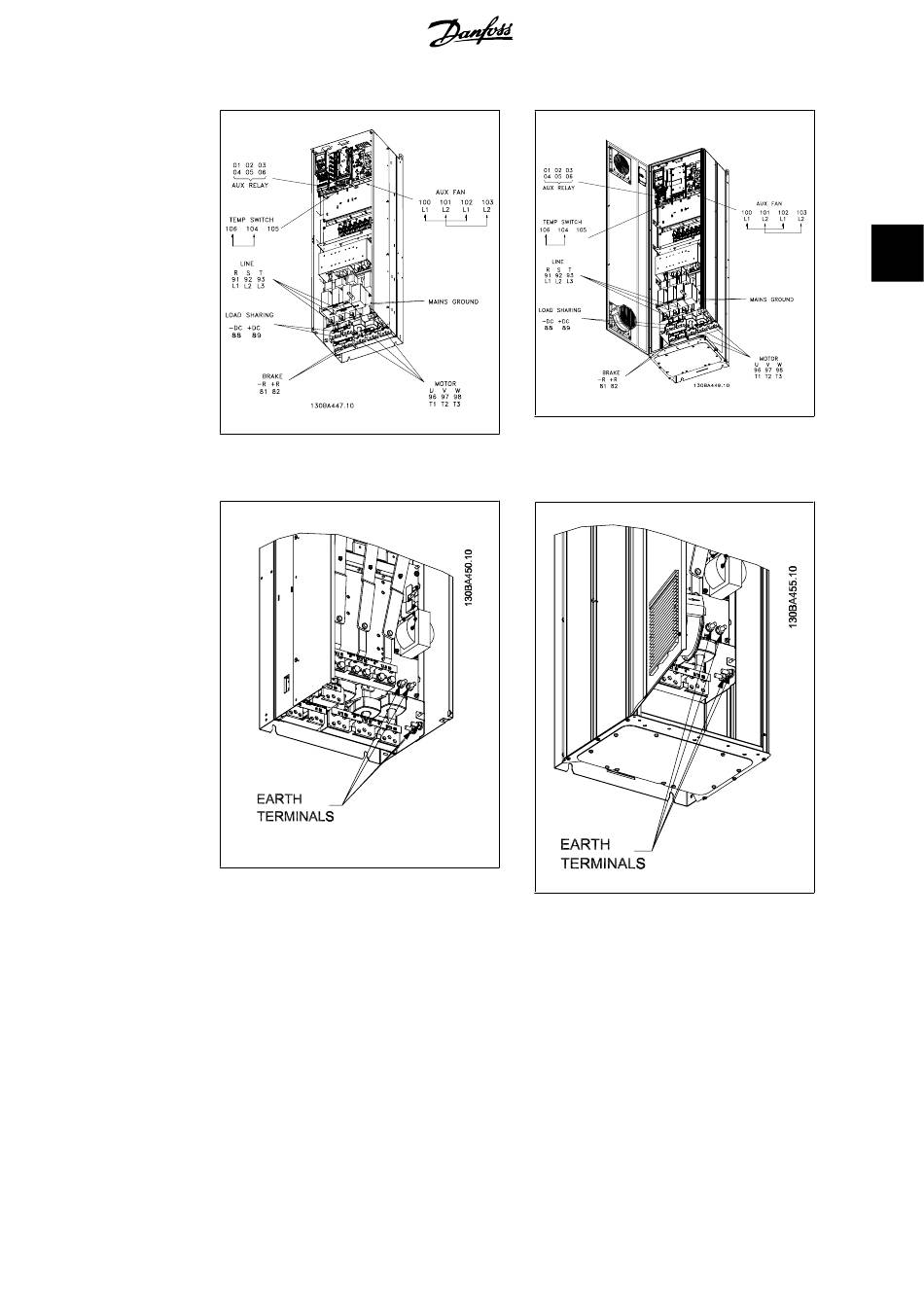

Illustration 3.72: Compact IP 00 (Chassis) with
disconnect, fuse and RFI filter, enclosure D4
Illustration 3.73: Position of earth terminals IP00,
D enclosures
®
MG.20.P1.02 - VLT
is a registered Danfoss trademark
Illustration 3.74: Compact IP 21 (NEMA 1) and IP
54 (NEMA 12) with disconnect, fuse and RFI filter,
enclosure D2
Illustration 3.75: Position of earth terminals IP21
(NEMA type 1) and IP54 (NEMA type 12)
3. How to Install
3
49
