VLT AQUA High Power Operation Instructions
Terminal locations - E1 enclosures
Take the following position of the terminals into consideration when designing the cable access.

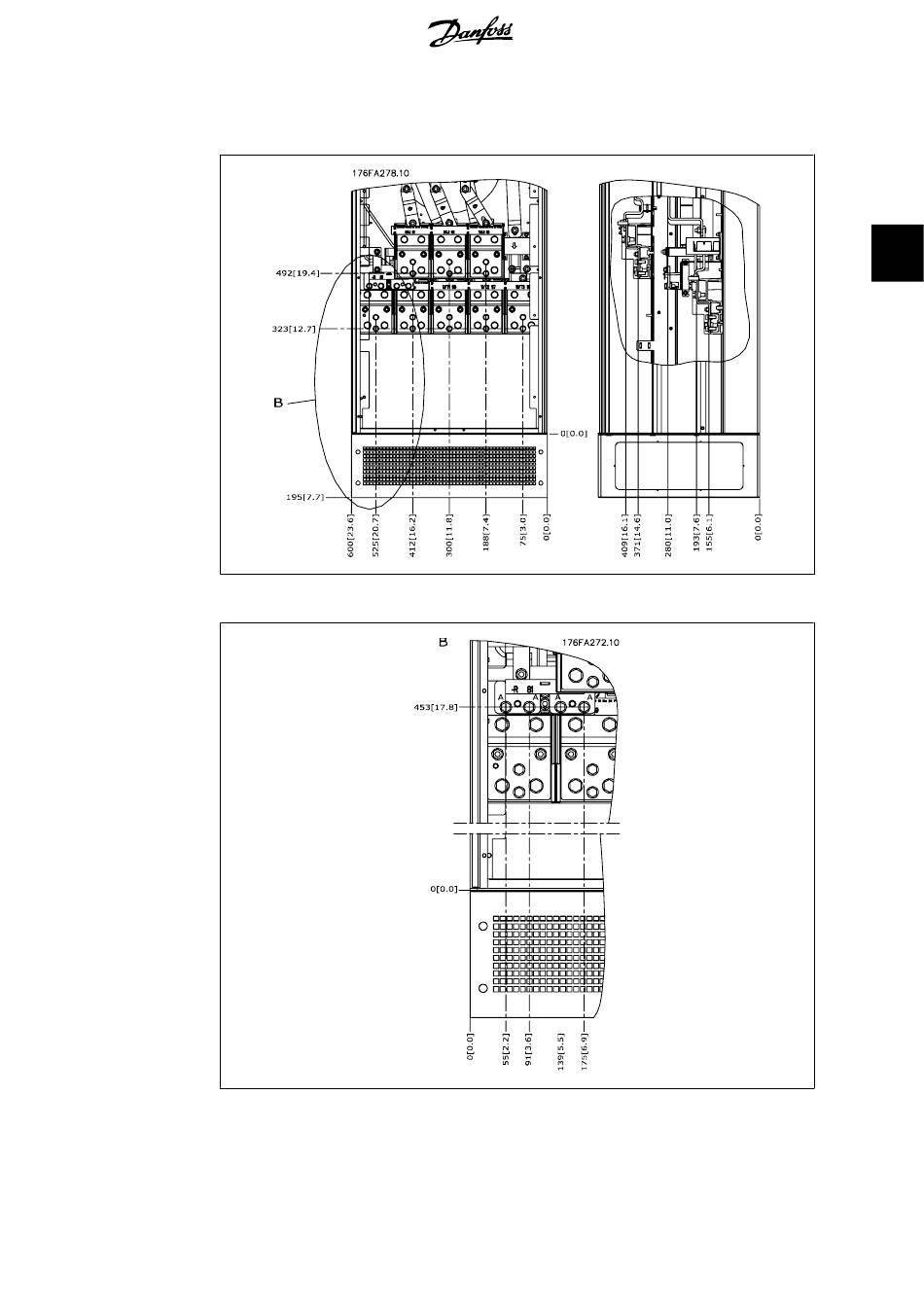

Illustration 3.10: IP21 (NEMA Type 1) and IP54 (NEMA Type 12) enclosure power connection positions
Illustration 3.11: IP21 (NEMA type 1) and IP54 (NEMA type 12) enclosure power connection positions (detail
B)
®
