3. How to Install
3

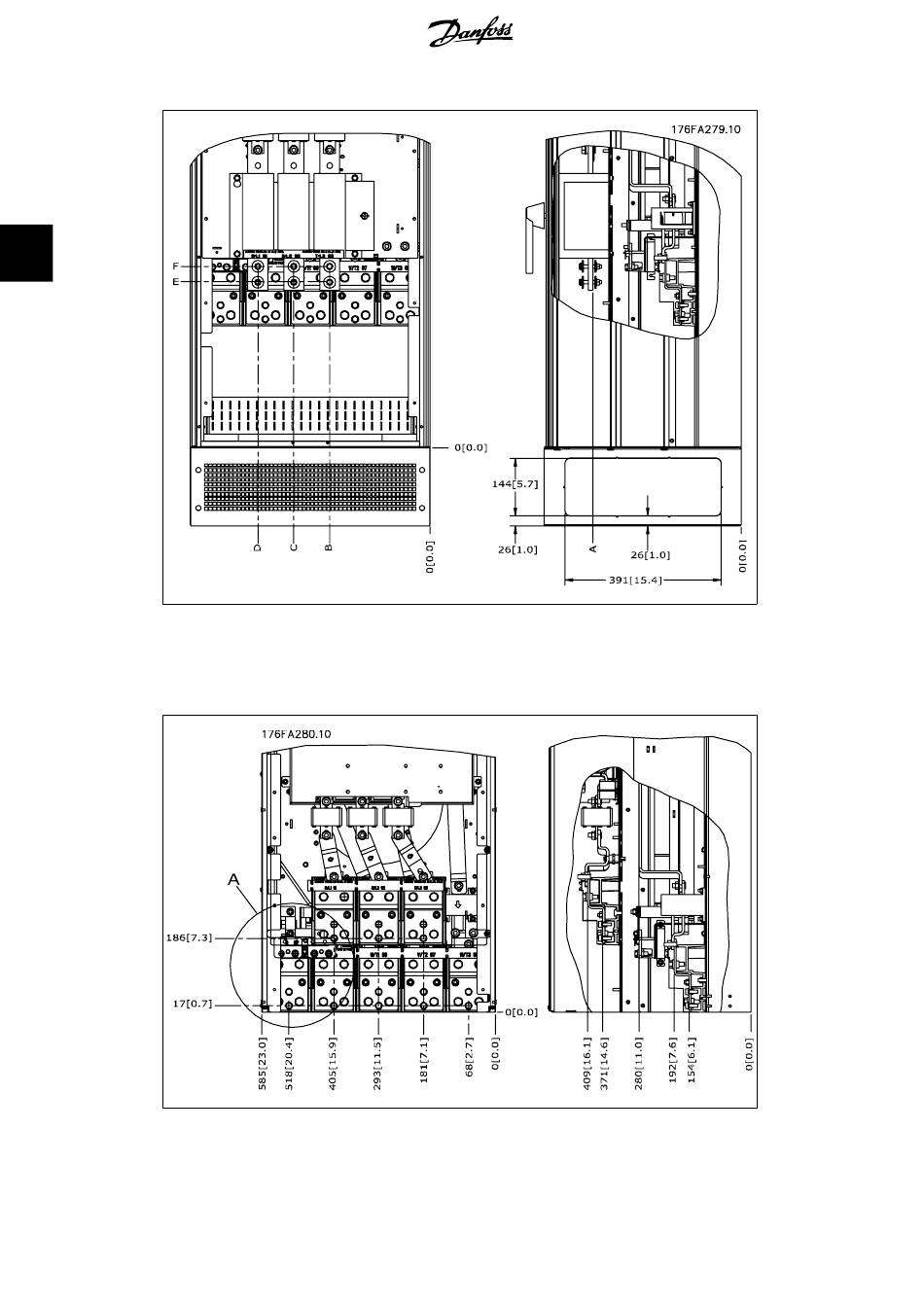

Illustration 3.12: IP21 (NEMA type 1) and IP54 (NEMA type 12) enclosure power connection position of
disconnect switch
Terminal locations - E2 enclosures
Take the following position of the terminals into consideration when designing the cable access.
Illustration 3.13: IP00 enclosure power connection positions
24
