VLT AQUA High Power Operation Instructions

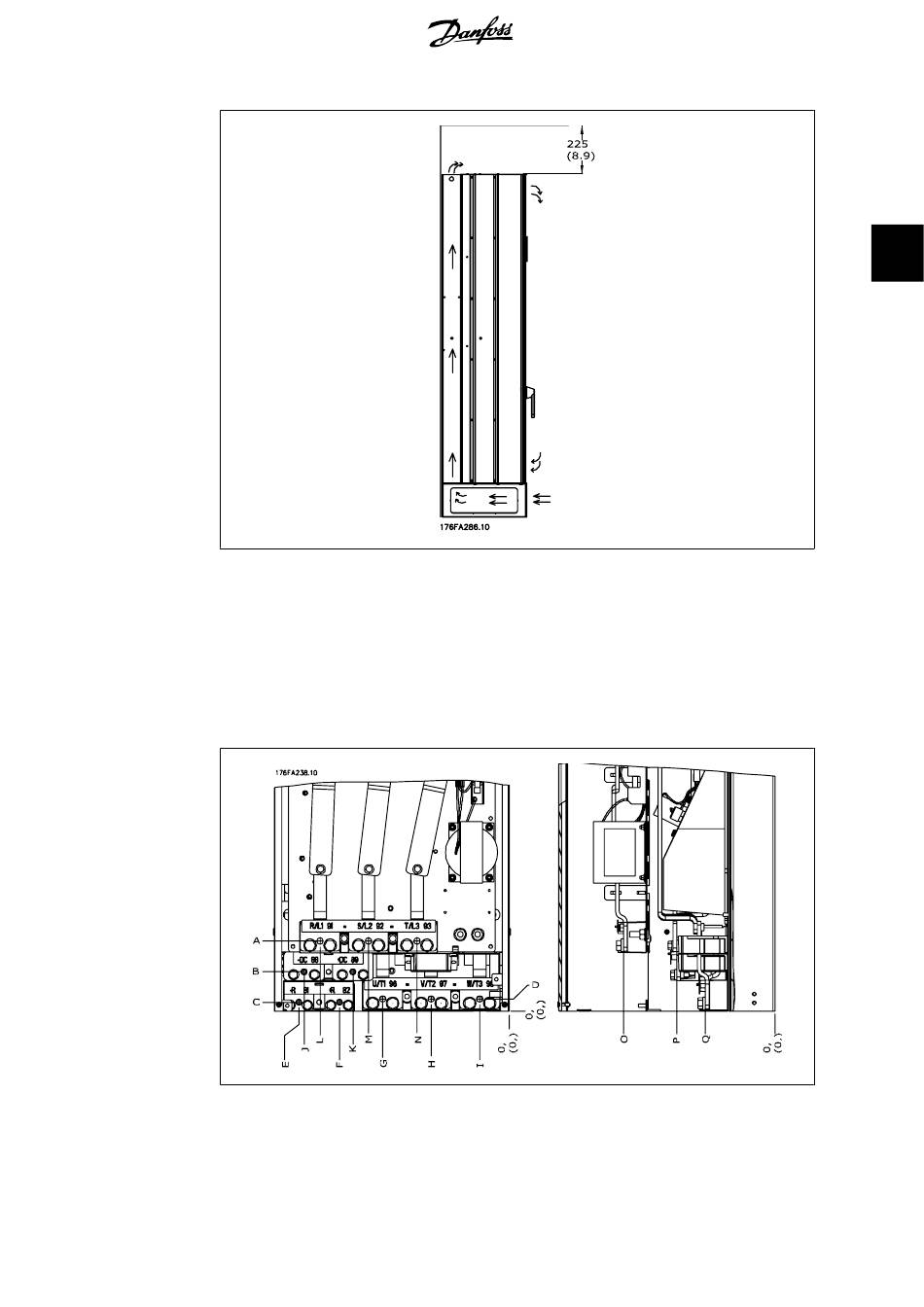

Illustration 3.7: Airflow direction and necessary space for cooling - Enclosure IP21/54, E1
Wire access
Ensure that proper cable access is present including necessary bending allowance. As the IP00
enclosure is open to the bottom cables must be fixed to the back panel of the enclosure where
the frequency converter is mounted, i.e. by using cable clamps.
Terminal locations
(D1 and D2 enclosures)
Take the following position of the terminals into consideration when you design for cables access.
Illustration 3.8: Position of power connections
®
