Chapter 2 Configuring and Upgrading the System

5.7.2 Installing PCI Card

Follow the procedure below to install the board to be connected to the PCI card slot.
(1)
Installing Low Profile PCI Card
1. Shut down the OS.
2. The server is automatically powered off.
3. Disconnect the power cords from the outlets.
4. Remove the CPU/IO module according to Chapter 2 (5.4.1 Removing CPU/IO Module).

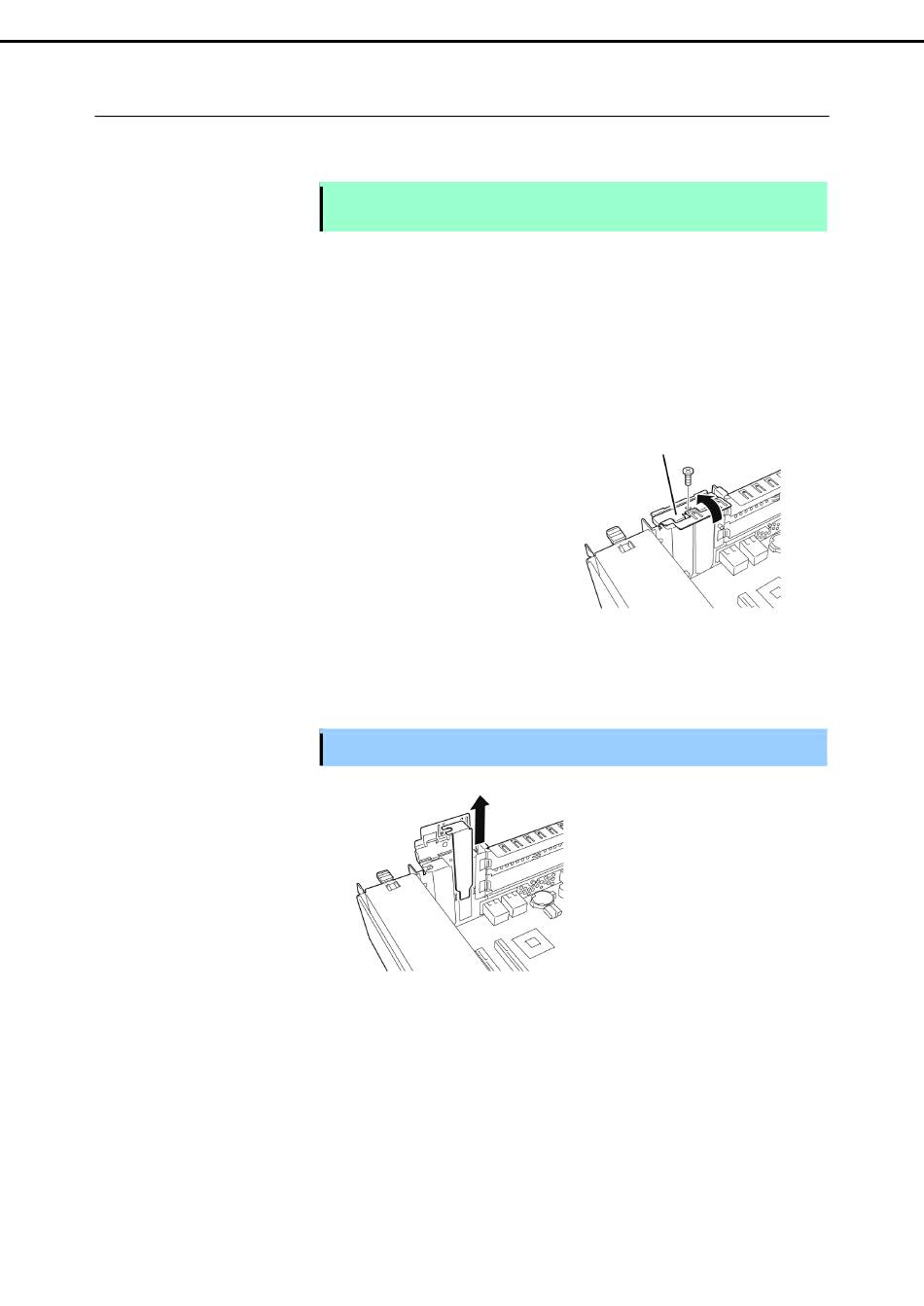

5. Remove one screw that secures the stopper and
remove the stopper.
6. Verify the location of the CPU socket.
7. Remove the PCI bracket cover.
138
To install the PCI card, make sure the shape of the board connector matches with the
Note
shape of the PCI card slot connector.
Important Keep and store the removed PCI bracket cover with care.
Express5800/R320c-E4, R320c-M4 Maintenance Guide (Linux)
5. Installing Optional Devices
Stopper
