5.3.2 Removing 2.5-inch Hard Disk Drive

Follow the procedure below to remove the hard disk drive.
1. Shut down the OS.
The system turns off automatically.
2. Remove the front bezel.

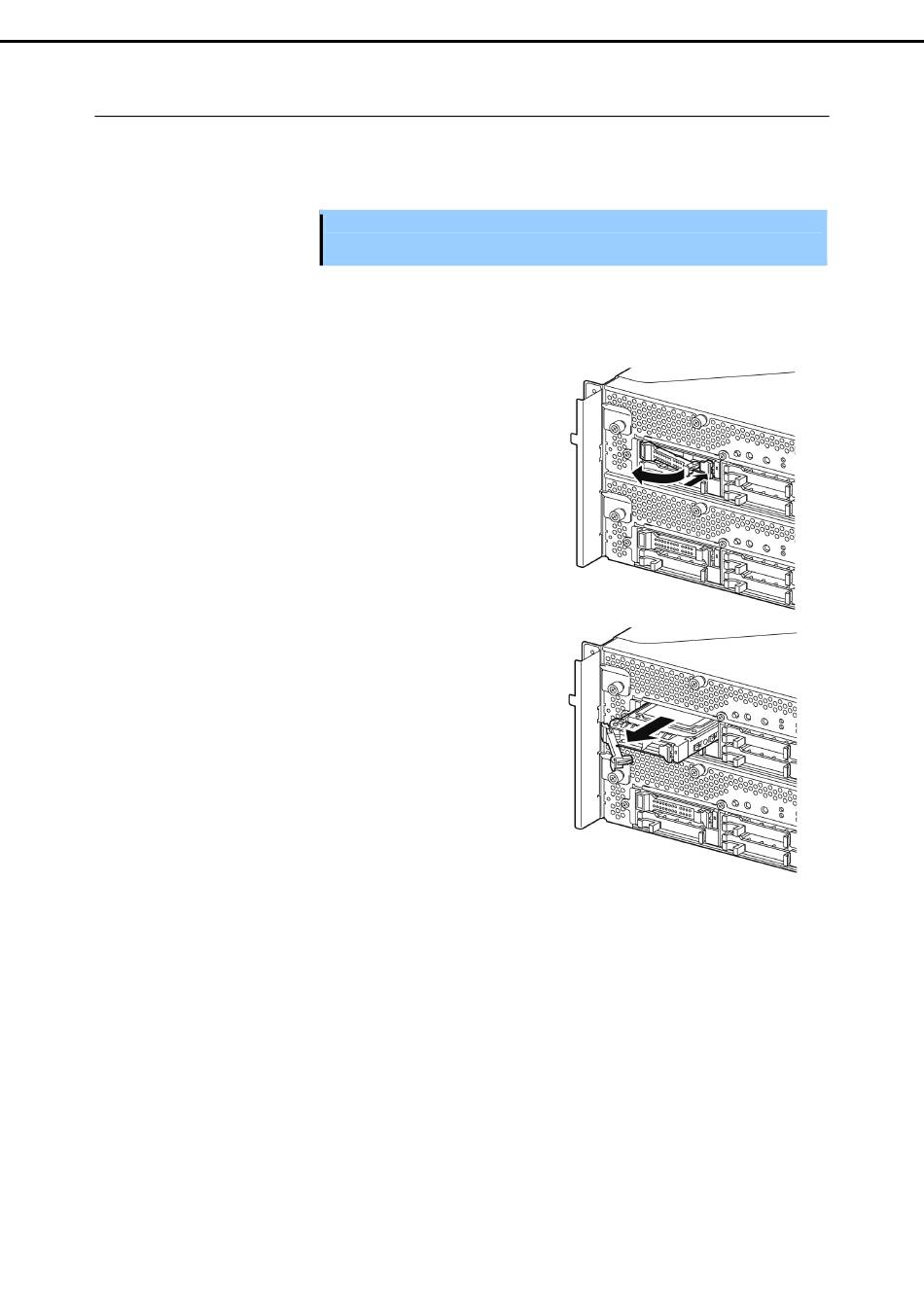

3. Push the lever of the hard disk to unlock the drive,
and pull the handle toward you.
4. Hold the handle and hard disk drive to pull them off.
5. Install the dummy tray in an empty tray according to
procedures described in Chapter 2 (5.3.1 Installing
2.5-inch Hard Disk Drive).
Ensure to install the dummy slot in the empty slot to
improve the cooling effect within the server.
