NEC Express5800/R320c-E4 Maintenance Manual page 89

Chapter 1 Maintenance
4. Follow the guideline shown at the bottom of the screen, and press <Esc> key.

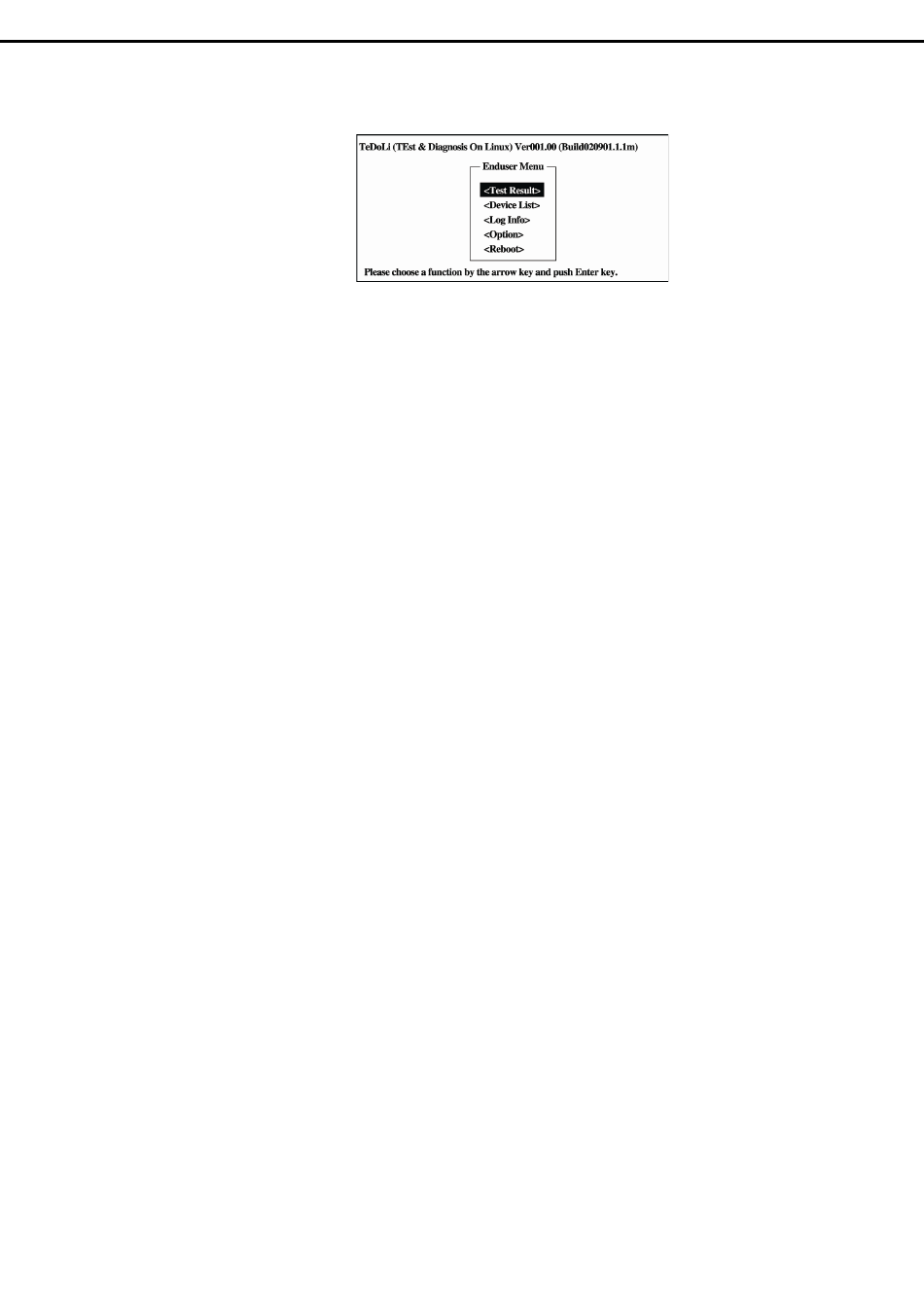

The Enduser Menu below is displayed.
<Test Result>
Shows the diagnostics completion screen of the above diagnostics.
<Device List>
Shows a list of connected devices.
<Log Info>
Shows the log information of the diagnostics. Log information can be saved. To save it, connect a FAT
formatted removable media, and then select Save(F).
<Option>
Optional features can be used from this menu.
<Reboot>
Reboots the server.
5. Select Reboot in Enduser Menu.
The server restarts. Remove EXPRESSBUILDER DVD from the drive.
System Diagnostics is now completed.
Express5800/R320c-E4, R320c-M4 Maintenance Guide (Linux)
11. System Diagnostics
89
