CHARGING THE AIRCRAFT BATTERY

Battery Charger Overview

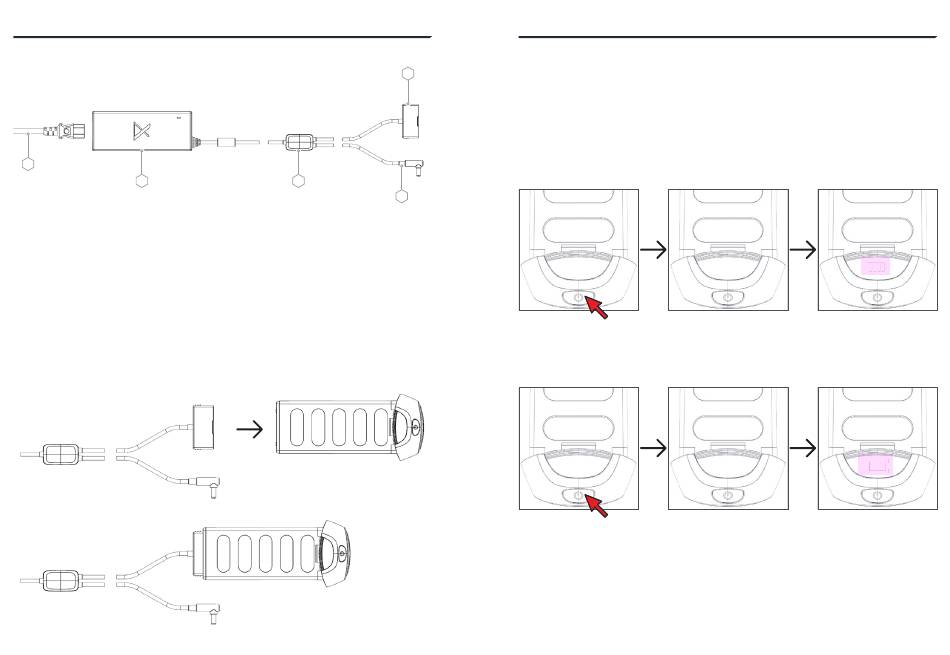

Below is a diagram identifying the different components of the battery charger
1
2
Components of the battery charger:
1. Power Lord Cable
2. Adapter
3. Chanrger Splilter Block
4. Aircraft Battery Connector
5. Ground Station Battery Connector
Follow the steps below to charge the aircraft battery:
1. Plug in the charger to a wall socket for power supply.
2. Plug square connector into the back of the battery.
3. Battery display screen will show the percentage battery state during charge.
4. When the percentage is at 100% the battery is fully charged.
26
4
3
5
CHARGING THE AIRCRAFT BATTERY
Battery Charger Overview
The battery charge level can be checked even if it is not installed in the aircraft by following these steps:
1. Press and release power switch.
2. Battery level percentage will be displayed.
3. Followed by a battery level icon.
4. The display will go blank and the battery will power off.
Fully Charged Battery
Press and release the battery switch. The battery level percentage will
Low Power Battery
Press and release the battery switch. If the power status is low (under 10%),
the digits and icon will blink to draw
users' attention. Blink interval are 0.5s.
100%
Followed by a battery level icon.
be displayed.
10%
*The OLED display will automatically
turn off after 10s.
Evolve User Manual V1.0 by XDynamics Limited 27
