TURNING ON THE REMOTE CONTROLLER

When powering on the Ground Station, be sure to provide at least 3 to 6ft (1 to 2m) of space between the controller and
the aircraft. (If the controller and aircraft are too close together the system may not properly connect).
Press and release the power switch and then press and hold the switch until the Ground Station screens come on (this
double press procedure assures that accidental power ups will not happen). While the controller is initializing, power on
the aircraft battery (Refer to Turn On/Off aircraft).
It is important to power on the controller and then the aircraft, in that specific order, to achieve a proper RC
connection.

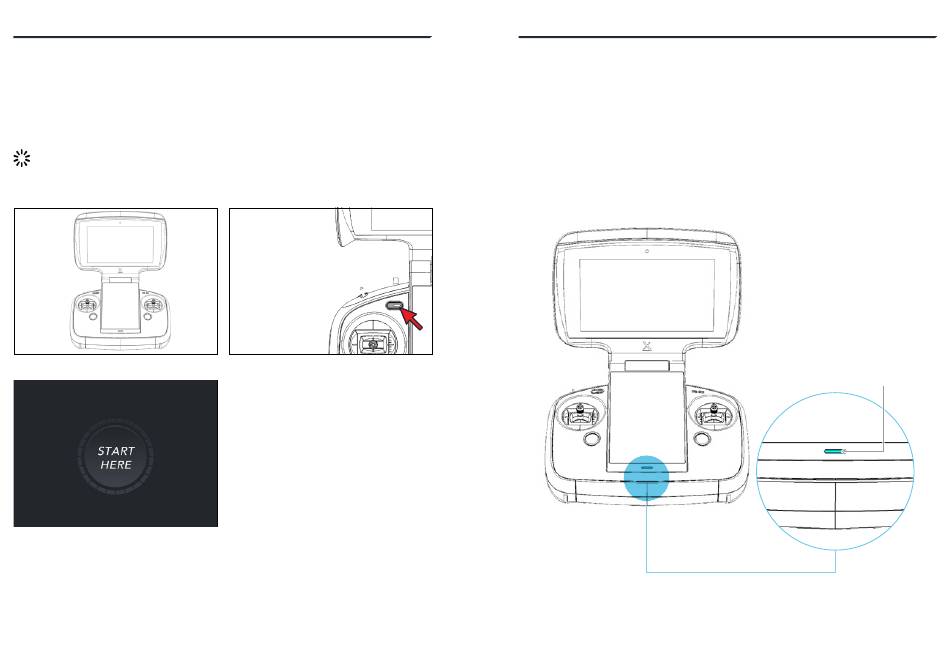

See diagram for turning on the Ground Station below
See diagram for Ground Station screen below
Press ' START HERE ' on the Evolve home screen to complete the
connection as instructed by the upper screen notice.
30
1. Short and Long Press Power Button
2. Blue Light Indicates
3. Device Power On

GROUND STATION LED INDICATORS

The Ground Station LED indicator is located below the bottom screen. The LED indicates the current state of the Ground
Station battery.
When on charge, the Ground Station LED will be blinking Amber, until the battery is fully charged and the LED stops
blinking (constant off).
During normal operation, the LED will be displayed in constant blue. When the Ground Station battery level has dropped
to a point requiring immediate recharge, the LED will turn to Amber.
It is not recommended to start a new flight with an amber indication on the LED.
GROUND STATION LED INDICATOR
Evolve User Manual V1.0 by XDynamics Limited 31
