Summary of Contents for XDynamics EVOLVE

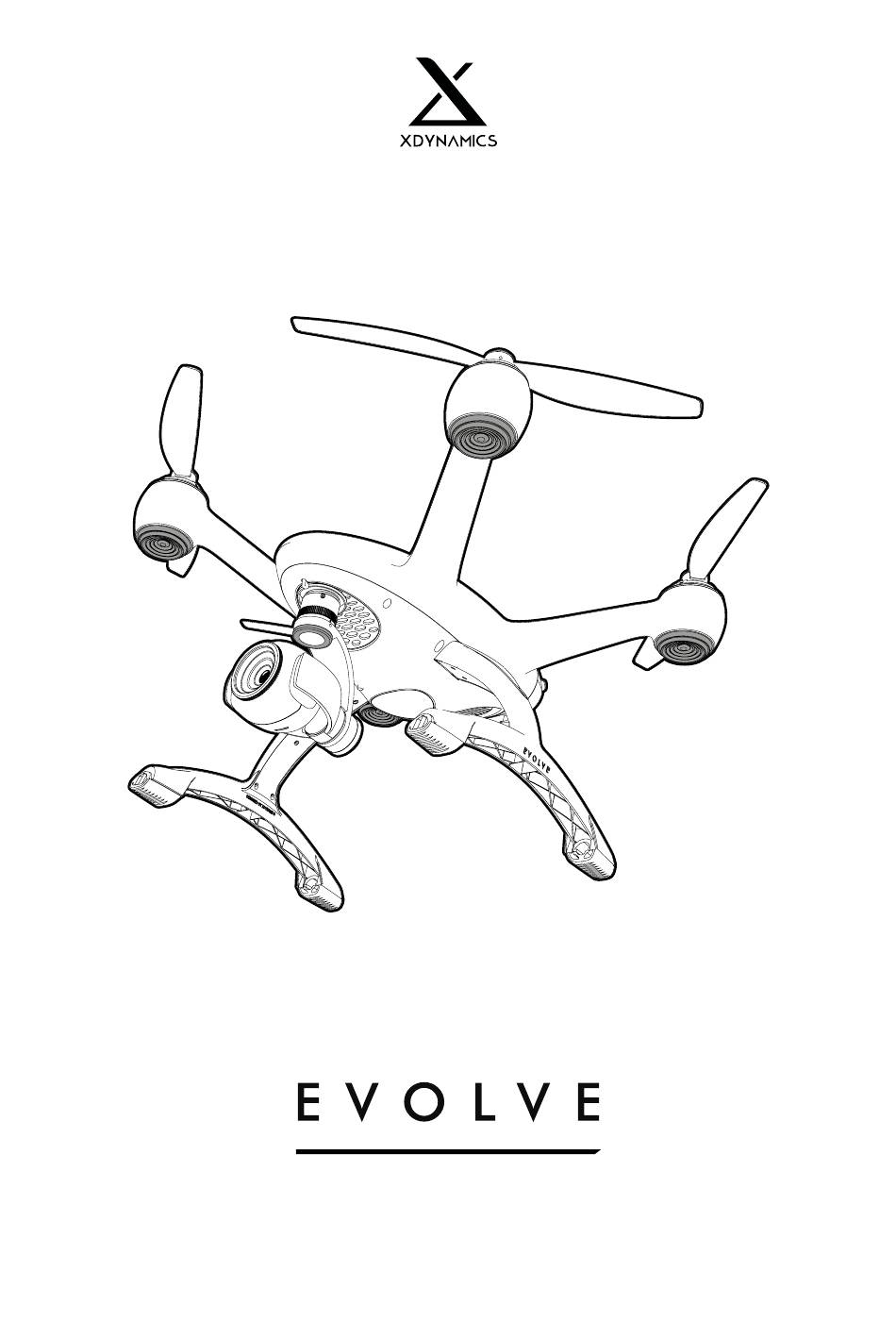

- Page 1 U S E R M A N UA L v 1 . 0 2019.01...
- Page 2 WHAT IS IN THE DOCUMENT To get you started quickly by creating an XDynamics account and ensure the Evolve Ground Station and aircraft can connect to our server to download any latest updates and register your product before your first flight.
- Page 3 Read the following information before using the Evolve our customers. XDynamics believes in guarding our customers privacy and will continue to strive for more secure aircraft products in the future.
- Page 4 *XDynamics LLC is exempt from the user‘s liabilities for damage(s) to person/s or property, or injuries incurred directly or indirectly from the use of this product in the following conditions: •...
-
Page 5: Table Of Contents
CONTENTS PRODUCT PROFILE CAMERA AND GIMBAL SECTION _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 57 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _8 AIRCRAFT CALIBRATION _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 58... -
Page 6: Product Profile
Within this section, the Evolve aircraft and Ground Station are explained and the individual components are listed. The Evolve aircraft and Ground Station form a powerful system offering a true ultra low latency FPV video downlink with 4K local video recording, combined with an out the box, ready to use fully integrated dual screen controller. -
Page 7: Aircraft Annotated Diagram
GROUND STATION ANNOTATED DIAGRAM AIRCRAFT ANNOTATED DIAGRAM Detailed Schematic of the Evolve aircraft Detailed Schematic of the Evolve remote controller Propellers – 2 CW and 2 CCW Selfi Camera 4K Camera Proximity and Ambient Light Sensor LED Light FPV Display 7” Screen... -
Page 8: Aircraft
Then ensure the orientation of the battery is correct, the OLED display should be pointing upwards. Insert by pushing the battery gently into the aircraft until the two latches of the battery engage into the aircraft. Evolve User Manual V1.0 by XDynamics Limited... -
Page 9: Removing The Aircraft Battery
Remove the battery by squeezing the battery mechanical latches and pulling the battery out of the aircraft. Flight control of the Evolve is accomplished by manipulating the control sticks on the ground controller. Proper orientation must always be considered when flying the aircraft. A basic rule of thumb when remote piloting a aircraft is to realize that when the aircraft’s nose, or front end, is facing the pilot the control inputs for roll and yaw are backwards. -
Page 10: Beginner Mode
User may enable Beginner Mode at the Settings Page. After enabling the Beginner Mode, the aircraft can only be flown The Evolve aircraft has 3 flight modes that the operator can choose from. The modes are selected by a 3-position switch within a spherical radius of 30m from the take-off point. -
Page 11: Turn On The Aircraft
The battery has a dual press feature to avoid the user accidentally turning on the battery with a single button press. Press and release the battery switch then press again and hold battery switch until the XDynamics logo runs across the screen. -
Page 12: Turning On/Off Aircraft Battery
LED Powering Up / Arming Flight Control (Green / Yellow Alternating Fast Blinking LED) Note: Never short out any of the pins of the battery or try to connect to any other equipment other than the Evolve aircraft and the supplied charger. - Page 13 (Consult smart pilot / troubleshooting for more details) Normal Flight Mode (Red Front / Blue Rear Solid LED) - All systems functional If the ‘Malfunctioning During Flight’ LED warning is showing land aircraft immediately. Evolve User Manual V1.0 by XDynamics Limited...
-
Page 14: 4K Camera / Gimbal Indicators
YELLOW & GREEN toggles alternately SD Card Failure When the aircraft battery reaches 10% charge, a Force Landing will be activated. YELLOW on High Temp / SD Card Missing YELLOW & GREEN toggles alternately Firmware Upgrading Evolve User Manual V1.0 by XDynamics Limited... -
Page 15: Charging The Aircraft Battery
Press and release the battery switch. If the power status is low (under 10%), *The OLED display will automatically the digits and icon will blink to draw turn off after 10s. users‘ attention. Blink interval are 0.5s. Evolve User Manual V1.0 by XDynamics Limited... -
Page 16: Ground Station
CHARGING THE AIRCRAFT BATTERY Power Status Range Indications When determining the estimated flight time and distance range of any aircraft flight, the operator needs to have an idea of how much flight time is remaining according to the current power percentage left. Below describes the estimated flight times for battery percentages. -
Page 17: Turning On The Remote Controller
Device Power On See diagram for Ground Station screen below GROUND STATION LED INDICATOR Press ‘ START HERE ’ on the Evolve home screen to complete the connection as instructed by the upper screen notice. Evolve User Manual V1.0 by XDynamics Limited... -
Page 18: Flight Mode (Mode 2)
(Left) (Right) Yaw Clockwise (Aircraft rotates CW) Throttle – Decrease (Aircraft lowers down) Move left thumbstick right Move left thumbstick down Keep right thumbstick centred Keep right thumbstick centred (Left) (Right) (Left) (Right) Evolve User Manual V1.0 by XDynamics Limited... - Page 19 (Right) Backwards Movement – (Aircraft tilts backwards) Roll Right – (Aircraft moves right) Keep left thumbstick centred Keep left thumbstick centred Move right thumbstick down Move right thumbstick right (Left) (Right) (Left) (Right) Evolve User Manual V1.0 by XDynamics Limited...
-
Page 20: Prepare The Ground Station
Plug silver round connector into the remote controller. When the LED indicator on the GS turns off battery is fully charged. Please note the Ground Station battery can also be charged simultaneously with the Evolve aircraft battery. Steps for preparing the remote controller: First ensure the battery is turned OFF. -
Page 21: Application
SCREEN INTRODUCTION See below indicators for reference. APPLICATION Evolve User Manual V1.0 by XDynamics Limited... -
Page 22: Warnings And Alerts
Alert button at the top right corner. Tapping the Alert button on the screen will bring you to the Warning List. You may check all the existing warnings and tap the suggested action to solve the issue. Evolve User Manual V1.0 by XDynamics Limited... -
Page 23: Settings Menu
The settings menu allows the operator to configure the aircraft to suit their preferences. Settings include aircraft, The Evolve aircraft system is pre linked from the factory. If there‘s a situation which requires the Ground Station and the Controller, Battery, Gimbal, Map and General. -
Page 24: Map Preloading (Offline Map)
Tap the Smart GPS Button and select Waypoints. Smart Pilot System will indicate the download progress Select the Fly and Point. Fly the aircraft to the interest point and tap C1 to record. Tap “Start” to execute. Evolve User Manual V1.0 by XDynamics Limited... -
Page 25: Camera And Gimbal Section
Users can Crop / Apply Filters / Adjust Brightness / Change Contrast / Saturation / Sharpness on this interface. Media on the controller is a DVR recording from the FPV downlink. For full quality images, remove the SD card and upload files to your computer. Evolve User Manual V1.0 by XDynamics Limited... -
Page 26: Wi-Fi Network
To listen to voice alerts form the Smart Piot APP, the Ground Station must be connected to connect to Bluetooth capable devices. Navigate to the Bluetooth page on the Smart Pilot APP and connect to the desired Bluetooth device. Be sure to make Bluetooth devices detectable to the Ground Station. Evolve User Manual V1.0 by XDynamics Limited... -
Page 27: Flight
1. Weather Limitations Although the Evolve is a high performance aircraft, weather can be a crucial factor to flight performance and safe operations. Caution must be observed when it comes to weather planning. Effective weather planning breaks down to these criteria: •... -
Page 28: Flight System Limitations
FLIGHT SYSTEM LIMITATIONS 3. Ground Station PreFlight Checklist Below are the flight limitations of the Evolve: • Wi-Fi Internet Service (Connected) Speed • Maps (Loaded) • Assenting – 16.4ft/s (5m/s) • Waypoints (Loaded if necessary) • Descending – 6.6ft/s (2m/s) •... -
Page 29: Ensure Correct Propeller Alignment
ATTACHING AND DETACHING THE PROPELLERS ENSURE CORRECT PROPELLER ALIGNMENT The Evolve aircraft employs a sturdily constructed attach and detach propeller system. With a quick half turn installation The propellers need to be mounted with the correct CW (clock-wise) and CCW (counter-clock-wise) configurations. Two the aircraft can be ready to fly within minutes of pulling it out of the pack. -
Page 30: Preparing Aircraft For Flight
Removing Filter Cover (Allows for cleaning) For the first flight of the Evolve be sure to have a level surface available that is clear of obstacles and loose debris. Ensure that there are no overhead structures or trees that might interfere with the Evolve connecting to GPS satellites. Do not To remove the camera filter unscrew CCW as shown in the diagram below. -
Page 31: Aircraft Calibration
Once complete, the APP will indicate a failed or successful calibration. If failed switch off the aircraft and controller power and restart at Step 1. Accelerometer calibration is only required when requested by the Smart Pilot System. Evolve User Manual V1.0 by XDynamics Limited... -
Page 32: Aircraft Calibration
Compass Calibration Procedures: The electronic compass on the Evolve aircraft is used to determine the direction which aircraft is pointing to in reference to true north. The compass is a sensitive sensor that is affected by electromagnetic interference from sources such as radio towers and high voltage power lines. -
Page 33: Arming The Aircraft
ARMING PRE-CHECK The Evolve makes several internal calibrations and adjustments before each flight. If for any reason, any of the vital sensors or internal equipment has a safety issue, the aircraft will not ARM upon the ARM command given by the operator’s stick and the LEDs under each motor will turn RED. -
Page 34: Disarming The Aircraft
DISARMING THE AIRCRAFT For ease of operation and to assist beginner operators, the evolve aircraft can take off and land automatically. After a landing the aircraft, hold the throttle stick down and to the left to disarm the motors. The LED indicators will change color followed by a long beep and propellers will stop spinning. -
Page 35: Auto Landing
RETURN TO HOME For ease of operation and to assist beginner operators, the evolve aircraft can take off and land automatically. This feature brings the aircraft back to the location it first acquired a home lock position utilizing the GPS signal. Ensure... -
Page 36: Return To Home
Return to home successful Press and hold the Return to Home button for 3 seconds Return to home failed Press the Cancel Button to stop the Return to Home process Evolve User Manual V1.0 by XDynamics Limited... -
Page 37: Determining The Return To Home Altitude
DETERMINING THE RETURN TO HOME ALTITUDE Depending on the flight conditions and obstacles in the return to home flight path, the operator can choose a safe return altitude for the Return to Home function. This altitude should be set up before flight under the APP configuration tab. A low altitude setting is not recommended for obstacle clearance (such as trees or buildings). -
Page 38: Product Specification
Supported SD Card Types Micro SD (SD/SDHC/SDXC) / Max. 64GB Connectivity Micro USB 2.0 Weight (including RTC battery) 4.2 oz (120 g) Dimensions 2.28in x 1.96in x 2.09in (58mm x 50mm x 53mm) Encoding H.264, H.265 Evolve User Manual V1.0 by XDynamics Limited... - Page 39 Weight (including battery) 3.40 lbs (1.55kg) Voltage 11.1V @ 4A(max) Battery Type Lithium-ion Polymer Energy 66 Wh Net Weight <440 g Dimensions 156.7 mm*68.4 mm*40.7 mm Operating Temperature 0 to 40°C Max Charging Voltage Evolve User Manual V1.0 by XDynamics Limited...
- Page 40 Battery Charging • Never use or charge swollen, leaky, or damaged batteries. If your batteries are abnormal, contact XDynamics • or an XDynamics authorized dealer for further assistance. The Intelligent Flight Battery is designed to stop charging when it is full. However it is a good practice to •...
- Page 41 DO NOT attach the batteries to wall outlets or car charger sockets directly, and always use a XDynamics approved adapter. XDynamics takes no responsibility if the battery is charged using a non-XDynamics charger. • Never leave the battery unattended during charging. DO NOT charge the battery near flammable materials or on flammable surface such as carpet or wood.
- Page 42 U S E R M A N UA L v 1 . 0 2019.01...
