CHARGING THE AIRCRAFT BATTERY

Battery Charger Overview

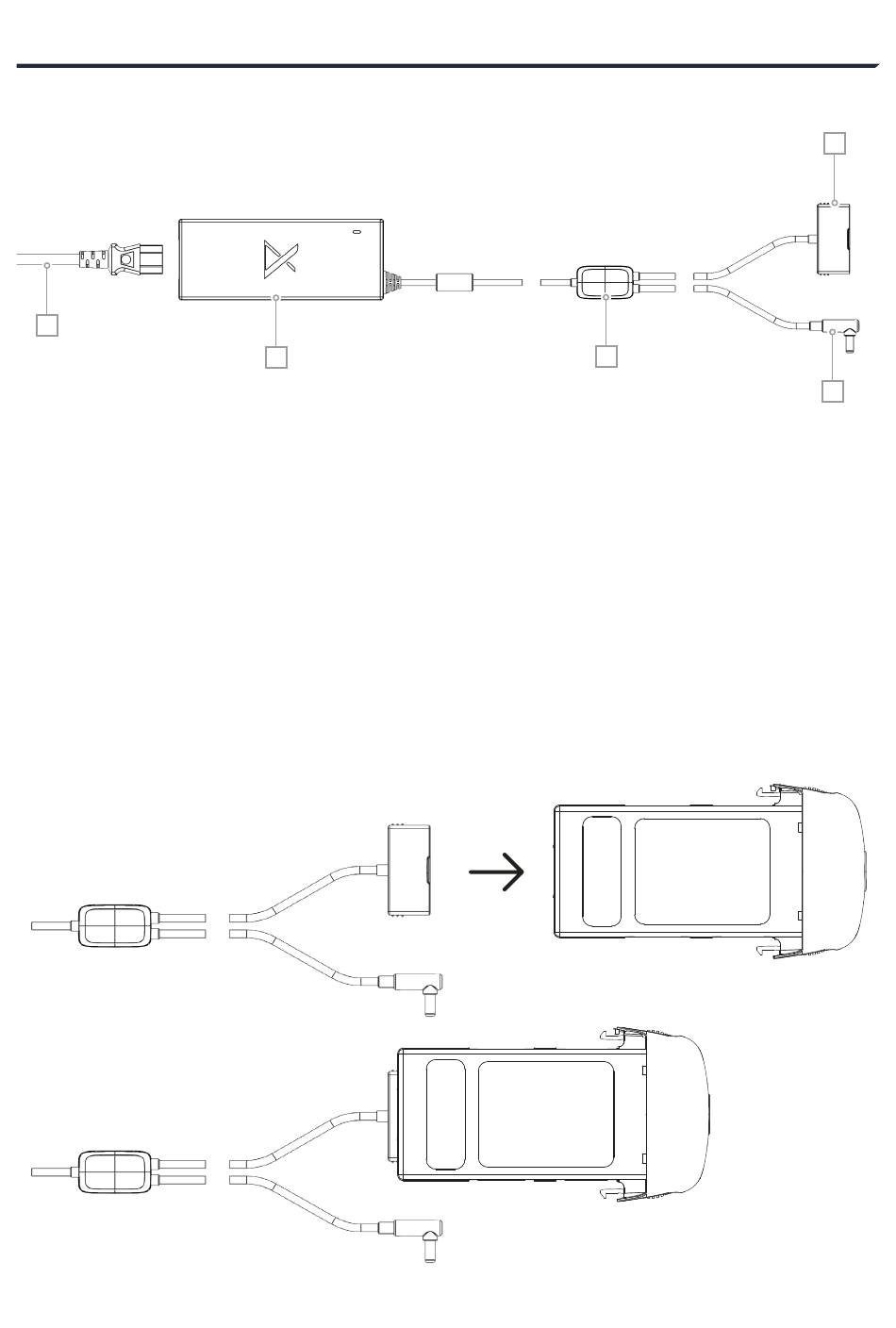

Below is a diagram identifying the different components of the battery charger
1
Components of the battery charger:
1. AC Power Cord/Cable
2. Adaptor
3. Charger Spliter Block
4. Aircraft Battery Connector
5. Ground Station Battery Connector
Follow the steps below to charge the aircraft battery:
1. Connect charger to a power source.
2. Connect Aircraft Battery to the charger's Aircraft Battery Connector.
3. The Aircraft Battery is fully charged when all of the Battery Status LEDs turn off.
