ENSURE CORRECT PROPELLER ALIGNMENT

The propellers need to be mounted with the correct CW (clock-wise) and CCW (counter-clock-wise) configurations. Two
propellers are marked with white rings and two propellers have no markings. Mount the propellers with the white rings to
the motors with a white ring on top. Please follow the steps on the following page to ensure all propellers are securely in
place.

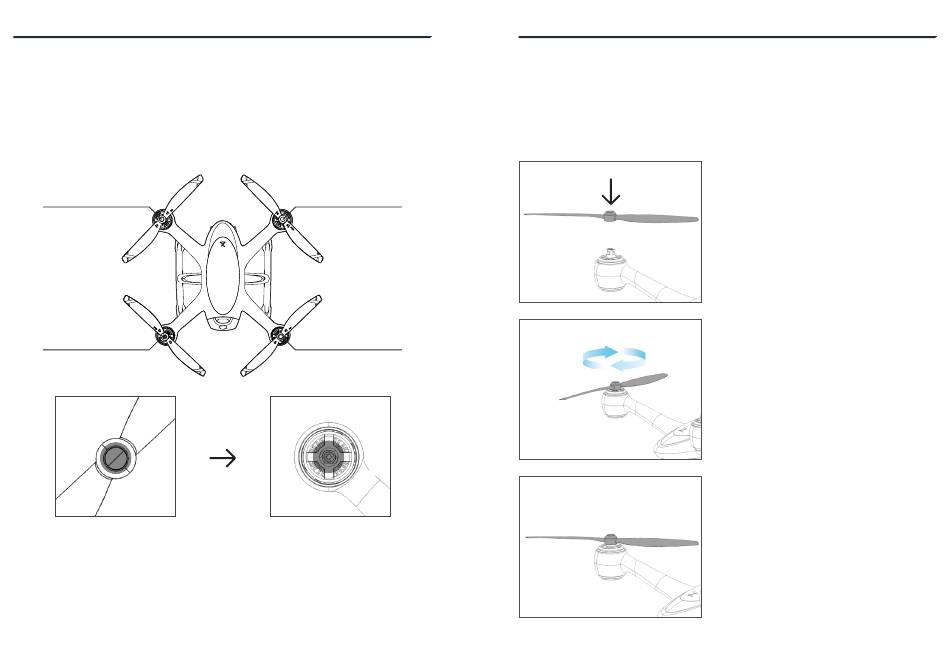

See diagram for attaching and detaching the propellers
CW
CCW
Ensure that both CW props with white circle markings match motors with white circle markings.
Ensure that both CCW props with no circle markings match motors with no circle markings.
54

ATTACHING AND DETACHING THE PROPELLERS

The Evolve aircraft employs a sturdily constructed attach and detach propeller system. With a quick half turn installation
the aircraft can be ready to fly within minutes of pulling it out of the pack. To detach the propellers follow the steps below
in reverse. Before installing the props, please make sure that the pre-filght check list is complete.
See diagram for attaching and detaching the propellers
CCW
Step 1
CW
Step 2
Step 3
Step 1 - Ensure that the CW / CCW direction of the propeller is
aligned with the direction of the motor.
Step 2 - Place the propeller on top of the motor and apply a
downwards twisting force that matches the direction of the
arrow shown on top of the propeller.
Step 3 - Keep twisting the propeller with downwards force
until the red dot on the propeller and the do on the motor are
aligned. Once you release the downward force, the propeller
should pop up and lock securely into place. Confirm this is
secure by twisting the propeller left and right and checking
that the propeller is securely fixed to the motor.
Evolve User Manual V1.0 by XDynamics Limited
55
