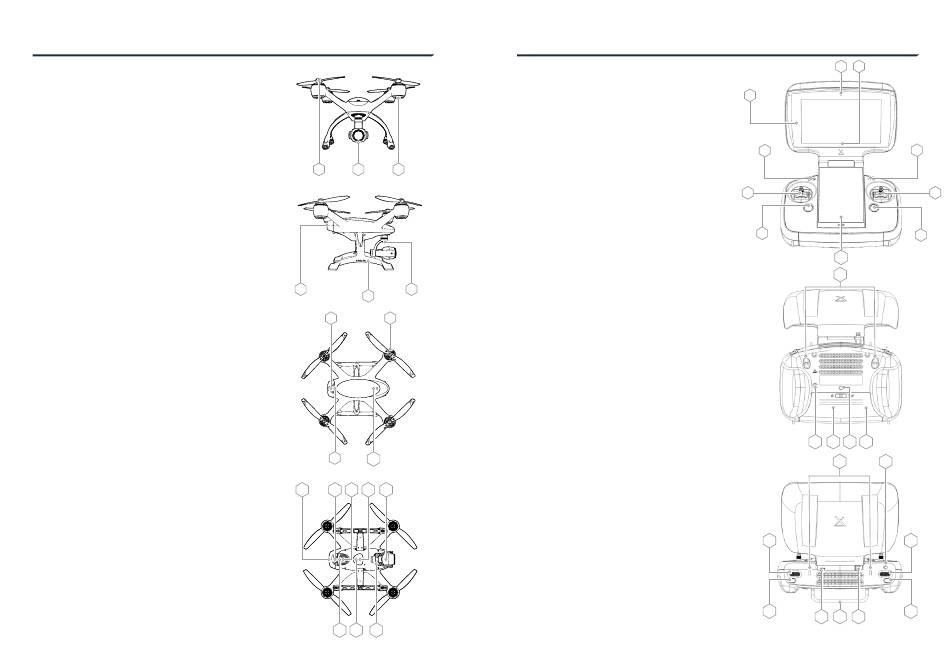

AIRCRAFT ANNOTATED DIAGRAM

Detailed Schematic of the Evolve aircraft
1. Propellers – 2 CW and 2 CCW
2. 4K Camera
3. LED Light
4. Battery
5. Gimbal
6. 4K Camera LED Status
7. Battery Display
8. Motor
9. Rear LED Indicator
10. Battery Release Latch (Lower)
11. FPV RF Heatsink
12. Optical Flow Camera
13. Camera SD Data Card
14. Battery Release Latch (Top)
15. Top Illuminated X Logo
16. USB Connection Port
17. Lidar (Altitude Sensor)
18. Pairing Button
10
1 2 3
4 6
5
8
7
9
10
11 12 13 14 15
16 17 18

GROUND STATION ANNOTATED DIAGRAM

Detailed Schematic of the Evolve remote controller
1. Selfi Camera
2. Proximity and Ambient Light Sensor
3. FPV Display 7" Screen
4. Power Button and LED Indicator
A. Blue = Battery Level is enough
B. Amber = Recharge Battery
5. Microphone
6. Control Stick (Left)
7. Control Stick (Right)
8. Take Off Button
9. Return Home Button
10. 5" Touch Screen
11. Customise Button C1+C2
12. Battery Connector
13. External Power to Battery Charger
14. Tripod Thread, (Standard Camera Thread)
15. Micro SD Storage Card
16. Lanyard points
17. Mode Select Switch
A. G - GPS Mode
B. C - Smart Mode
C. A – Attitude Mode
18. Camera Exposure Wheel
19. Gimbal Pan Control Wheel
20. Video Record Button
21. Photo Capture Button
22. HDMI Output
23. Desk Stand / Carrying Handle
24. USB Connector
1 2
3
4 5
6
8
9
10
11
12 14 15
13
16
17
18 19
20 21
22 23 24
Evolve User Manual V1.0 by XDynamics Limited 11
