Hinging The Ailerons; Additional Items Required; Tools And Supplies Needed - Seagull Models ZERO MS:123 Assembly Manual

KIT CONTEN.TS
1 Fuselage
2 Left wing panel
3 Right w ing p anel
4 Tail s et ( 2)
5 Canopy
6 Aluminum wing tube
7 Fiberglass cowl
8 Retracts landing gear
9 EP conversion pack
10 Hardware bag included
11 Retract covers

ADDITIONAL ITEMS REQUIRED.

0.75-0.91
0.91-1.25
Computer radio with 8 servos.
Glow plug to suit engine.
Propeller to suit engine.
Protective foam rubber for radio
system.
Silicone fuel line.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder's triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
www.seagullmodels.com
Note:
of the wing panels. Note the position of the
hinges.
2-stroke.
4-stroke.
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the aileron
until the T-pin is snug against the aileron. This
will help ensure an equal amount of hinge is
on either side of the hinge line when the aileron
is mounted to the wing panel.
there is only a slight gap. The hinge is now
centered on the wing panel and aileron.
Remove the T-pins a nd snug the aileron
against the wing panel. A gap of 1/64" or less
should be maintained between the wing panel
and aileron.

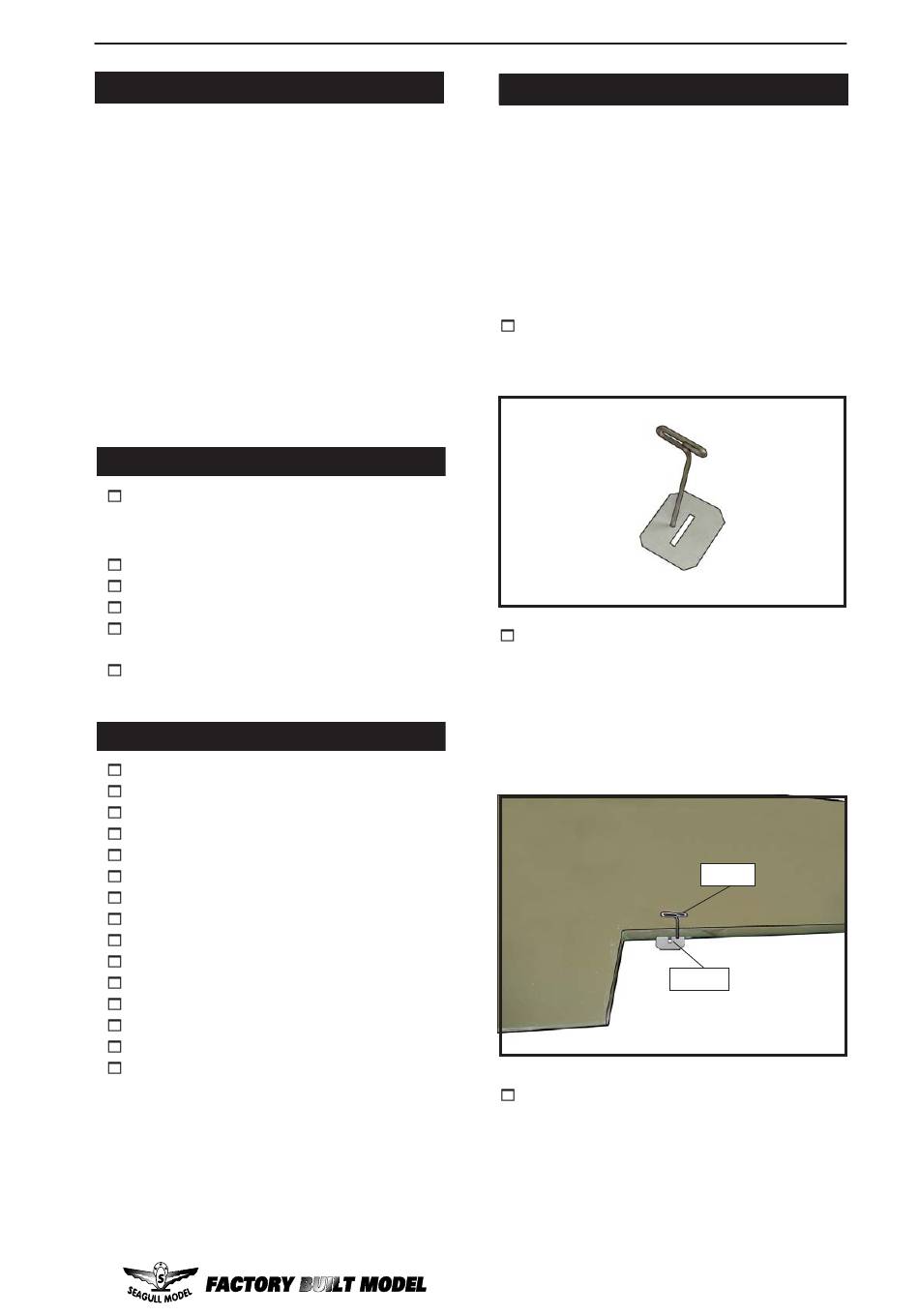

HINGING THE AILERONS .

The control surfaces, including the
ailerons, elevators, and rudder, are
prehinged with hinges installed, but
the hinges are not glued in place. It
is imperative that you properly
adhere the hinges in place per the
steps that follow using a high-quality
thin C/A glue.
1) Carefully remove the aileron from one
2) Remove each hinge from the wing panel
Hinge.
3) Slide the aileron on the wing panel until
T-pin.
3
