FC 100/ 200/ 300 DeviceNet

2. How to Install

2.1. Cabling

2.1.1. Cable Lengths
Baud rate
125k baud
250k baud
500k baud
2.1.2. Cable Specifications
The cable used should be according to ODVA
specifications.
Be aware that the ODVA "Flat Cable" is an
unscreened cable type, and is not suited for
use with frequency converters.
Max total cable Drop length
length Maximum per drop
500 meters (1640 ft.) 6 meters (20 ft.) for one drop
250 meters (820 ft.)
100 meters (328 ft.)
MG.33.D3.02 - VLT ® is a registered Danfoss trademark
Cumulative maxi-
mum
156 meters (512 ft.)
78 meters (256 ft.)
39 meters (128 ft.)

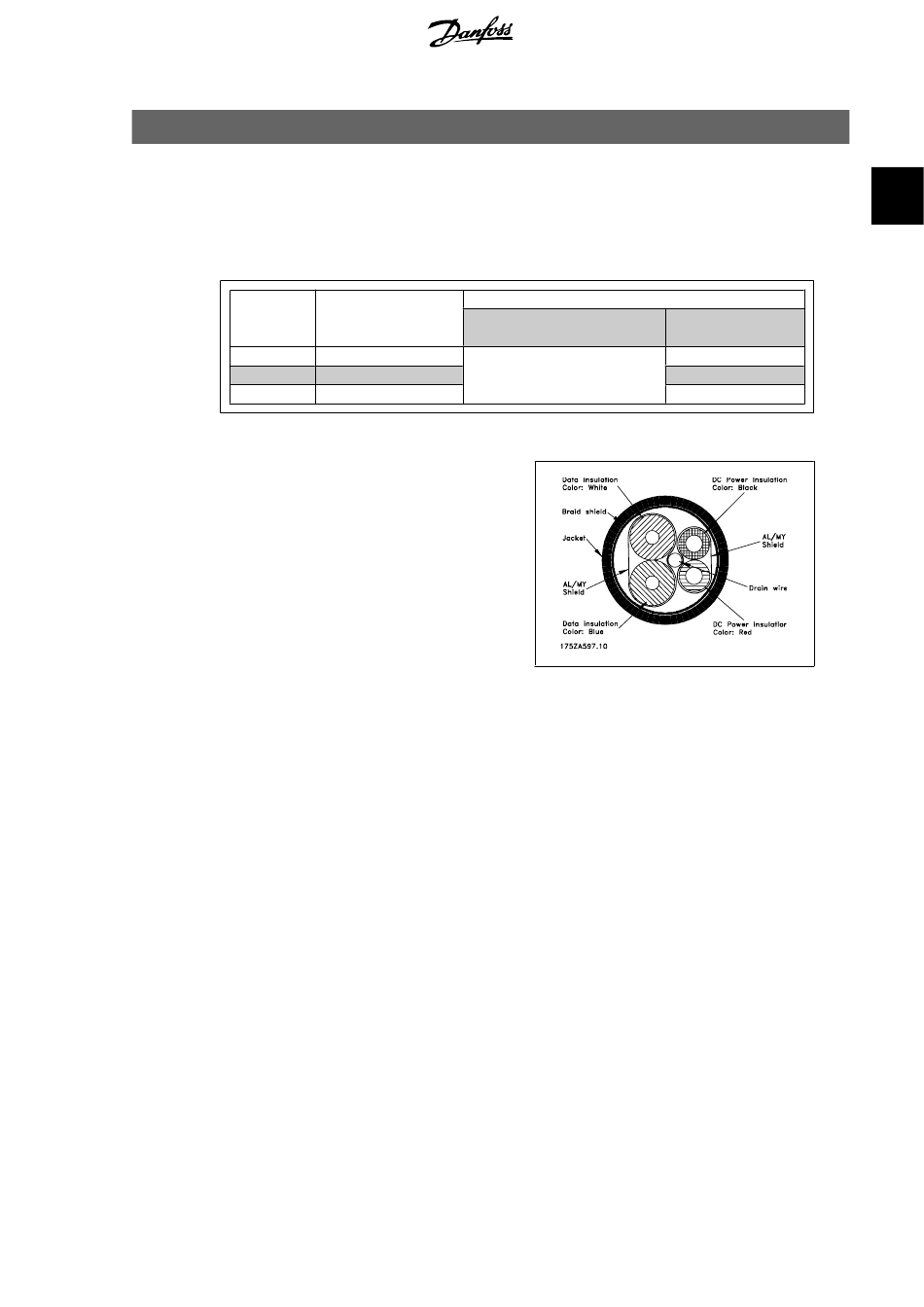

Illustration 2.1: ODVA "Thin Cable" cross sec-
tion
