FC 100/ 200/ 300 DeviceNet

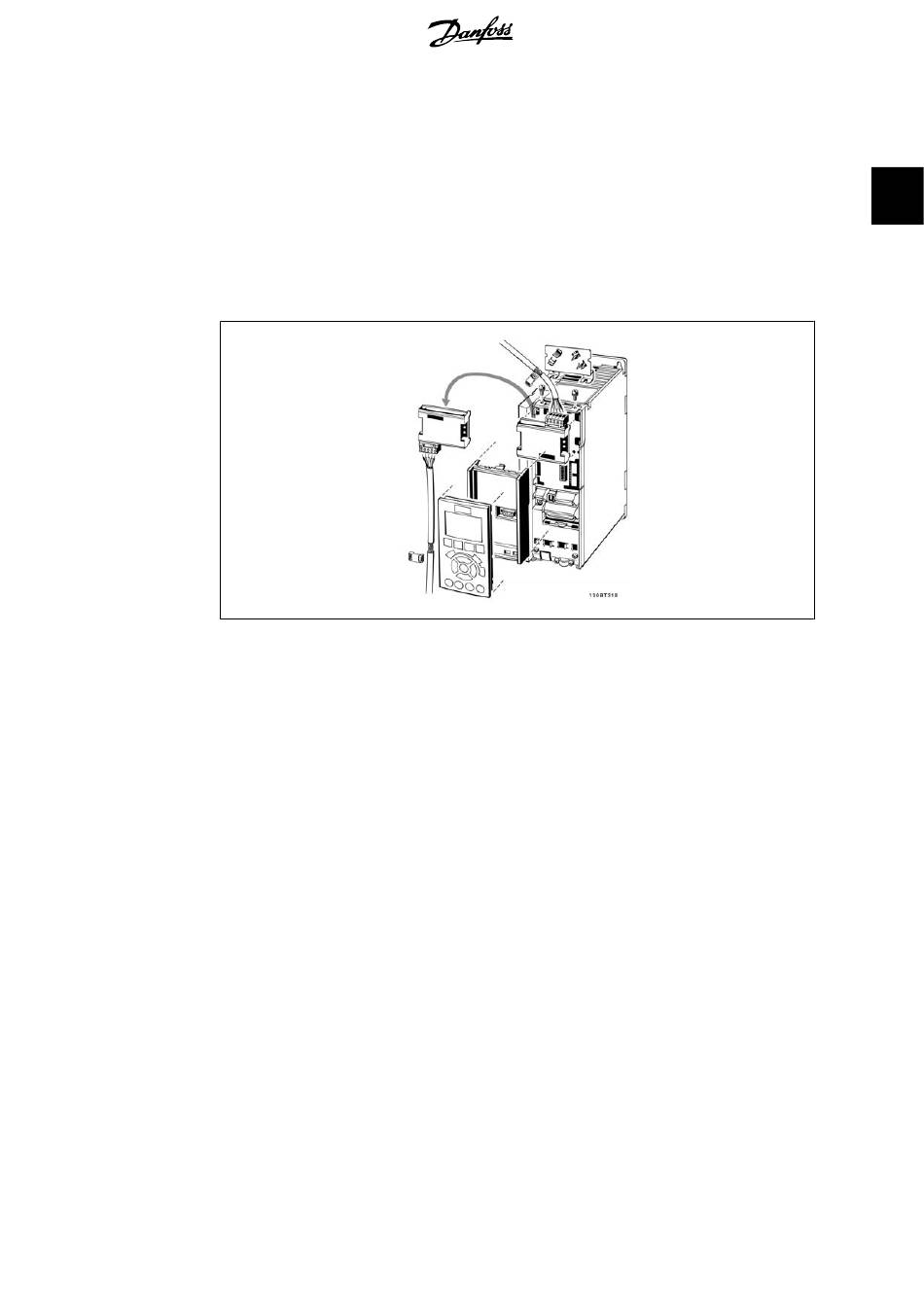

2.2. Installation of Option in the Frequency

To install a fieldbus option in the frequency converter you will need:

Instructions:

The fieldbus option

Fieldbus option adaptor frame for the frequency converter. This frame is deeper than the

standard frame, to allow space for the fieldbus option beneath.

Cable holders

Remove the LCD panel from the frequency converter.

Remove the frame located beneath and discard.

Push the option into place. Two positions are possible, with cable terminal facing either

up or down. The cable up position is often most suitable when several frequency con-

verters are installed side by side in a rack, as this position permits shorter cable lengths.

Push the fieldbus option adaptor frame for the frequency converter into place.

Replace the LCD panel.

Attach cable.

Fasten the cable in place using cable holders. The top surface of the frequency converter

has pre-drilled threaded holes for attaching the cable holders to the unit.

If an option is installed after initial power-up the frequency converter will be tripped and

Option Change

display: Alarm 67

MG.33.D3.02 - VLT

is a registered Danfoss trademark

2. How to Install
