Display Symbols - Phocos Any-Grid Series User And Installation Manual

Up
Down
Enter

Display Symbols

Symbol
Input Information
Settings menu and Fault Information
Output Information
Battery Information
www.phocos.com
To last selection
To next selection
To confirm/enter the selection in setting mode

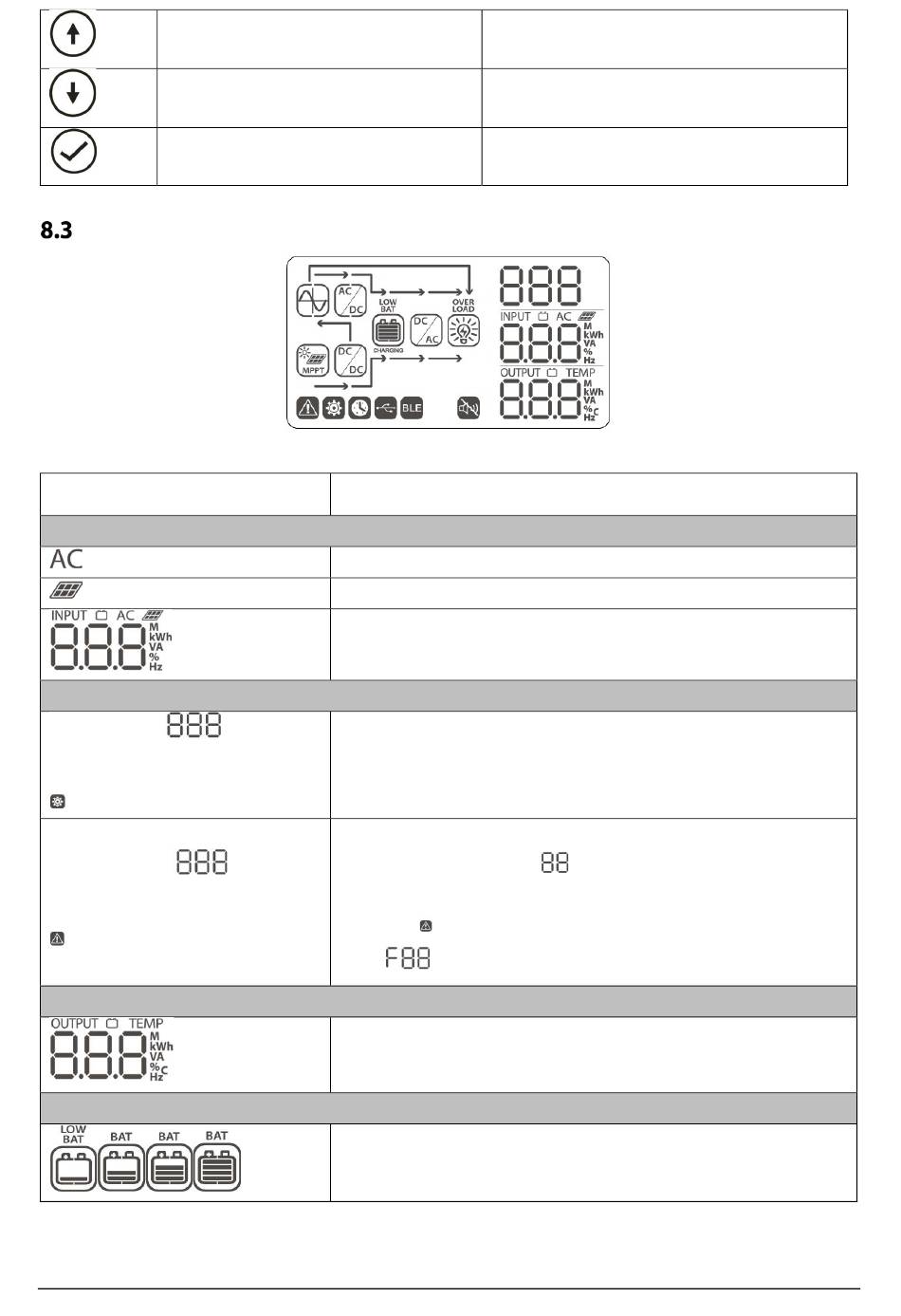

Fig. 20: LC-Display symbols
Description
Indicates AC input
Indicates PV input
Indicates input voltage, input frequency, PV voltage, charging current,
charging power, battery voltage.
Indicates the setting menus
Indicates warning and fault codes.
Warning:
Fault: shown with fault code.
Indicates output voltage, output frequency, load in % of nominal power,
load in VA, load in Watt and discharging current.
Indicates battery level in 0 ~ 24%, 25 ~ 49%, 50 ~ 74% and 75 ~ 100%
(left to right) increments.
flashing with warning code.
19 | P a g e
