Phocos Any-Grid Series User And Installation Manual page 40
Pure sine wave hybrid inverter charger with mppt solar charge controller
Hide thumbs
Also See for Any-Grid Series:
- User and installation manual (58 pages) ,
- Settings manual (7 pages) ,
- Recommended battery settings manual (7 pages)
Table of Contents
Advertisement

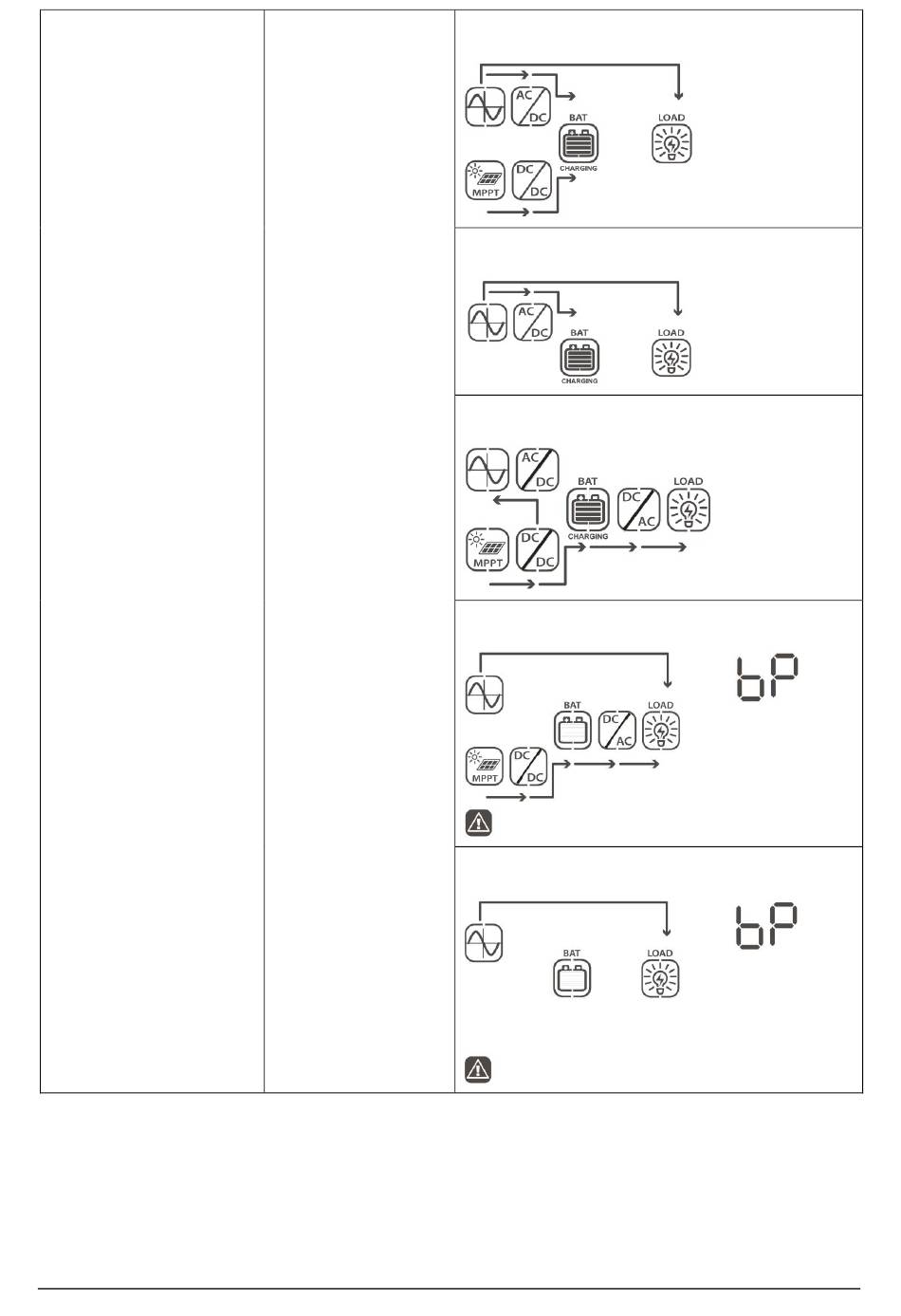

Grid mode
www.phocos.com
AC output power is fully
sourced from the AC
input (by-pass), battery
charging is available
Battery is charged and AC loads are powered by AC
source and solar power
Battery is charged and AC loads are powered by an AC
source
Battery is charged and AC loads are powered by the
grid and excess power is fed into the grid
No battery connected, solar power and AC source
provide power to AC loads
No battery connected, AC source provides power to AC
loads
39 |
P a g e
