Steps to connect the AC source and AC loads:
1. Remove 10 mm / 0.4 in of insulation from the positive and negative PV cables.
2. Insert the two PV wires through the rectangular casing hole marked "PV input".
3. Insert the positive PV cable into the "PV+" terminal and the negative PV cable into the "PV-" terminal.
CAUTION: Ensure correct polarity.
4. Tighten both terminal screws with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbf⋅ft) and make sure the two wires are
securely connected.
CAUTION: Over-tightening the terminal screws can cause damage to the terminal, under-tightening
can cause a loose connection and excessive heat during operation, make sure to use the prescribed
torque. Ensure none of the cable insulation is jammed between the terminal contacts.

Final Assembly

After Battery, PV and AC wiring is completed, please slide the bottom cover back up on the unit, re-connect the 3
wire harnesses removed in Fig. 3, and secure it by fastening the two screws as shown below.

Remote Display Panel Installation

The display module can optionally be removed and installed in a remote location with an optional communication
cable. Please take the following steps to implement this remote panel installation. Use a standard straight Ethernet
patch cable (Cat5 or higher) with male RJ45 connectors on both sides (not included). A maximum cable length of 20
meters or 66 feet is recommended. Follow the steps below to remove the display module and install it away from the
inverter unit.
www.phocos.com

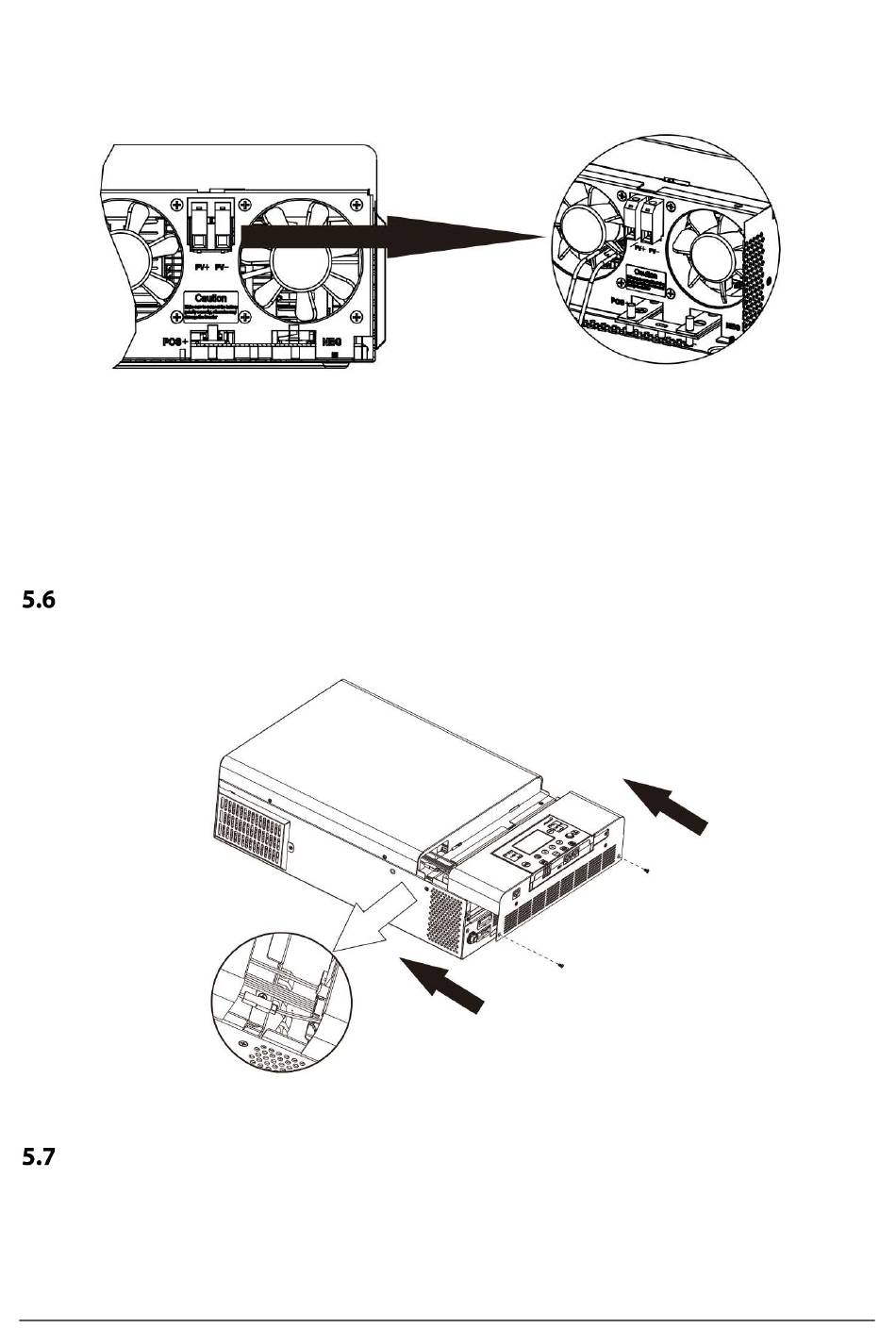

Fig. 9: PV connection
Fig. 10: Re-applying bottom cover
10 | P a g e
