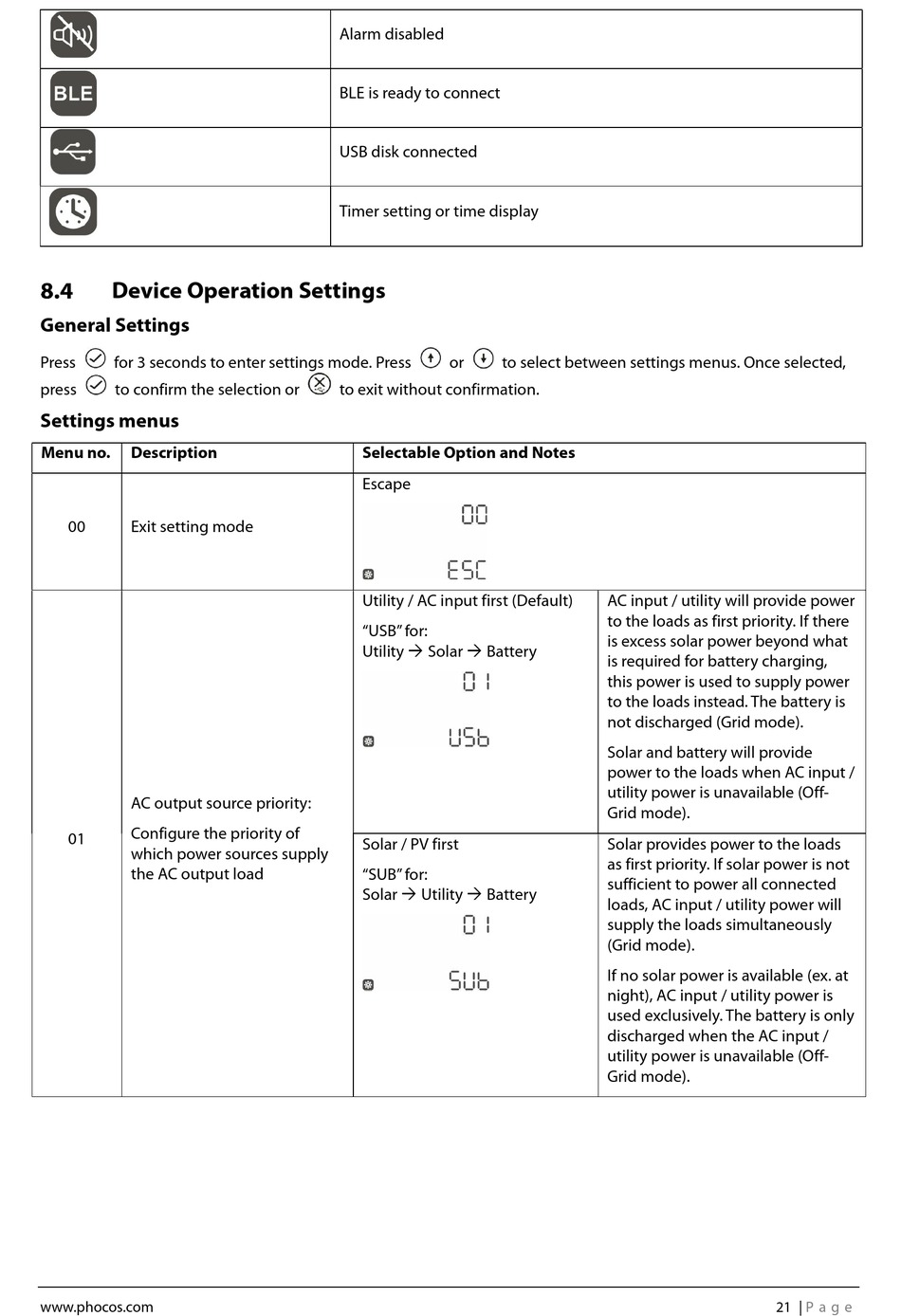

Device Operation Settings

General Settings
Press for 3 seconds to enter settings mode. Press
press to confirm the selection or
Settings menus
Menu no. Description
00 Exit setting mode
AC output source priority:
Configure the priority of
01
which power sources supply
the AC output load
www.phocos.com
Alarm disabled
BLE is ready to connect
USB disk connected
Timer setting or time display
or to select between settings menus. Once selected,
to exit without confirmation.
Selectable Option and Notes
Escape
Utility / AC input first (Default)
"USB" for:
Utility  Solar  Battery
Solar / PV first
"SUB" for:
Solar  Utility  Battery
AC input / utility will provide power
to the loads as first priority. If there
is excess solar power beyond what
is required for battery charging,
this power is used to supply power
to the loads instead. The battery is
not discharged (Grid mode).
Solar and battery will provide
power to the loads when AC input /
utility power is unavailable (Off-
Grid mode).
Solar provides power to the loads
as first priority. If solar power is not
sufficient to power all connected
loads, AC input / utility power will
supply the loads simultaneously
(Grid mode).
If no solar power is available (ex. at
night), AC input / utility power is
used exclusively. The battery is only
discharged when the AC input /
utility power is unavailable (Off-
Grid mode).
