If the "ON/OFF" switch is in the "OFF" position, then the unit will be completely off when there is insufficient sunlight.
If PV modules are connected and there is sufficient PV voltage, the unit and display will wake up automatically to
charge the batteries during the day. Once the PV voltage drops below the threshold, the unit will again turn
completely off to save energy during the night. The AC output and thus the AC loads will remain off as long as the
"ON/OFF" switch is in the "OFF" position.

Display and Control Module

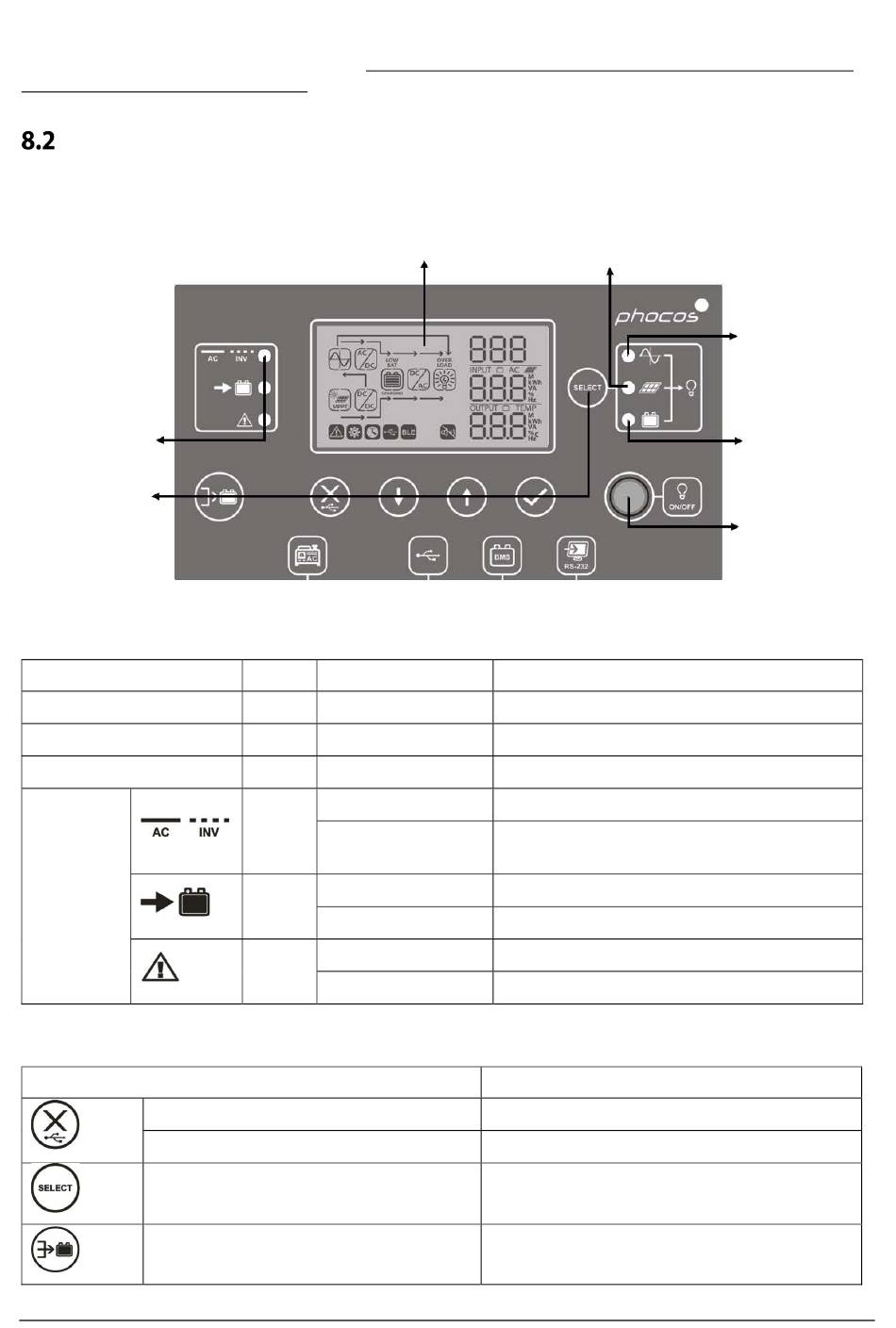

The display and control module, shown in Fig. 19, includes six LED indicators, six function buttons, an ON/OFF
button and a LC-display, indicating the operating status and allowing the programming of settings parameters.
Status
indicators
Function
buttons
Indicator Description
LED Indicator
Source LED 1
Source LED 2
Source LED 3
Status
indicators
Function Buttons
Function Button
Escape / close
USB function setting
Timer setting for AC output source priority
Timer setting for the battery charger source
priority
www.phocos.com
LC-Display
Fig. 19: Display module buttons and indicators
Color Solid On / Flashing
Green Solid On
Green Solid On
Green Solid On
Solid On
Green
Flashing
Solid On
Green
Flashing
Solid On
Red
Flashing
Source
LED 2
Description
AC output powered by AC input
AC output powered by PV
AC output powered by battery
AC output powered by AC input (Grid mode)
AC output powered by integrated inverter (Off-
Grid mode)
Battery is fully charged
Battery is charging
Fault mode
Warning mode
Description
Exit settings without confirming
Select USB OTG functions
Setup timer for prioritizing AC output source
Setup timer for prioritizing battery charger source
Source
LED 1
Source
LED 3
Inverter ON/OFF
button
