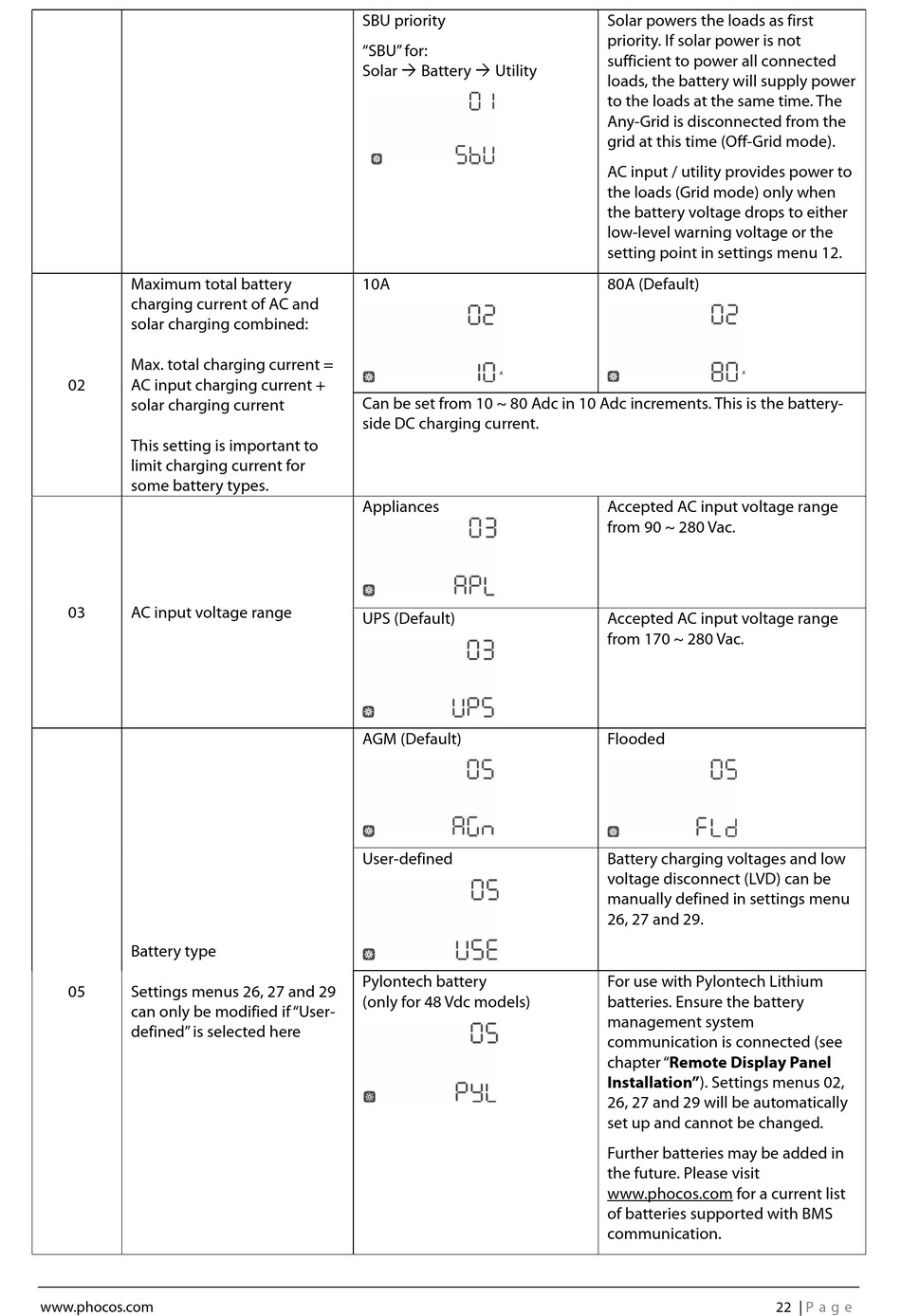

Phocos Any-Grid Series User And Installation Manual page 23

Maximum total battery
charging current of AC and
solar charging combined:
Max. total charging current =
02 AC input charging current +
solar charging current
This setting is important to
limit charging current for
some battery types.
03 AC input voltage range
Battery type
05 Settings menus 26, 27 and 29
can only be modified if "User-
defined" is selected here
www.phocos.com
SBU priority
"SBU" for:
Solar  Battery  Utility
10A
Can be set from 10 ~ 80 Adc in 10 Adc increments. This is the battery-
side DC charging current.
Appliances
UPS (Default)
AGM (Default)
User-defined
Pylontech battery
(only for 48 Vdc models)
Solar powers the loads as first
priority. If solar power is not
sufficient to power all connected
loads, the battery will supply power
to the loads at the same time. The
Any-Grid is disconnected from the
grid at this time (Off-Grid mode).
AC input / utility provides power to
the loads (Grid mode) only when
the battery voltage drops to either
low-level warning voltage or the
setting point in settings menu 12.
80A (Default)
Accepted AC input voltage range
from 90 ~ 280 Vac.
Accepted AC input voltage range
from 170 ~ 280 Vac.
Flooded
Battery charging voltages and low
voltage disconnect (LVD) can be
manually defined in settings menu
26, 27 and 29.
For use with Pylontech Lithium
batteries. Ensure the battery
management system
communication is connected (see
chapter "Remote Display Panel
Installation"). Settings menus 02,
26, 27 and 29 will be automatically
set up and cannot be changed.
Further batteries may be added in
the future. Please visit
www.phocos.com for a current list
of batteries supported with BMS
communication.
22 | P a g e
