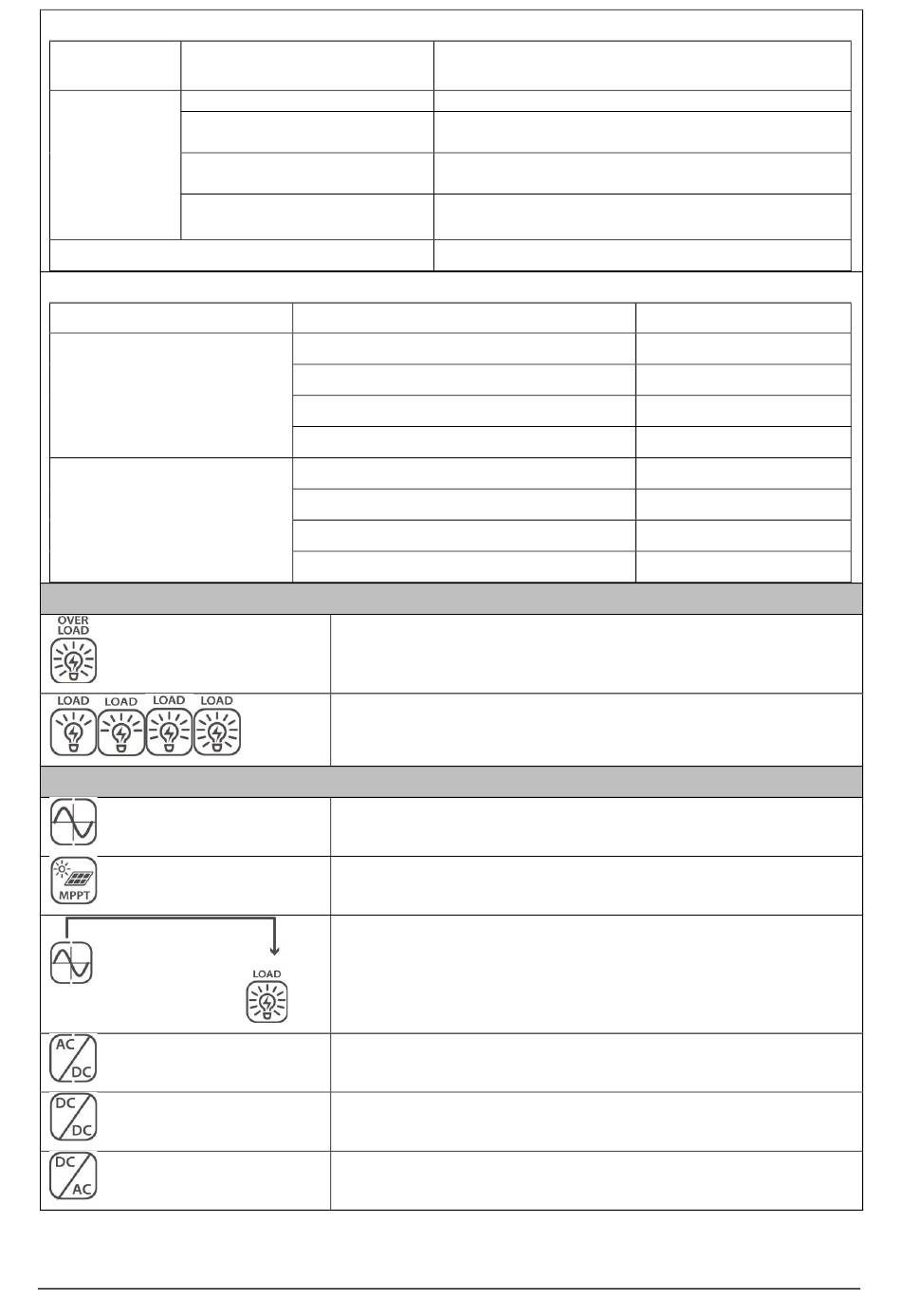

While the battery is charging, the battery indicator shows the following:
Status Battery voltage (48 V model /
24 V model)
< 48 V / < 24 V
All battery
48 ~ 50 V / 24 ~ 25 V
charging
modes except
50 ~ 52 V / 25 ~ 26 V
Floating phase
> 52 V / > 26 V
Floating phase. Batteries are fully charged.
While the battery is discharging, the battery indicator shows the following:
Load Percentage
Load > 50%
Load < 50%
Load Information
Mode Operation Information
www.phocos.com
LCD Display
4 bars flash in turns
Bottom bar constantly on and other three bars flash in
turns
Bottom two bars constantly on and other two bars flash
in turns
Bottom three bars constantly on and top bar flashes
4 bars constantly on
Battery voltage (48 V model / 24 V model)
< 44.4 / < 22.2 V
44.4 ~ 46.4 V / 22.2 ~ 23.2 V
46.4 ~ 48.4 V / 23.2 ~ 24.2 V
> 48.4 V / > 24.2 V
< 45.4 / 22.7 V
45.4 ~ 47.4 V / 22.7 ~ 23.7 V
47.4 ~ 49.4 V / 23.7 ~ 24.7 V
> 49.4 V / > 24.7 V
Indicates overload
Indicates load level by 0 ~ 24%, 25 ~ 49%, 50 ~ 74% and 75 ~ 100%
(left to right) increments.
Constantly on: AC source valid
Blinking: AC source present but rejected
PV input valid
Load supplied by AC input
AC source charger circuit is active
PV charger circuit is active
DC to AC inverter circuit is active
LC-Display
0 ~ 24%
25 ~ 49%
50 ~ 74%
75 ~ 100%
0 ~ 24%
25 ~ 49%
50 ~ 74%
75 ~ 100%
