AC Input and AC Output Connection

WARNING: Before connecting an AC source to the AC input of the Any-Grid, install an AC circuit breaker
between the Any-Grid and AC input power source. This will ensure the inverter can be securely disconnected
during maintenance and fully protected from over current of AC input. Make sure the breaker is open / off for
the rest of the installation procedure until instructed otherwise.
WARNING: Ensure that the installation has adequate grounding and connect the protective earth (PE)
terminals to this ground as instructed below. Failure to do so can cause serious injury or death once the unit is
powered up or the AC source is activated via its breaker.
WARNING: Ensure the AC cables are sized according to the table below. Inadequate AC cables can cause
excessive heat or fire during operation.
CAUTION: Do not connect an AC source to the "AC OUTPUT" labelled terminal of the unit as this will destroy
the unit. Only connect it to the "AC INPUT" labeled terminal.
Recommended AC cable cross-section and AC circuit breaker rating:
Any-Grid model
AC input and output cable cross-section
Circuit breaker rating
Steps to connect the AC source and AC loads:
1.
WARNING: Ensure the battery cable fuse is removed or breaker is secured in the open position.
WARNING: Ensure the AC source breaker is secured in the open position and there is no voltage on the
conductors before continuing.
2. Remove 10 mm / 0.4 in of insulation for the six AC conductors (neutral "N", live "L" and protective earth "PE"
for the AC source and loads).
3. Insert the three AC source wires through the rectangular casing hole marked "AC INPUT". Insert the "PE"
protective conductor
with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbf⋅ft). Repeat for the neutral "N" and live "L" conductors.
4. Insert the three AC load wires through the rectangular casing hole marked "AC OUTPUT". Insert the "PE"
protective conductor
with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbf⋅ft). Repeat for the neutral "N" and live "L" conductors.
www.phocos.com
PSW-H-5KW-230/48V
40 Aac, min. 280 Vac
first into the corresponding AC input terminal and tighten that terminal screw

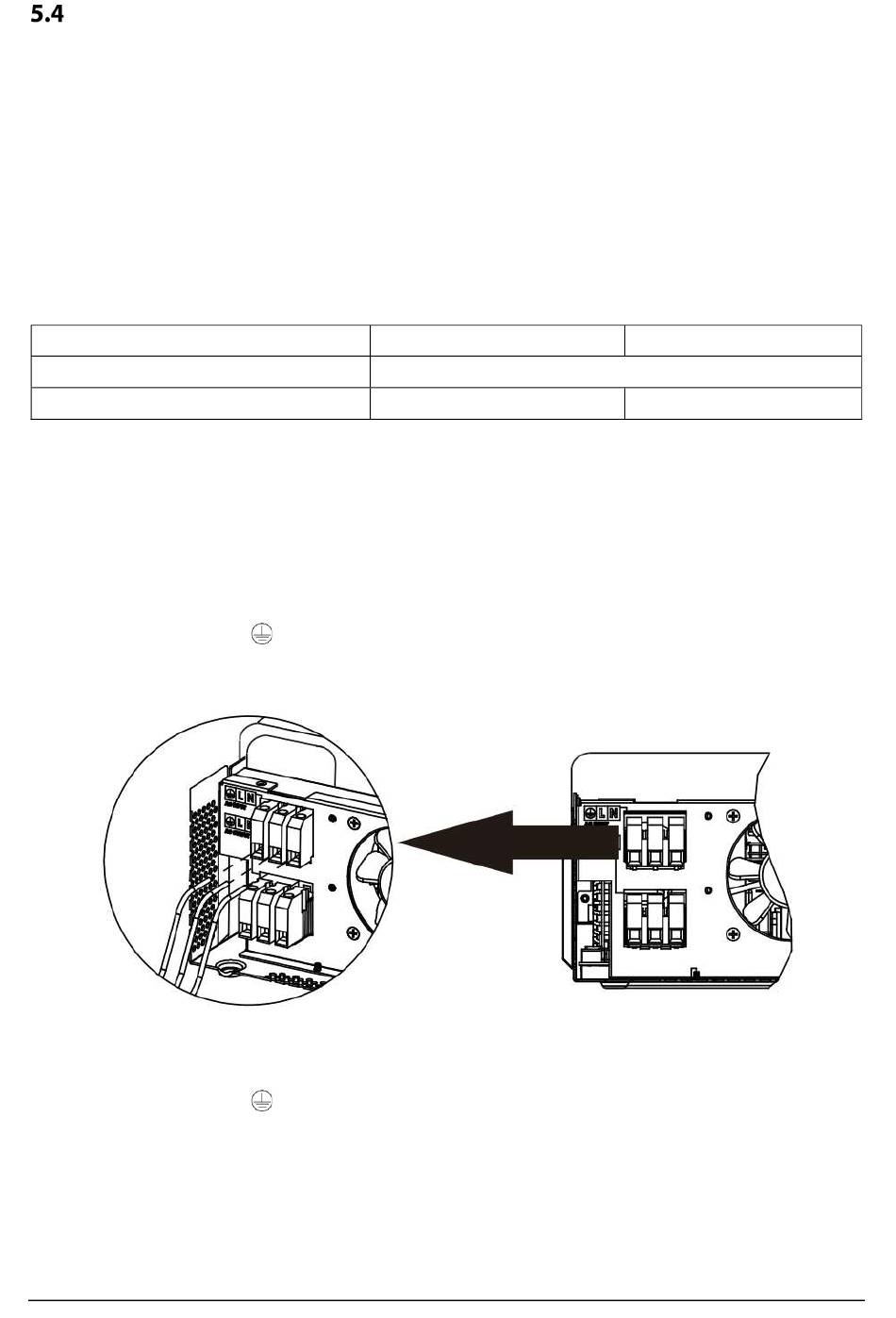

Fig. 7: AC input connection
first into the corresponding AC output terminal and tighten that terminal screw
PSW-H-3KW-230/24V
4 ~ 10 mm², AWG 7 ~ AWG 11
30 Aac, min. 280 Vac
