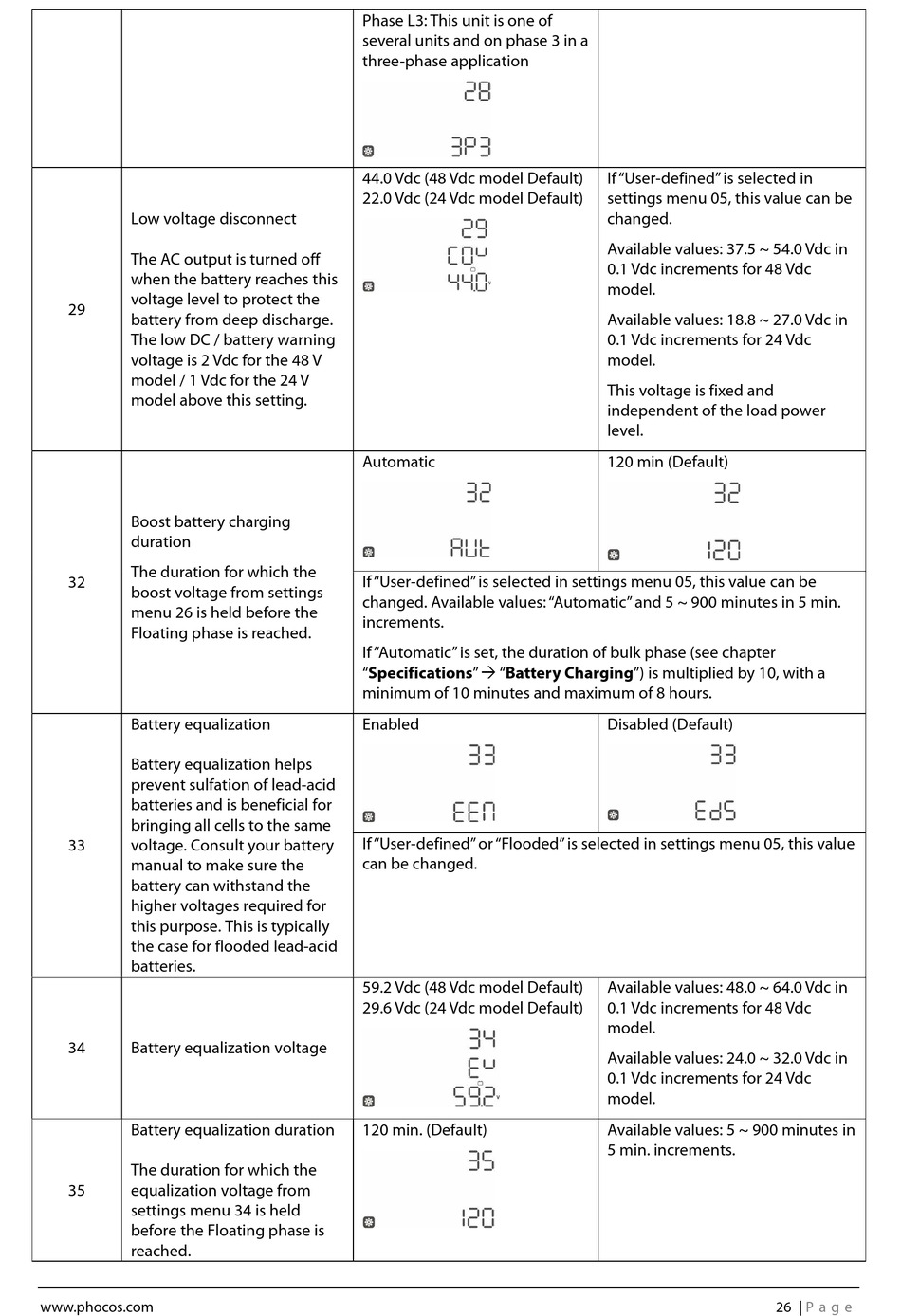

Low voltage disconnect
The AC output is turned off
when the battery reaches this
voltage level to protect the
29
battery from deep discharge.
The low DC / battery warning
voltage is 2 Vdc for the 48 V
model / 1 Vdc for the 24 V
model above this setting.
Boost battery charging
duration
The duration for which the
32
boost voltage from settings
menu 26 is held before the
Floating phase is reached.
Battery equalization
Battery equalization helps
prevent sulfation of lead-acid
batteries and is beneficial for
bringing all cells to the same
33 voltage. Consult your battery
manual to make sure the
battery can withstand the
higher voltages required for
this purpose. This is typically
the case for flooded lead-acid
batteries.
34 Battery equalization voltage
Battery equalization duration
The duration for which the
35 equalization voltage from
settings menu 34 is held
before the Floating phase is
reached.
www.phocos.com
Phase L3: This unit is one of
several units and on phase 3 in a
three-phase application
44.0 Vdc (48 Vdc model Default)
22.0 Vdc (24 Vdc model Default)
Automatic
If "User-defined" is selected in settings menu 05, this value can be
changed. Available values: "Automatic" and 5 ~ 900 minutes in 5 min.
increments.
If "Automatic" is set, the duration of bulk phase (see chapter
"Specifications"  "Battery Charging") is multiplied by 10, with a
minimum of 10 minutes and maximum of 8 hours.
Enabled
If "User-defined" or "Flooded" is selected in settings menu 05, this value
can be changed.
59.2 Vdc (48 Vdc model Default)
29.6 Vdc (24 Vdc model Default)
120 min. (Default)
If "User-defined" is selected in
settings menu 05, this value can be
changed.
Available values: 37.5 ~ 54.0 Vdc in
0.1 Vdc increments for 48 Vdc
model.
Available values: 18.8 ~ 27.0 Vdc in
0.1 Vdc increments for 24 Vdc
model.
This voltage is fixed and
independent of the load power
level.
120 min (Default)
Disabled (Default)
Available values: 48.0 ~ 64.0 Vdc in
0.1 Vdc increments for 48 Vdc
model.
Available values: 24.0 ~ 32.0 Vdc in
0.1 Vdc increments for 24 Vdc
model.
Available values: 5 ~ 900 minutes in
5 min. increments.
