Front Panel Overview

1

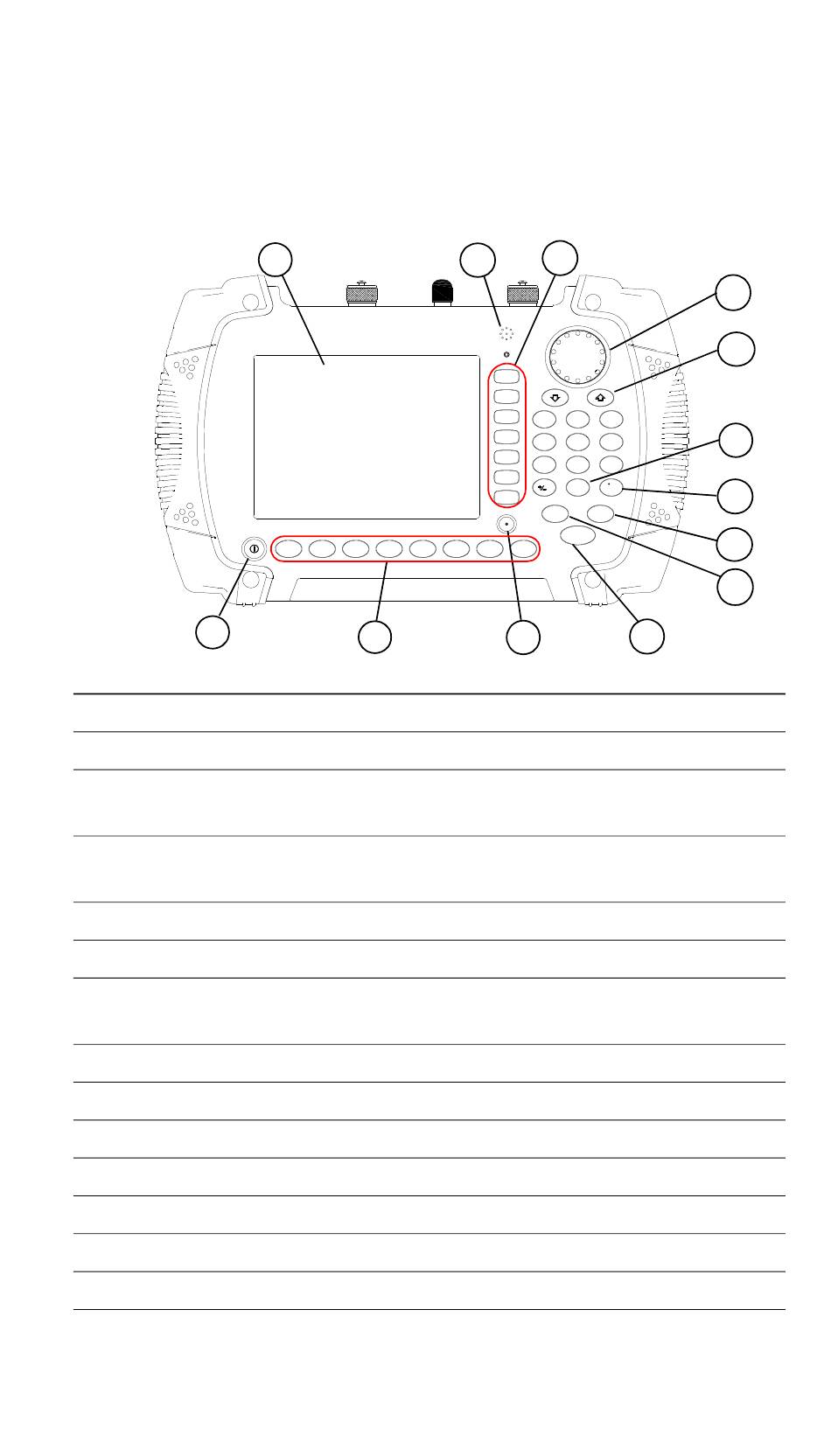

Caption
1 Power Switch
2 Function keys
3 Preset
4 Enter
5 MARKER
6 ESC/CLR
7 LIMIT
8 Save
9 Arrow keys
10 Knob
11 Softkeys
12 Speaker
13 Screen
13
N9340B
100 kHz - 3.0 GHz
HANDHELD SPECTRUM ANALYZER
BW /
SYS M ODE M EAS TRACE
SW P
2
Function
Toggles the analyzer between on and off
Includes hardkeys: SYS, FREQ, SPAN, AMPTD,
BW/SWP, TRACE, MEAS, and MODE
Returns the analyzer to a known state, also turns
on/off power save feature (press for 1 sec.)
Confirms a parameter selection or configuration
Activates the marker function
Exits and closes the dialog box or clears the
character input
Sets limit lines for quick Pass/Fail judgement
Quick saves the current screen/trace
Increases or decreases a parameter step by step
Selects an mode or edits a numerical parameter
Indicates current menu functions on the LCD
Actives in demodulation mode
Displays measured traces and status
