11. PARTS LIST
3

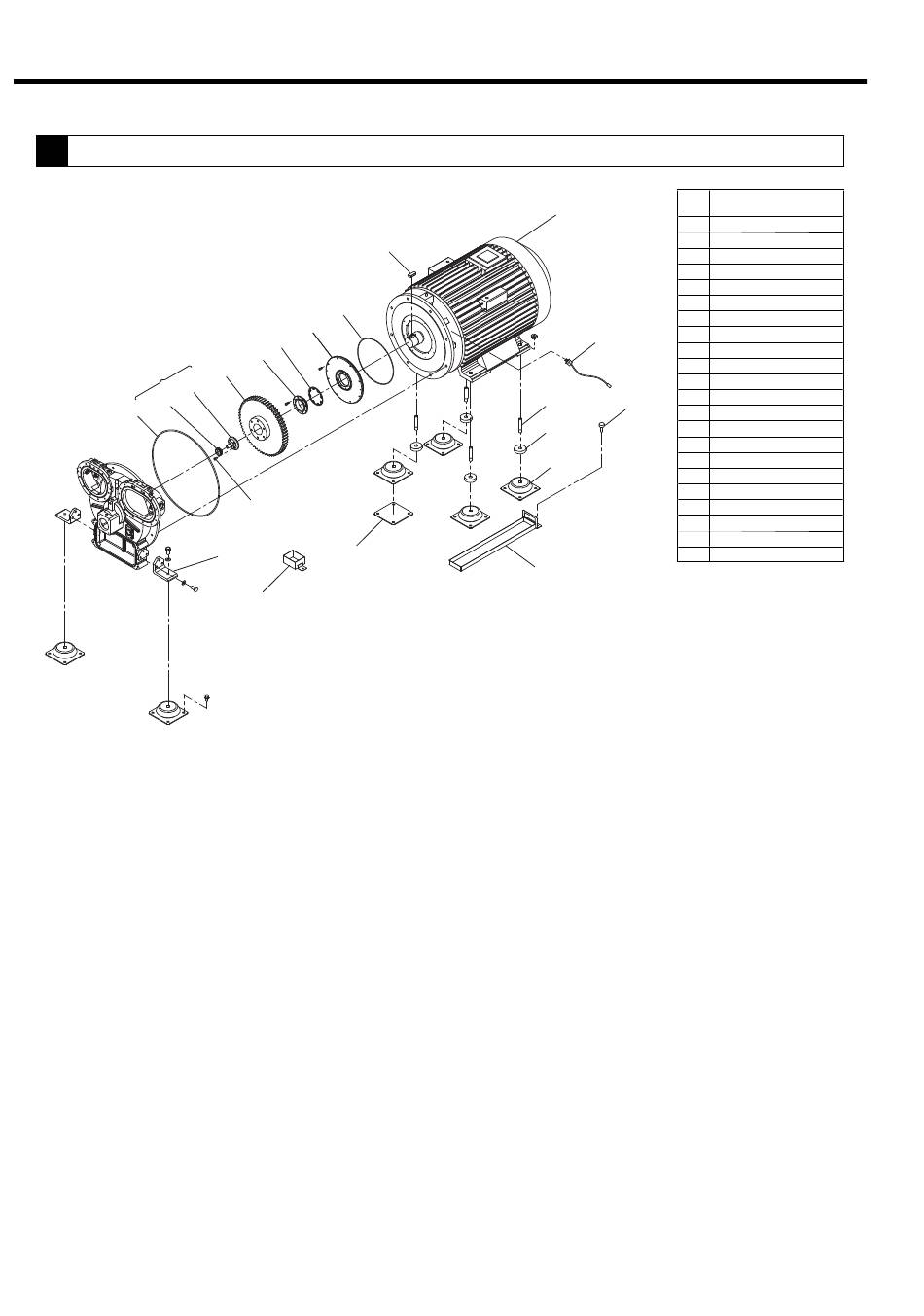

Motor Assembly

302
460
461
306
415
96
340
394
419
393
391
462
H56
426
F73
Ref.
No.
401
302 Pull Gear
453
454 306 Pinion Gear, oil pump
455
340 Key
391 Shaft Seal
393 Gasket, shaft seal
401 Motor
415 O-Ring (motor flange)
419 Cover, shaft seal
J26
425 Vibration Isolation Rubber
426 Support Bolt, gear case
427 Stad Bolt, motor support
428 Spacer
427
H55
453 Bearing (Load-side)
428 454 Bearing (Anti-Load-side)
455 Grease
461 Gear Shaft, oil pump
425
462 M8 Flat Head Bolt
F72 Grease Pan (1)
F73 Grease Pan (2)
H55 Bolt with assistant
H56 Spacer, base
J26 Thermostat
F72
Description
