11. PARTS LIST
5

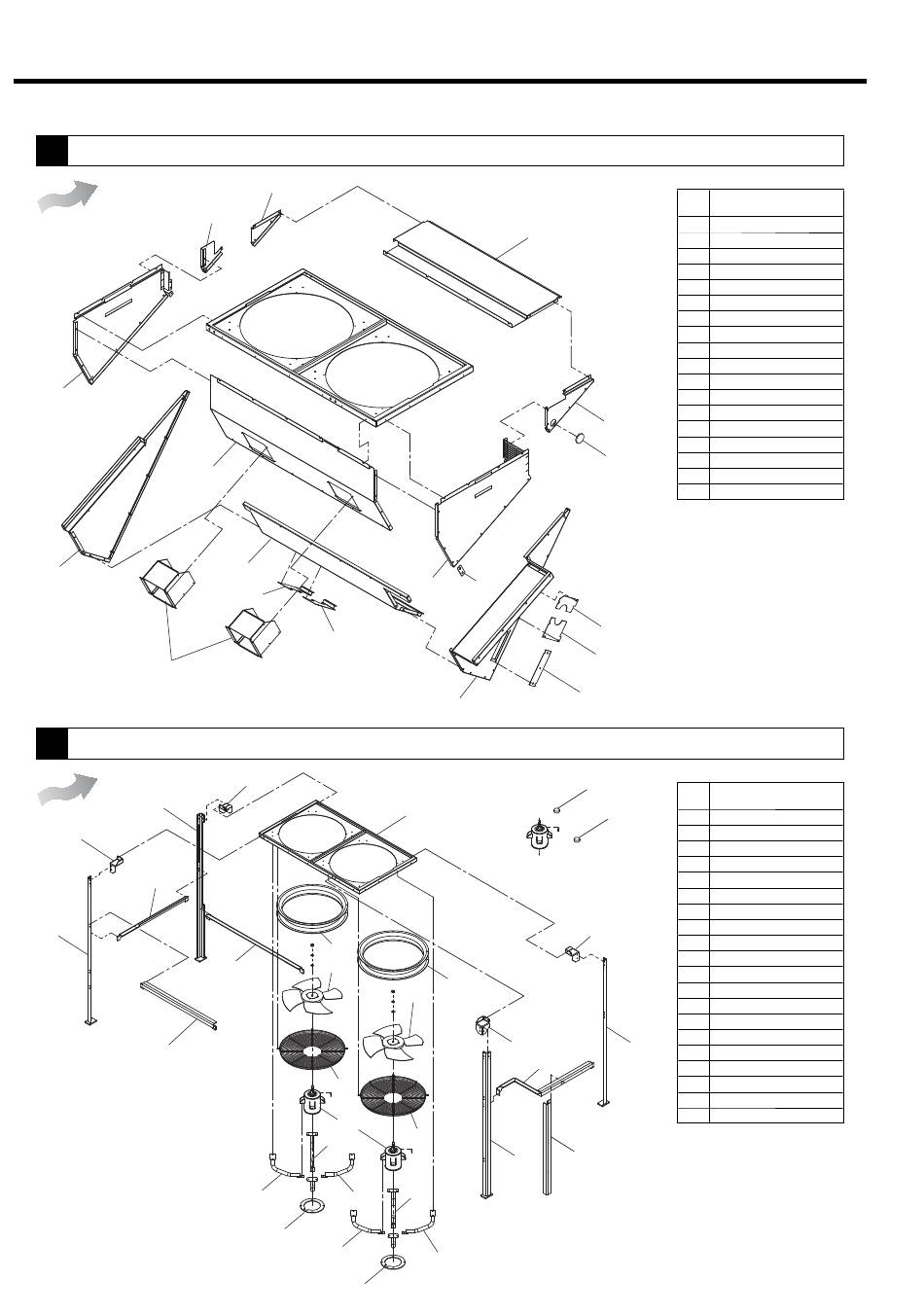

Coolers & Ventilating Fan (1)
Air-Cooled
699
692
693
695
672
5
Coolers & Ventilating Fan (2)
Air-Cooled
663
659
667
661
666
98
685
696
584
585
658
678
679
668
680
681
686
686
686
688
686
688
697
691
589
694
671
678
679
658
664
680
665
662
686
686
Ref.
Description
No.
584 Partition (1)
585 Partition (2)
587 Partition (A)
588 Partition (B)
589 Fix Board
672 Fan Duct, air intake
685 Duct Panel
691 Duct Panel (1)
692 Duct Panel (2)
693 Duct Panel (3)
694 Duct Panel (4)
695 Duct Panel (5)
696 Duct Panel (6)
698
697 Duct Panel (7)
698 Duct Panel (8)
F62
699 Duct Panel (9)
E51 Maintenance Cover
F62 Rubber Bush
588
587
E51
C84
Ref.
Description
No.
C86
658 Duct Support (1)
659 Duct Support (2)
660 Duct Frame
661 Duct Frame (1)
662 Duct Frame (2)
663 Duct Frame (3)
664 Duct Frame (4)
665 Duct Frame (5)
659
666 Duct Frame (6)
667 Duct Frame (7)
668 Duct Frame (8)
671 Duct, air exhaust
678 Bell Mouth
679 lmpeller
680 Protective Cover
660
681 Fan Motor
686 Support, cooling fan
688 Fan Motor Flange
C84 Fan Motor Bearing (DS)
C86 Fan Motor Bearing (OS)
