2. GENERAL DESCRIPTION

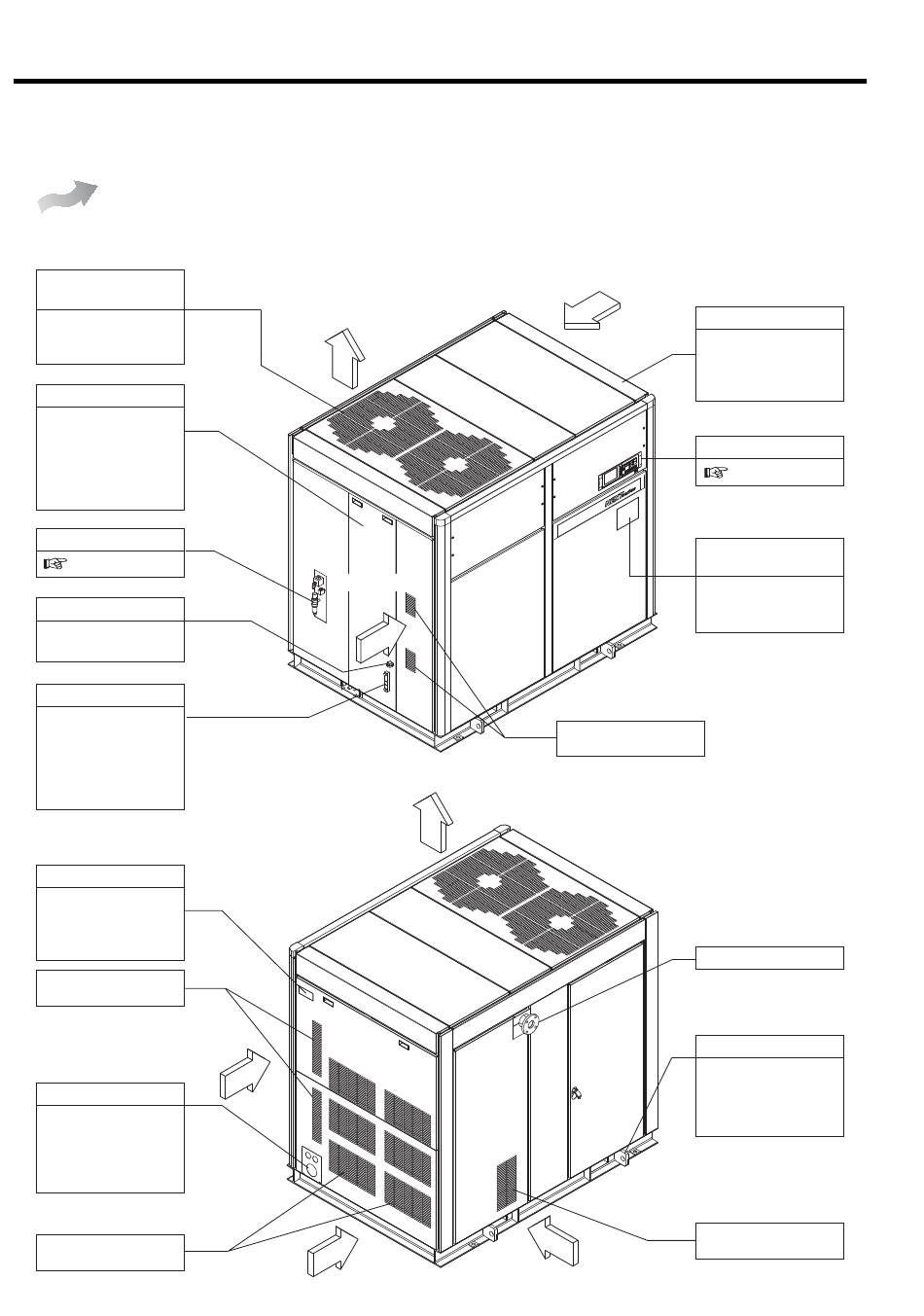

2.1 Appearance

This section illustrates and describes the major components of the DSP air compressor. Be familiar
with the name, location and function of each component before using the DSP air compressor.
DSP- 90/110A6N
Air-Cooled
90/110VA6N
[Front View]
Air Exhaust
(Air Compressor Package)
This panel discharges
the hot air generated
in the air compressor.
Left Door
Open the left door only
when servicing the
DSP air compressor.
Keep it closed when
operating the DSP air
compressor.
OMR
8.5 for the details
Oil Filling Port
Use the port to fill the
gear case with oil.
Oil Level Gauge
T h i s i n d i c a t e s t h e
quantity of the oil in
the gear case. Check
the oil level before
starting the DSP and
when operating it.
[Rear View]
Compressor Name plate
M o d e l d e s i g n a t i o n ,
manufacturing number
and specification are
printed.
Air Intake
(Air for inverter)
Air Intake
Power Supply Port
Check the specifica-
tions, power supply
and voltage before
connecting the power
supply.
Air Intake
(Air for coolers)
6
Air Exhaust
Air Intake
Air Exhaust
Air Intake
Air Intake
Enclosure
E n c l o s u r e p a n e l s
lower the sound level
of the air compressor
package.
Instrument Panel
Plate of Operating /
Servicing Instructions
Read carefully the
plate before operating
and servicing the DSP.
Air Intake
(Inlet to the Air End)
Compressed Air Discharge
Sling Fitting
Use the sling fitting
w h e n m o v i n g a n d
installing the DSP air
compressor.
Air Intake
(Air Compressor Package)
Air Intake
3.1
