6
Oil Pump
362
329
328
7
Instrument Panel
Display unit Asse'y
(included #745 starter panel
PCB Asse'y )
H99
H39
H43
300 Consumable Parts Kit, oil pump
345
356
342
719
744
H81
748
H80
327
363
378
G57
H79
755
746
H82

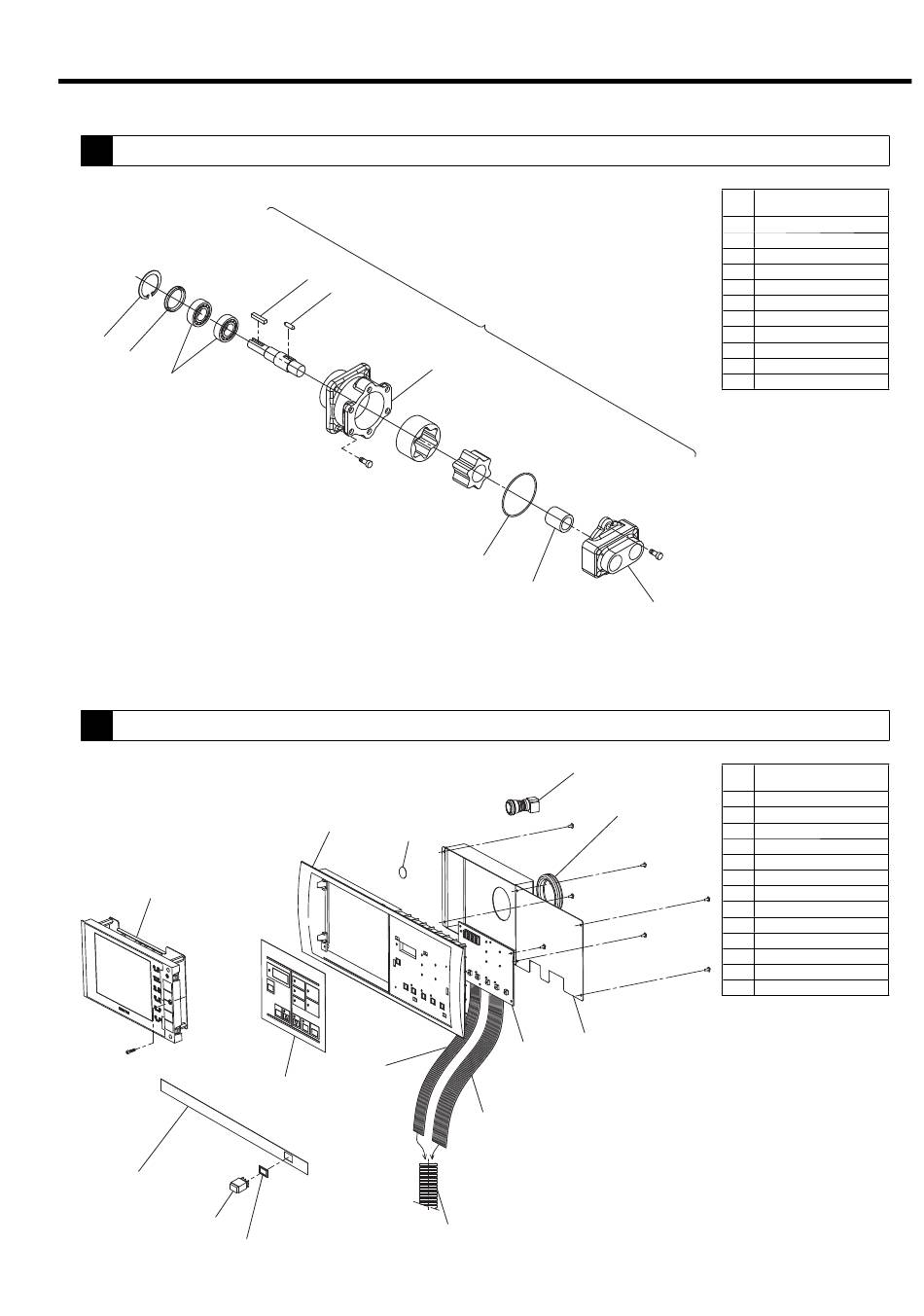

11. PARTS LIST
Ref.
Description
No.
300 Consumable Parts Kit, oil pump
327 Oil Pump Assembly
328 Bearing
329 Oil Seal
342 Oil Pump body
343 Housing, oil pump bearing
345 Key
356 Key
362 Snap Ring
363 O-Ring
378 Bush Bearing
343
Ref.
Description
No.
719 Digital Panel
744 Lithium Battery
746 Control PCB
748 Instrument panel
755 Display Unit
G57 E-Stop
H39 PCB Cover
H43 UNLOAD STOP Button
H79 Switch Guard
H80 OPE Code Pipe
H81 OPE Code (1)
H82 OPE Code (2)
H99 Unload Stop Nameplate
101
