Hitachi NEXT Series Instruction Manual page 101

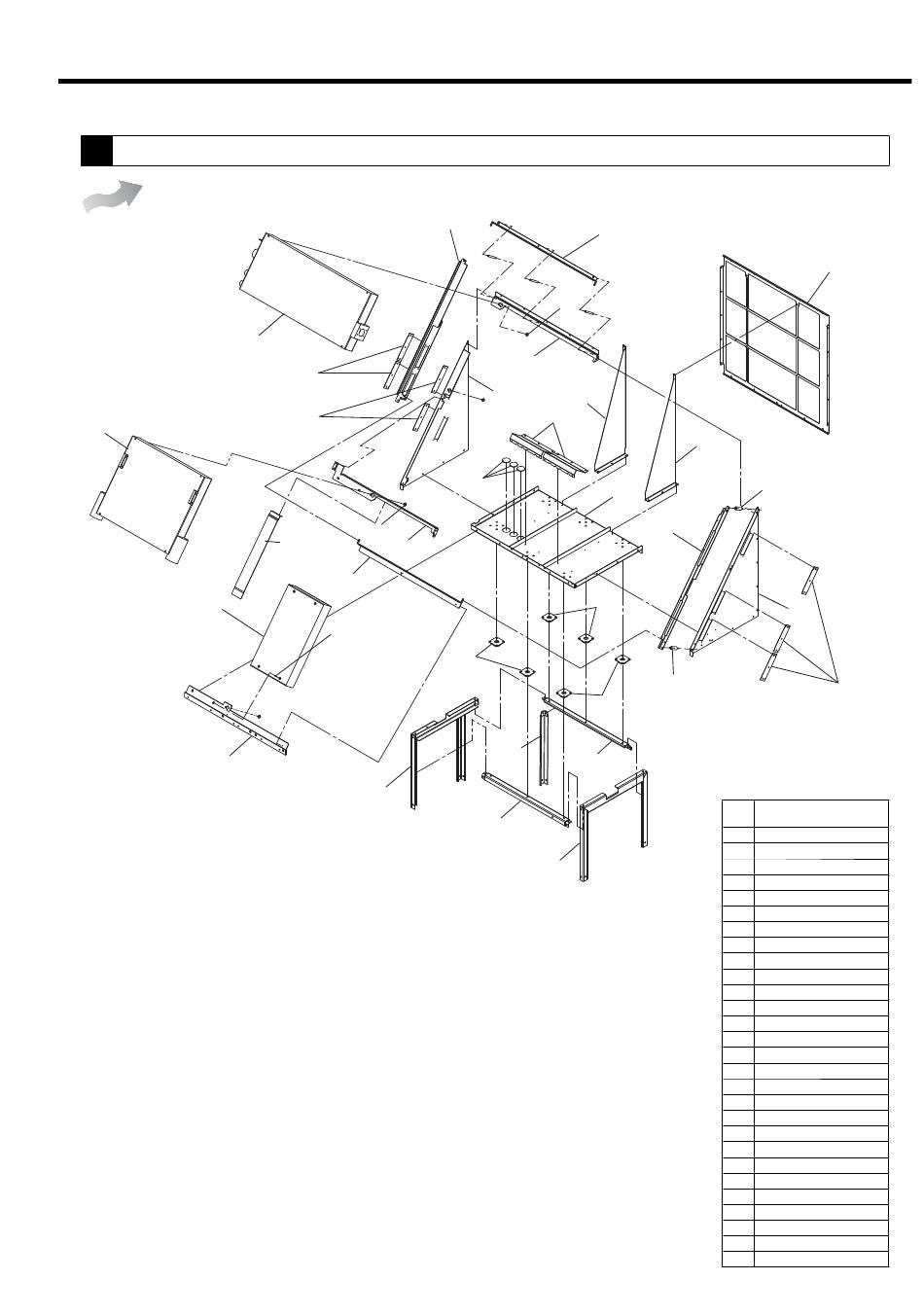

5 Coolers & Ventilating Fan (3)
Air-Cooled
608
623
639
646
650
E52
E52
H84
653
647
(90/100kW only)
652
H86
F47
631
651
H84
645
644
648
E53
F63
628
F47
F47
635
634
633
630
11. PARTS LIST
642
648
H85
649
643
H85
Ref.
Description
No.
608 Aftercooler
623 Intercooler
628 Support
630 Support (1), base frame
631 Support (2), base frame
633 Support (3), base frame
634 Support (4), base frame
635 Support (5), base frame
639 Oil cooler
642 Duct Panel (2)
643 Duct Panel (3)
644 Duct Panel (4)
645 Duct Panel (5)
646 Duct Panel (6)
647 Duct Panel (7)
648 Duct Panel (8)
649 Duct Panel (9)
650 Duct Panel (10)
651 Duct Panel (11)
652 Duct Panel (12)
653 Cover Plate
E52 Maintenance Cover
E53 Current Plate
F47 Vibration Isolation Rubber
F63 Rubber Bush
H84 Cooler Bolt
H85 Support, cooler bolt
H86 Oil Cooler Stud
E52
99
