1. SAFETY PRECAUTIONS

To ensure safe and proper operation of the air compressor, it is indispensable to carefully
read and understand the following warnings and instructions detailed below. These

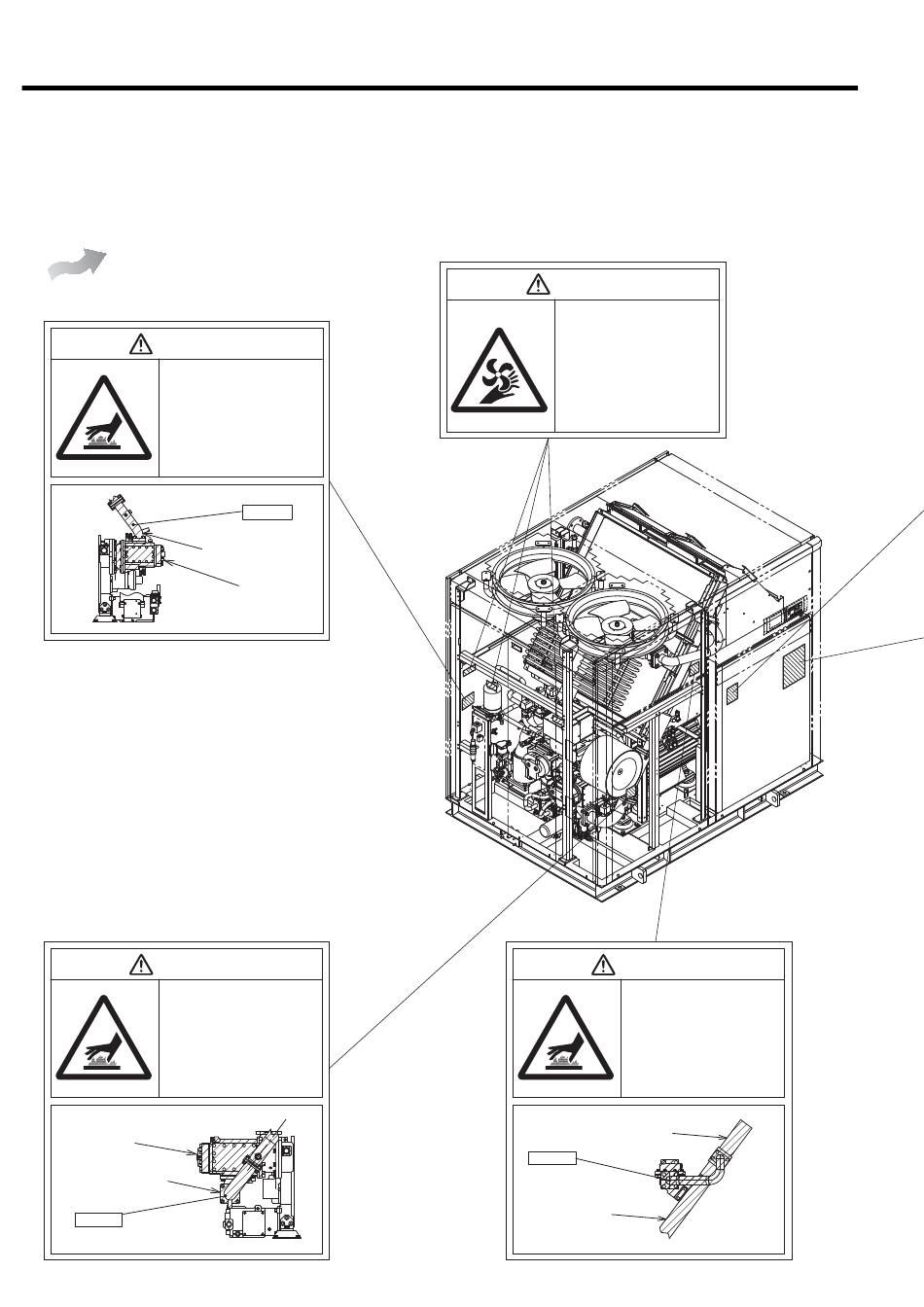

warnings and instructions are attached to the air compressor as shown in the figure
below.
Air-Cooled
DSP- 90/110A6N
90/110VA6N
WARNING
Hot Surface!
●Do not directly touch any component
inside the air compressor enclosure
when the air compressor is operating
or immediately after it has stopped,
as the components are extremely hot
and can cause severe injury.
●Before servicing the air compressor,
stop it, disconnect the power, then
wait for the air compressor to cool
down.
Discharge Air pipe
012B1240
012B1240
013B0816
WARNING
Hot Surface!
●Do not directly touch any component
inside the air compressor enclosure
when the air compressor is operating
or immediately after it has stopped,
as the components are extremely hot
and can cause severe injury.
●Before servicing the air compressor,
stop it, disconnect the power, then
wait for the air compressor to cool
down.
Air End
Discharge Air Pipe
Heated!!
2
Heated!!
Air End
WARNING
Rotating Parts!
●Keep hands and rods, etc. away from
the rotating parts (Cooling fans, etc.)
●Use caution at all times, when air com-
pressor is powered. The air compres-
sor may be capable of restarting with-
out hitting the START button.
●When the air compressor is operating,
do not remove or open the enclosure
panels and doors.
●Before servicing the air compressor,
stop it, disconnect the power, espe-
cially when accessing any rotating parts.
WARNING
Hot Surface!
●Do not directly touch any component
inside the air compressor enclosure
when the air compressor is operating
or immediately after it has stopped,
as the components are extremely hot
and can cause severe injury.
●Before servicing the air compressor,
stop it, disconnect the power, then
wait for the air compressor to cool
down.
Aftercooler
Heated!!
Intercooler
