Hitachi NEXT Series Instruction Manual page 110

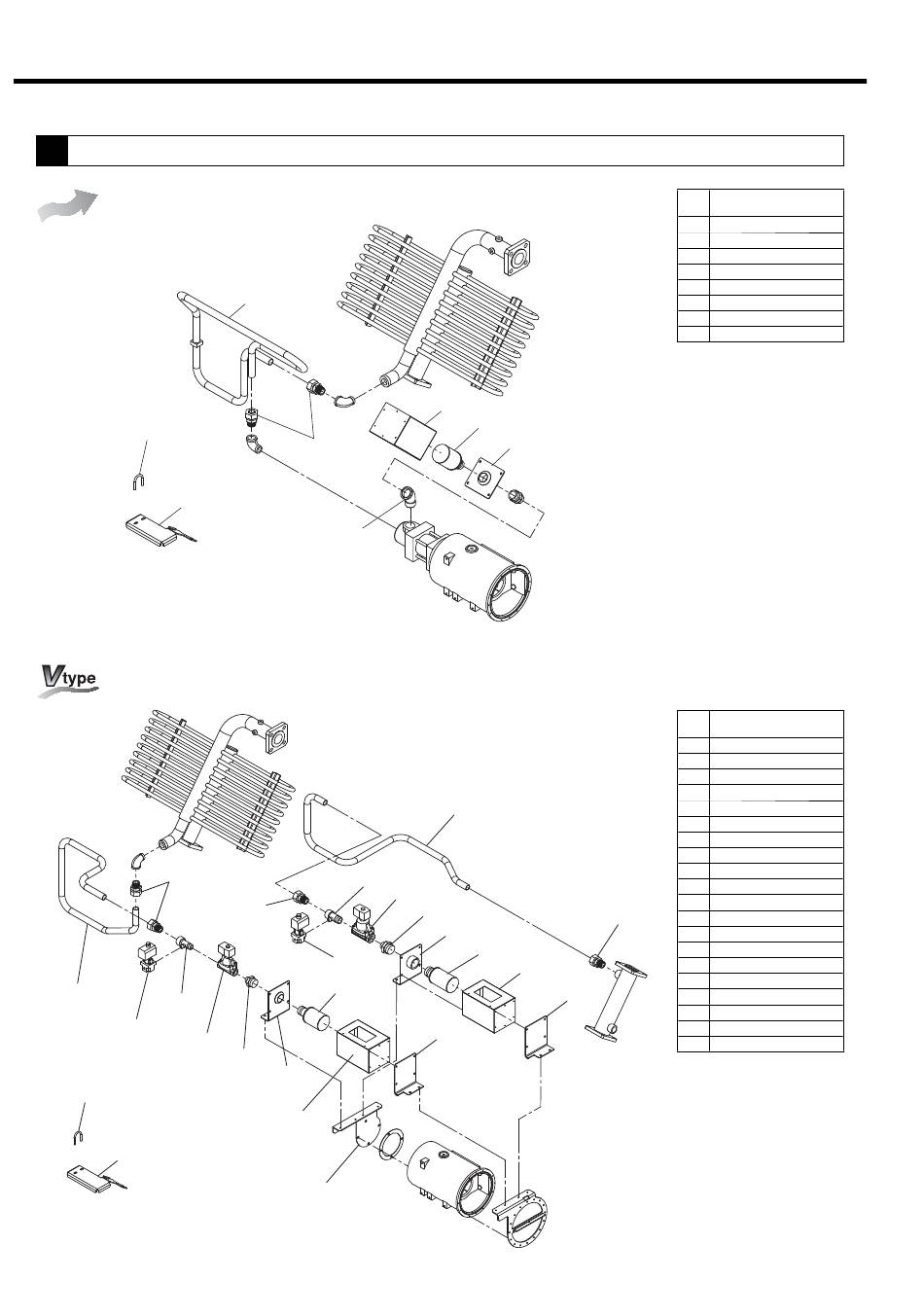

11. PARTS LIST
13 Blowoff Piping
[Fixed speed type]
Air-Cooled
A85
E32
G62
E94
E23
E22
E21
A85
E32
108
E94
A86
A84
D29
E68
G62
E22
900
A87
901
902
E34
902
900
901
E96
A89
E69
E79
E70
E80
E80
Ref.
Description
No.
900 Blowoff Silencer
901 Seat, blowoff silencer
902 Cover, blowoff silencer
A84 Elbow
A85 U-Bolt
A86 Piping Fitting (φ35)
E32 Support, blowoff piping
E94 Blowoff Air Piping (H)
Ref.
Description
No.
900 Blowoff Silencer (H)
901 Seat, blowoff silencer (H)
902 Cover, blowoff silencer (H)
A85 U-Bolt
A87 Nipple (H)
A89 Nipple (L)
D29 Seat (1L), blowoff piping
E21 Blowoff Solenoid Valve (1H)
E22 Blowoff Solenoid Valve (2)
E23 Seat (1H), blowoff piping
E32 Support, blowoff solenoid valve
G62
E34 Closure Cover
E68 Blowoff Solenoid Valve (1L)
E69 Seat, blowoff silencer (L)
E70 Cover, blowoff silencer (L)
E79 Blowoff Silencer (L)
E80 Support, silencer cover
E94 Blowoff Air Piping (H)
E96 Blowoff Air Piping (L)
G62 Piping fitting (φ28)
