Table of Contents

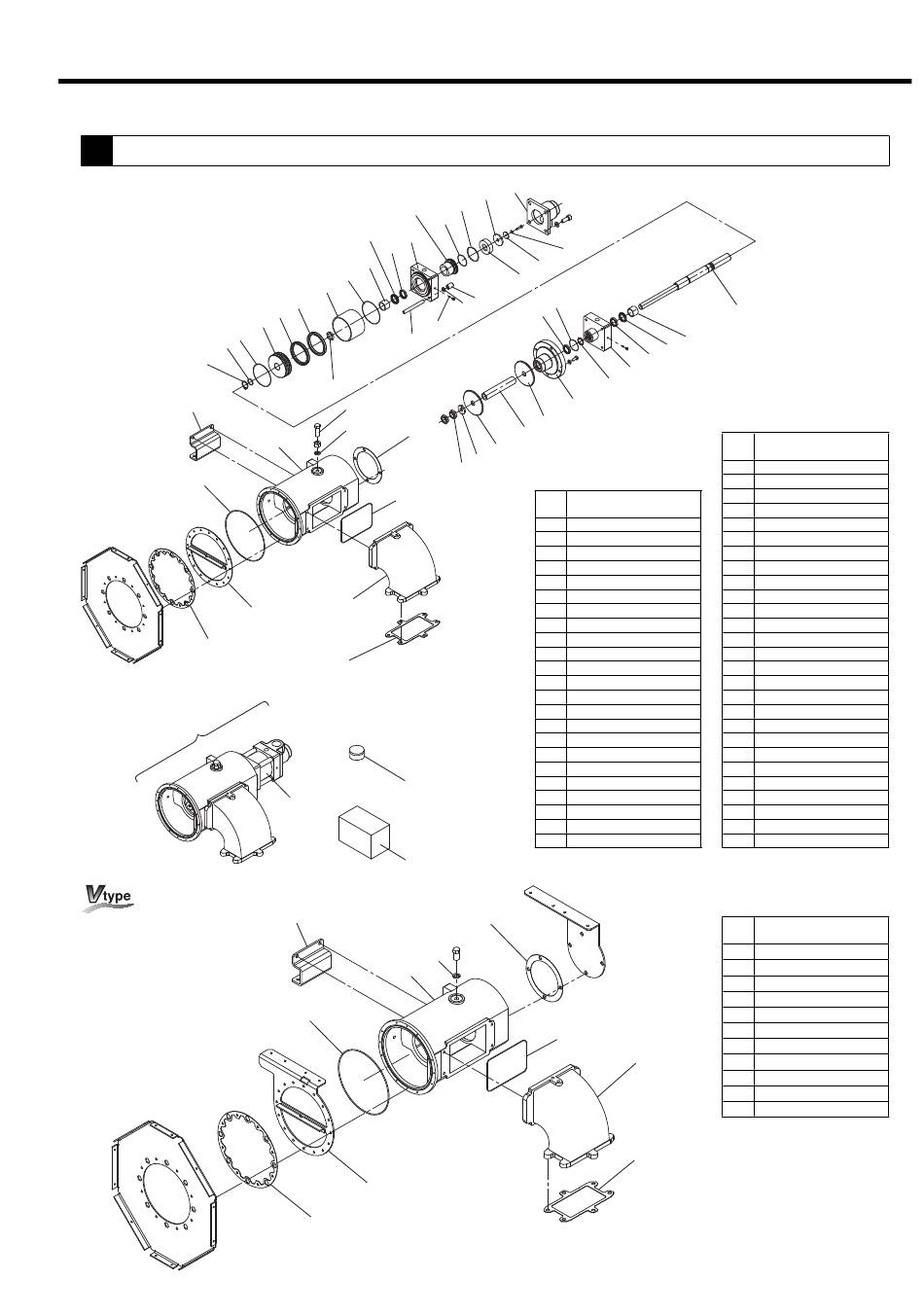

4
Suction
[Fixed speed type]
517
520
537
F27
F42
F46
554
513
500
510
540
519
505
521
522
520
503
518
518
539
525
541
558
559
511
502
555
F44
512
569
501
551
F42
559
502
F46
554
513
532
507
550
534
508
506
535
538
536
515
F28
526
514
542
574
529
530
Ref.
Description
No.
500 Suction Throttle Valve Assembly
501 Air Cylinder Assembly
502 Body, STV
503 Tube, air cylinder
504 Cover (1)
505 Cover (2)
506 Piston, blowoff valve
507 Valve Sheet, blowoff valve piston
508 Plate
509 Spindle, air cylinder
510 Rod Metal
511 Gasket, air cylinder
512 Gasket (1), air end air intake
513 Gasket, STV cover
514 Valve Plate, STV
515 Seal Gasket (1)
516 Seal Gasket (2)
517 Piston, air cylinder
518 Seal Gasket (3)
519 Seal Gasket (4)
520 O-Ring, air cylinder
521 Seal Gasket (5)
522 Bush, air cylinder
511
555
11. PARTS LIST
509
522
516
515
504
Ref.
Description
No.
525 Tying Rod, air cylinder
526 Cover, air cylinder
529 Spring Washer (SUS)
530 Rod Nut
532 Body, blowoff valve
534 Seal Washer, air cylinder
535 Nut
536 Wave Spring
537 O-Ring (piston)
538 O-Ring (spacer)
539 O-Ring (needle)
540 O-Ring (2), air cylinder
541 Holder, piston
542 Spacer
550 O-Ring (1), air cylinder
551 Set of Air Cylinder Consumable Parts
554 Unloader Cover (1)
555 O-Ring, unloader 1
558 Adjusting Bolt, suction bypass valve
559 Seal Washer, suction bypass valve
569 Grease, air cylinder
574 Valve Plate, STV
F27 C-type Snap Ring
F28 Backup Ring
F42 Support Plate, unloader
F44 Air Intake Duct
F46 O-Ring
Ref.
Description
No.
500 Suction Throttle Valve Assembly
502 Body, STV
511 Gasket, air cylinder
512 Gasket, air end air intake
513 Gasket, STV cover
554 Unloader Cover (1)
555 O-Ring
F44
559 Seal Washer
F42 Support Plate, unloader
F44 Air Intake Duct
F46 O-Ring
512
97
